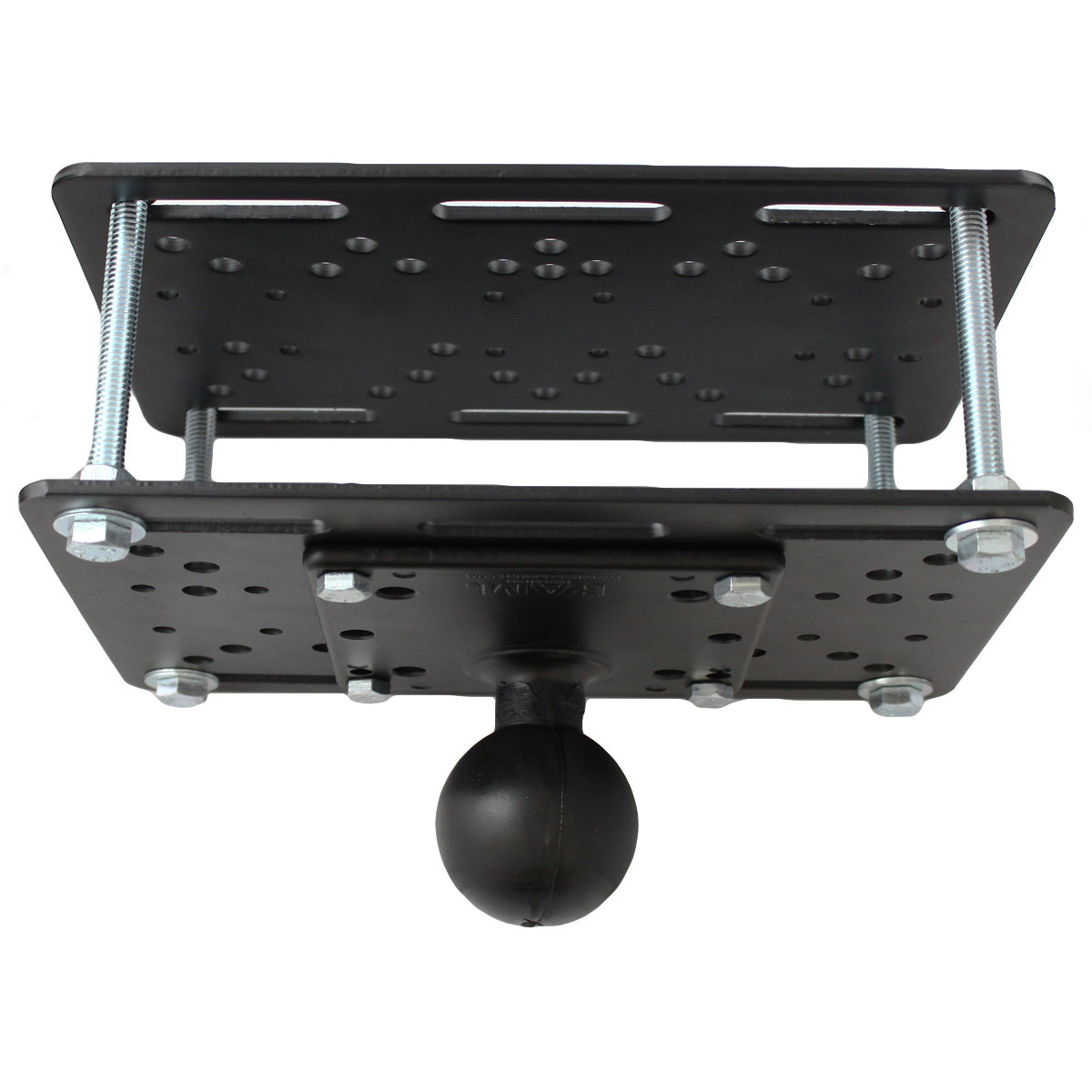

RAM® Lift Truck Overhead Guard Base with Ball - D Size ( RAM-335-D-246)

• Hardware Included: Assembly Hardware, (4) 3/8"-16 x 4" Zinc Hex Bolts, (4) 3/8"-16 Zinc Hex Nuts, (4) 3/8" Zinc Lock Washers, (8) 3/8" Zinc Flat Washers, (4) #10-24 Machine Screws, (4) #10-24 Nylock Nuts
• Hole Pattern: See Drawing
• Ball Size: D Size (2.25")
• Weight Capacity: Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs
• Materials: Powder coated steel, Marine-grade aluminum
• Packaging Type: Box
• Weight: 8.9 lb

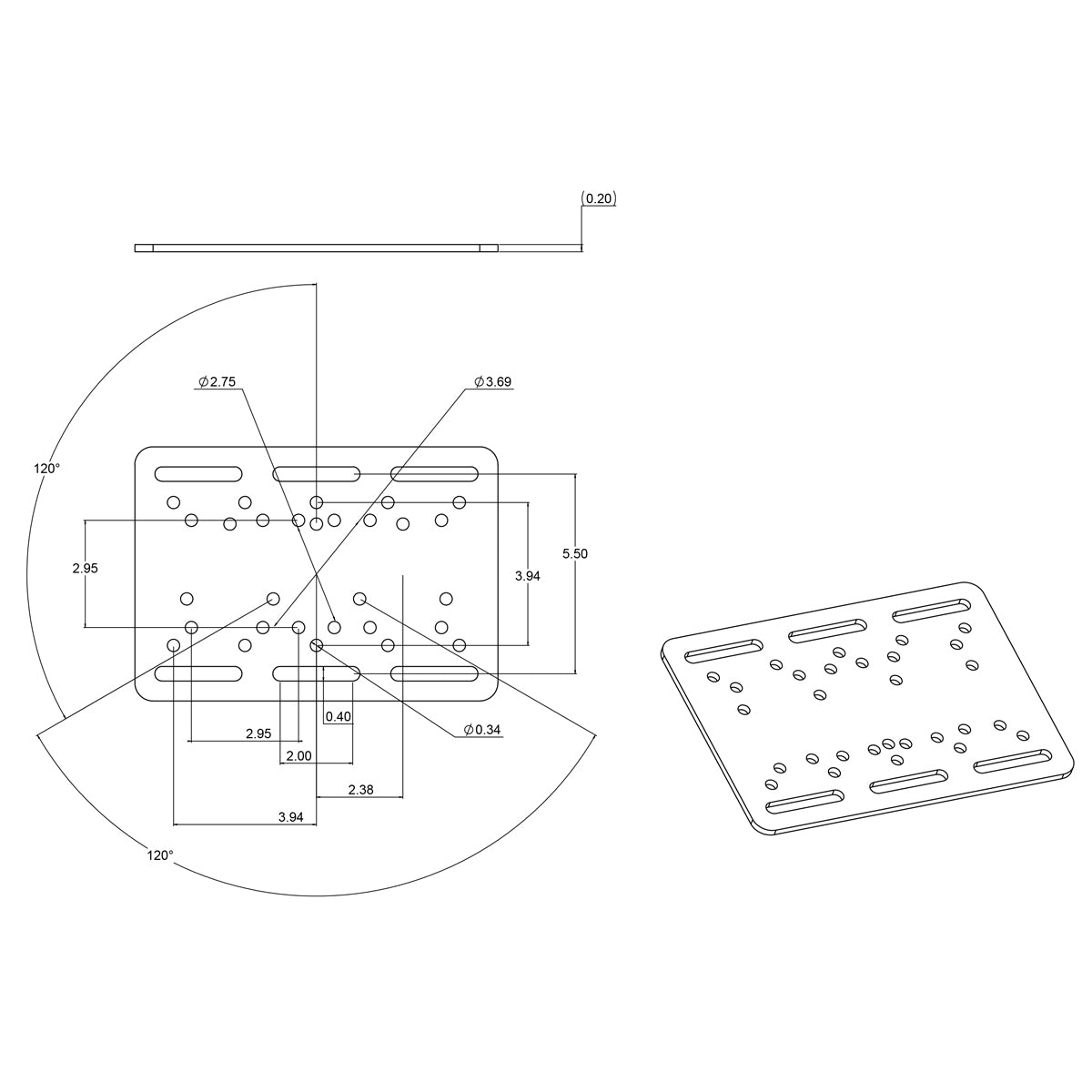

• Overhead Guard Plate Hole Patterns

• 1 x RAM® Lift Truck Overhead Guard Base with Ball - D Size ( RAM-335-D-246)

• Q: What is the overall length and width of the plate??
  A: The mounting plates of the RAM-355-D-246 are 10" by 7".
