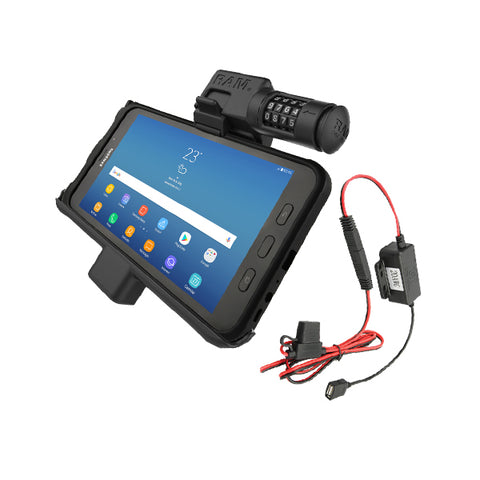

RAM® Powered Samsung Galaxy Tab Active2 Vehicle Cradle with Combination Lock (RAM-HOL-SAM7PCL-HARU)

RAM® Powered Samsung Galaxy Tab Active2 Vehicle Cradle with Combination Lock (RAM-HOL-SAM7PCL-HARU)

  • $208.95 Ex. Tax: $189.95


RAM Mounts partnered with Samsung to bring you a charging cradle for the Samsung Galaxy Tab Active2. The cradle is engineered to meet the standards of enterprise field workers in different business process which includes transportation, field sales, logistics, manufacturing and much more. This affordable mount provides power to the Tab Active2 through the pogo pin interface on the tablet and can be easily adjusted to portrait or landscape orientation of the device. For security and theft deterrence, the RAM-HOL-SAM7PCLU features a patent pending dial combination lock. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus.

Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPS hole pattern. Also included is the GDS® Step Down Converter Charger - an ideal solution for providing power to the Galaxy Tab Active2.

Specs & Features

    • Dial combination locking mechanism for theft deterrence
    • Access for camera use while docked
    • Low cost
    • One handed operation
    • No need to lock the latch for shock and vibration applications
    • Works with the protective sleeve attached
    • NFC reader accessible while in dock
    • Access to stylus while in dock
    • Easily rotate for use in portrait or landscape mode
    • Input Range: 8V - 40V DC
    • Output Voltage: 5VDC
    • Output Current: 2.5A max
    • Output Connector Type: 90° DC plug
    • Input Cable Length: 1.2 Meters overall length including 2 Pole Flat Marine Connector
    • Output Cable Length: 1.2 Meters (with included 1M Type-A Male to 5.5mm OD/2.5mm ID 90° DC cable)
    • Operating Temperature Range: -10°C to +70°C
    • Storage Temperature Range: -40°C to +70°C
    • Overvoltage/Load Dump Compliance: Meets SAE J-1113
    • Integrated Short Circuit Protection
    • FCC, CE, WEEE, and ROHS Compliant
    • USB 2.0 BC 1.2 DCP Support
    • Material: High Strength Composite
    • Note: The "U" in the part number reflects product packaged in poly bag.
