• RAM® Double Ball Mount with 100x100mm VESA Plate - E Size Medium (RAM-E-101U-246)
1 1

RAM® Double Ball Mount with 100x100mm VESA Plate - E Size Medium (RAM-E-101U-246)

RAM® Double Ball Mount with 100x100mm VESA Plate - E Size Medium (RAM-E-101U-246)

RAM-E-101U-246
$658.00 AUD
$0.00 AUD $658.00 AUD
Sale Sold out
Tax included.

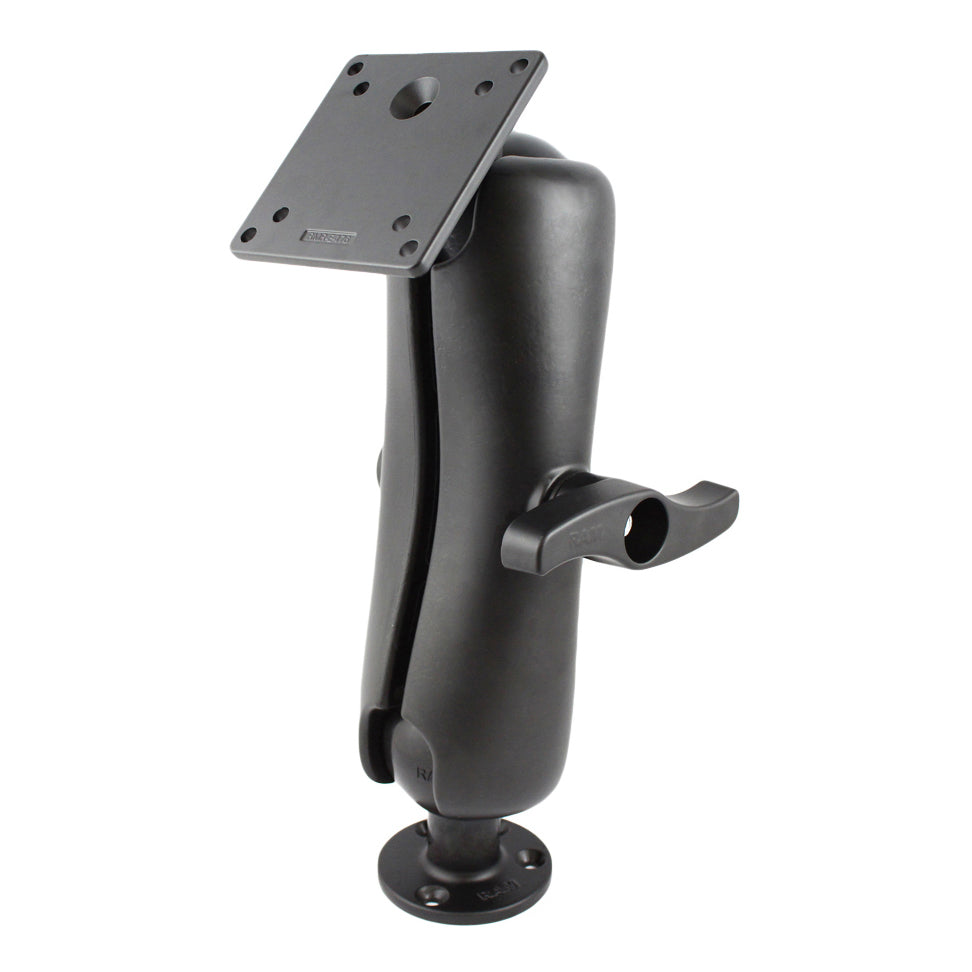

The RAM-E-101U-246, heavy duty universal assembly, includes a universal base piece to mount heavy devices to a flat surface and a 4.75" x 4.75" face plate. It is recommended for mounting heavy devices such as monitors and flat screen electronics. Features a hole pattern for 100mm and 75mm VESA standards.

Tech Specs

  • Socket to Socket Length: 9.875"
  • Hole Pattern: See drawings
  • Ball Size: E Size (3.35")
  • Weight Capacity: Standard Use: 15 lbs, Heavy-Duty Use: 10 lbs
  • Materials: Marine-grade aluminum
  • Package Type: Poly Bag
  • Weight: 11.15 lb

Package Content

  • 1 x RAM® Double Ball Mount with 100x100mm VESA Plate - E Size Medium (RAM-E-101U-246)

FAQs

  • Q: What are the 4 shoulder washers used for?
    A: The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball plate.
