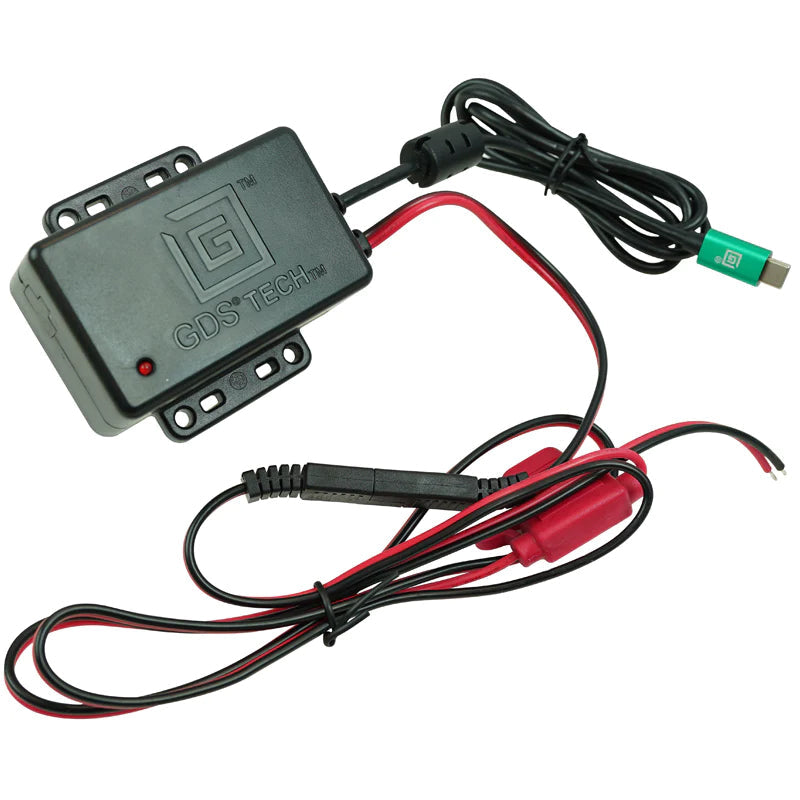

GDS Hardwire Male USB Type-C (12VDC Output) Power Delivery Charger (RAM-GDS-CHARGE-V3C-1U)
GDS Hardwire Male USB Type-C (12VDC Output) Power Delivery Charger (RAM-GDS-CHARGE-V3C-1U)
SKU:RAM-GDS-CHARGE-V3C-1U
Regular price
$127.00 AUD
Regular price
Sale price
$127.00 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
The GDS Modular Hardwire Charger with USB Type-C Male Connector is the ideal solution for providing power to any Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Hub delivers Type-C power to your device. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new GDS Hub. Always Protected. Always Connected.
Features
Features
- Hardwire charger includes USB Type-C male connection with input of 12-24VDC and output of 12VDC @ 2A max (supports USB PD3.0 and PPS)
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Tech Specs
Tech Specs
PACKAGING TYPE
Poly Bag
INPUT VOLTAGE
12-24VDC
OUTPUT VOLTAGE
12VDC @ 2A (supports USB PD3.0 and PPS)
POWER OUTPUT
37.5W Total
OUTPUT CURRENT
3A max
INPUT CONNECTOR
Male USB Type-C
INPUT CABLE LENGTH
1.2 Meters including 2 Pole Flat Marine Connector
OUTPUT CABLE LENGTH
1 Meter
OPERATING TEMPERATURE
-20°C to +70°C
STORAGE TEMPERATURE
-40°C to +85°C
REGULATORY
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
CERTIFICATIONS
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support
WARRANTY
3 year warranty
WEIGHT
0.45 lb
Poly Bag
INPUT VOLTAGE
12-24VDC
OUTPUT VOLTAGE
12VDC @ 2A (supports USB PD3.0 and PPS)
POWER OUTPUT
37.5W Total
OUTPUT CURRENT
3A max
INPUT CONNECTOR
Male USB Type-C
INPUT CABLE LENGTH
1.2 Meters including 2 Pole Flat Marine Connector
OUTPUT CABLE LENGTH
1 Meter
OPERATING TEMPERATURE
-20°C to +70°C
STORAGE TEMPERATURE
-40°C to +85°C
REGULATORY
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
CERTIFICATIONS
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support
WARRANTY
3 year warranty
WEIGHT
0.45 lb
- Note: The "U" in the part number reflects product packaged in poly bag.
- Weight: 0.45 lbs.
- Warranty Status: 3-year warranty
- Visit Mounts Australia to view the complete product range of RAM Mounts we offer.
Package Content
Package Content
- Contains 1 x GDS Hardwire Male USB Type-C (12VDC Output) Power Delivery Charger (RAM-GDS-CHARGE-V3C-1U)
