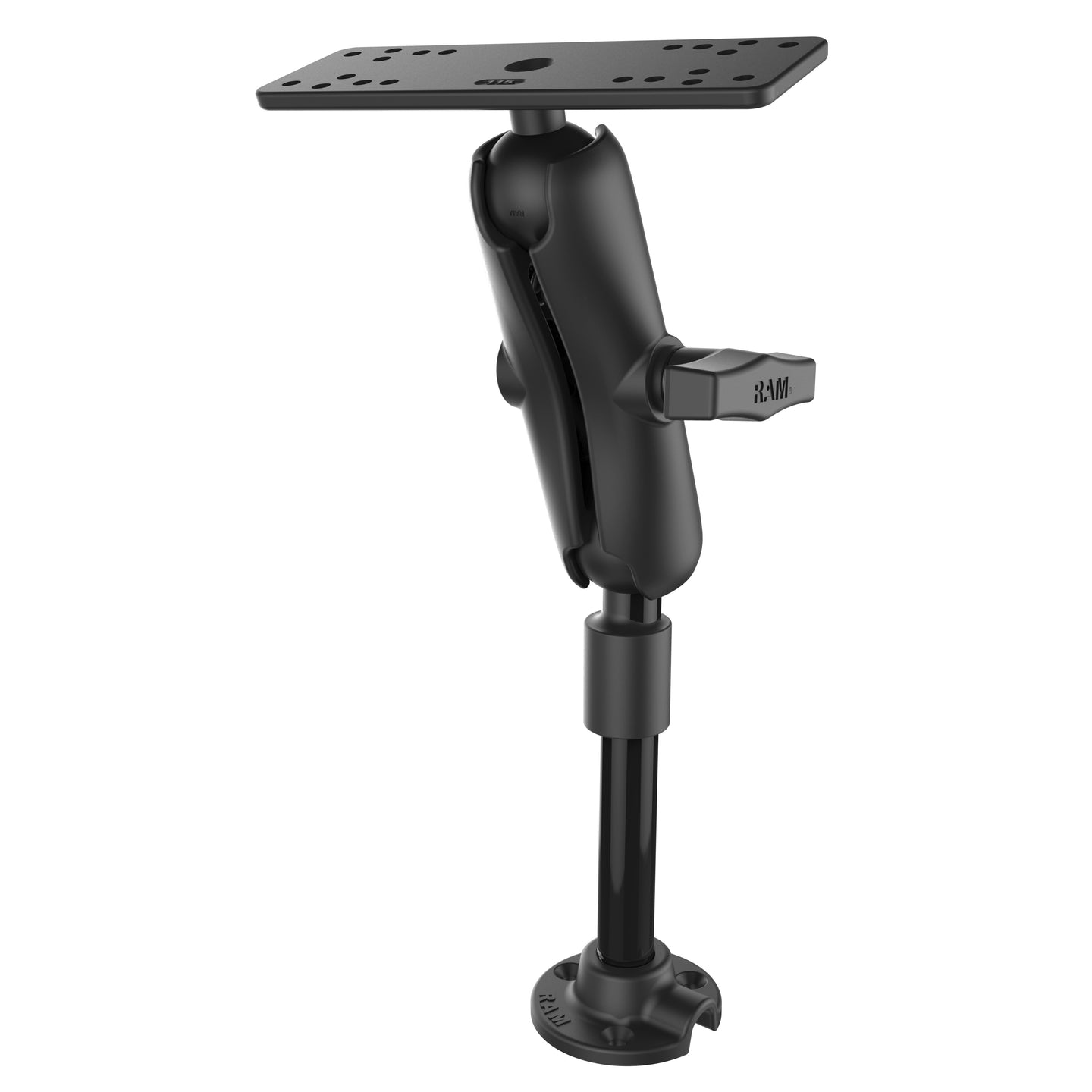

RAM® 6" Long 90° NPT Pipe Mount with Double Ball Mount (RAM-134-90)

RAM® 6" Long 90° NPT Pipe Mount with Double Ball Mount (RAM-134-90)

SKU:RAM-134-90

Regular price $221.00 AUD
Regular price Sale price $221.00 AUD
Sale Sold out
Tax included.

This mount connects directly to the floor, or any mounting surface with the 2.5" diameter base which is at 90, 45 or 0 degrees to the 6" long vertical pole. At the top of the pole is a 1.5" ball attached to the socket of a standard 4 5/8" 1.5" double socket arm. There is a 6.25" x 2" marine mount plate on top. Mounting hardware for the base is not included. The base unscrews from the pole, allowing the mount to be moved to other locations.

Tech Specs

  • Hole Pattern: 3-Hole 120-Degree: 1.812" diameter
  • Socket to Socket Length: 4.66"
  • Ball Size: C Size (1.5")
  • Weight Capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
  • Material: Marine-grade aluminum
  • Packaging Type: Poly Bag
  • Warranty: 3 year warranty
  • Weight: 2.9 lb
Additional InformationThe included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Package Content

  • 1 x RAM® 6" Long 90° NPT Pipe Mount with Double Ball Mount (RAM-134-90)
