RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm (RAM-102U-247)

RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm (RAM-102U-247)

RAM-102U-247
$191.00 AUD
$191.00 AUD
Sale Sold out
Taxes included.

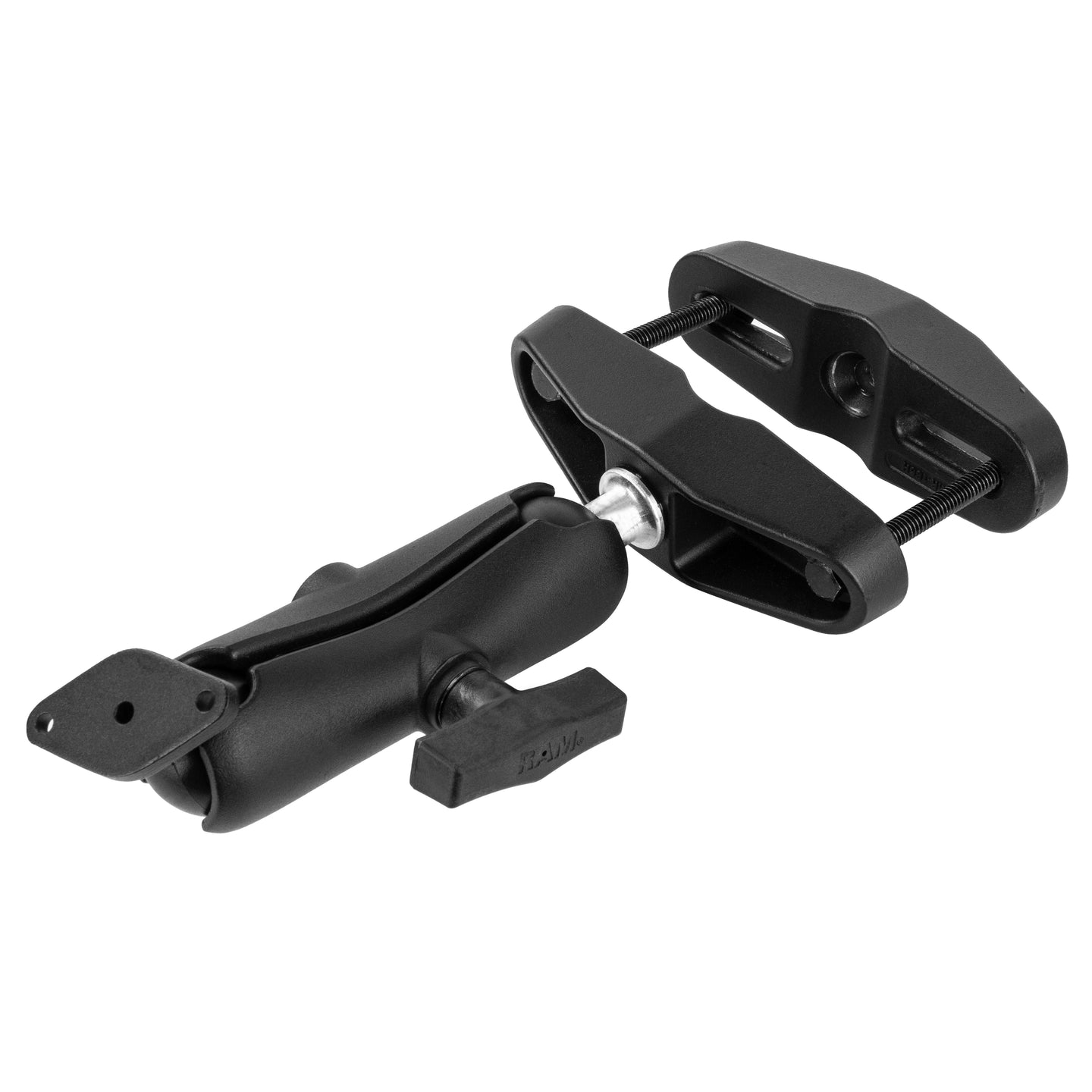

The RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm (RAM-102U-247) is a mounting solution designed to secure large handheld devices to forklifts. This kit consists of one (1) double socket C-size medium arm, one (1) diamond plate with C-size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

Features

  • 2.43" x 1.31" diamond plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes a 4" clamping base for posts and a medium-length, C-size RAM® double socket arm; ball-and-socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Tech Specs

  • Hardware Included: Assembly Hardware
  • Clamp Range: 1.75" - 4" width
  • Socket to Socket Length: 4.66"
  • Hole Pattern: 2-Hole AMPS 1.912"
  • Plate Size: 2.43" x 1.31"
  • Ball Size: C Size (1.5")
  • Weight Capacity:
    • Standard Use: 4 lbs
    • Heavy-Duty Use: 3 lbs
  • Materials: Marine-grade aluminum
  • Packaging Type: Poly Bag
  • Weight: 2.28 lb

Package Content

  • 1 x RAM® Universal Post Clamp Mount with Diamond Plate - C Size Medium Arm (RAM-102U-247)

Recommended Uses

Ideal for forklifts, warehouse vehicles, material handling equipment, and industrial workstations that require a secure post-mounted solution for large handheld devices. Commonly used for inventory management, barcode scanning, order picking, dispatch workflows, asset tracking, warehouse navigation, fleet operations, and hands-free device access in logistics, manufacturing, distribution, and warehouse environments.
