RAM® Vertical 12" Swing Arm Mount for Fishfinders & Plotters (RAM-109V-1U)

RAM® Vertical 12" Swing Arm Mount for Fishfinders & Plotters (RAM-109V-1U)

RAM-109V-1U

$188.00 AUD
$188.00 AUD
Sale Sold out
Tax included.

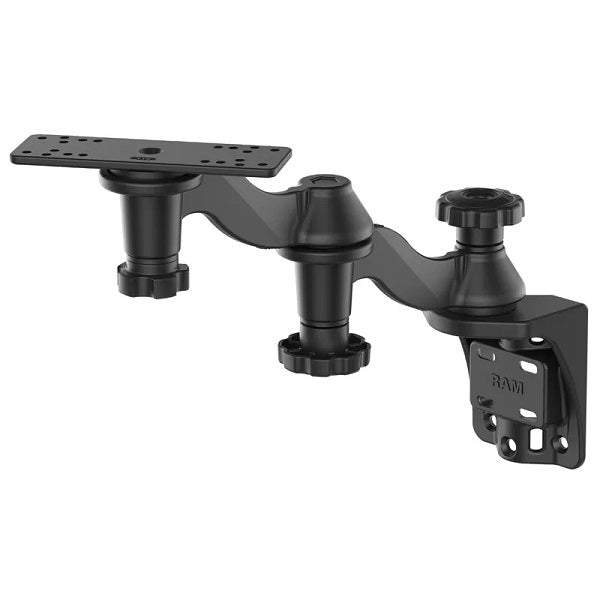

The RAM double swing arm mount includes two 6" long BENT swing arms mounted on a vertical surface mounting base. At the end of the device mount is a rectangular 6.25 x 2" top base. The pivoting points of the mount allow a complete 360 degree rotation.

Tech Specs

  • Product Dimensions:
    Overall Height: 11.58", Total Swing Arm Length: 12"

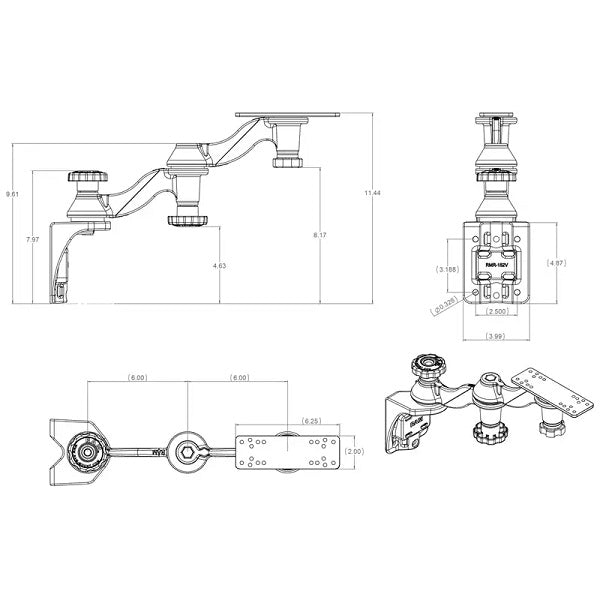

  • Hole Pattern: See Drawing
  • Plate Size:
    Top Plate: 6.25" x 2", Bottom Plate: 3.97" x 4.85"
  • Weight Capacity: 8lbs
  • Weight: 3.9 lb
  • Material: Marine-grade aluminum

Additional Information: The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device..

Compatibility

Compatibility:

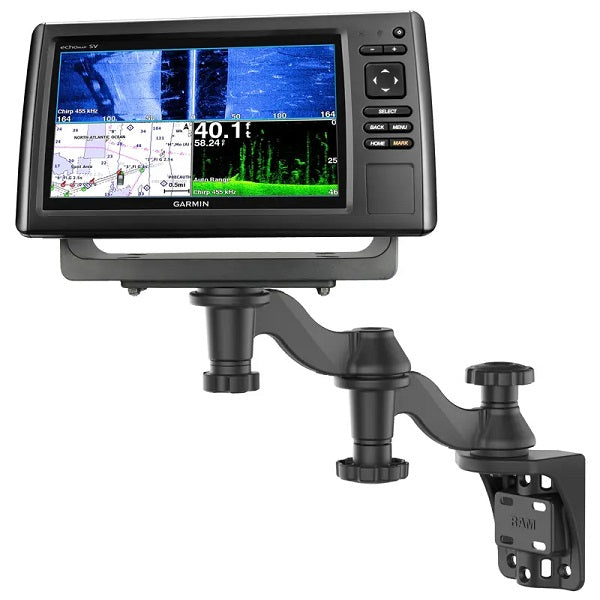

  • Garmin: echoMAP Chirp 72-95 Series, ECHOMAP Plus 72-97 Series, ECHOMAP UHD 62-95 Series, ECHOMAP UHD2 5", ECHOMAP UHD2 7", ECHOMAP UHD2 9", ECHOMAP Ultra 102sv, ECHOMAP Ultra 106sv, ECHOMAP Ultra 2 10" ECHOMAP Ultra 2 12", GPSMAP 722, GPSMAP 722xs, GPSMAP 723, GPSMAP 723sv, GPSMAP 742, GPSMAP 742xs, GPSMAP 743, GPSMAP 743xsv, GPSMAP 8410, GPSMAP 8410xsv, GPSMAP 8412, GPSMAP 8412xsv, GPSMAP 8416, GPSMAP 8416xsv, GPSMAP 8610, GPSMAP 8610xsv, GPSMAP 8612, GPSMAP 8612xsv, GPSMAP 8616, GPSMAP 8616xsv, GPSMAP 922, GPSMAP 922xs, GPSMAP 923, GPSMAP 923xsv, GPSMAP 942, GPSMAP 942xs, GPSMAP 943, GPSMAP 943xsv, GPSMAP 1223, GPSMAP 1223xsv, Striker Plus 5cv, Striker Vivid 5cv, Striker Plus 7cv, Striker Plus 7sv, Strike Vivid 5cv, Striker Vivid 7cv, Strike Vivid 7sv, Striker Plus 9sv, Striker Vivid 9sv, Fishfinders and GPS Chartplotters
  • Humminbird: Apex 13, Apex 16, Helix 8, Helix 9, Helix 10, Helix 12, Helix 15, Solix 15, Fishfinders and GPS Chartplotters
  • Lowrance: Eagle 7, Eagle 9, Elite FS 7, HDS Carbon 7, HDS LIVE 7, HDS LIVE 9, HDS LIVE 12, HDS PRO 12, HDS PRO 16, Hooks Reveal 7 Series, Hook Reveal 9 Series, HOOK-9, Fishfinders and GPS Chartplotters
  • Raymarine: Fishfinders and GPS Chartplotters

Package Content

    Contains 1 x RAM® Vertical 12" Swing Arm Mount for Fishfinders & Plotters (RAM-109V-1U)
