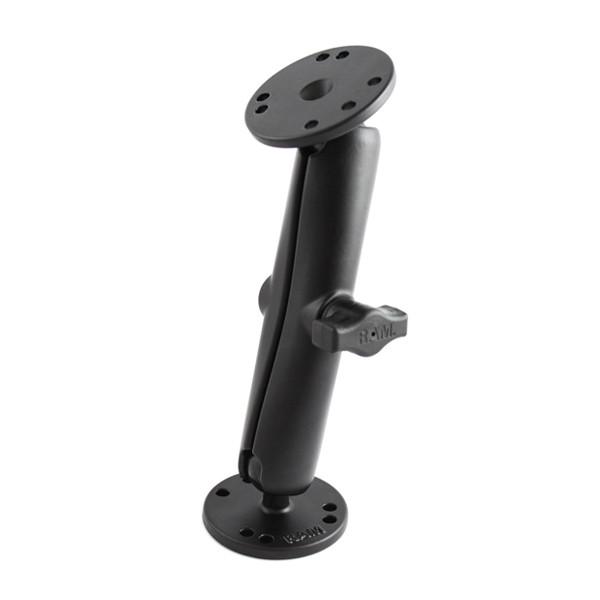

RAM® Universal Double Ball Mount with Two Round Plates - B Size Long (RAM-B-101U-C)

RAM® Universal Double Ball Mount with Two Round Plates - B Size Long (RAM-B-101U-C)

RAM-B-101U-C
$74.00 AUD
$0.00 AUD $74.00 AUD
Sale Sold out
Tax included.

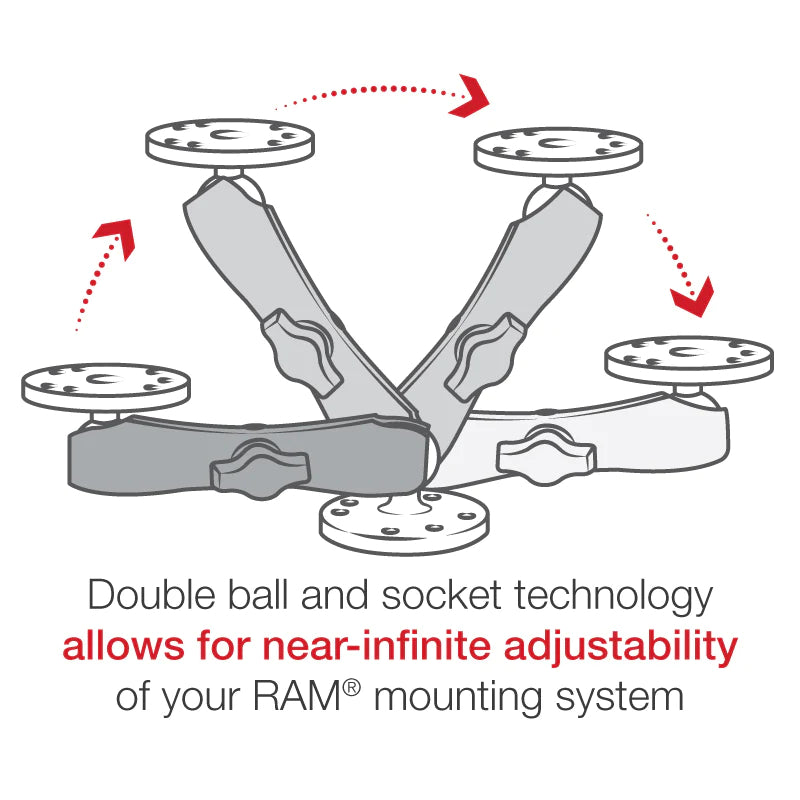

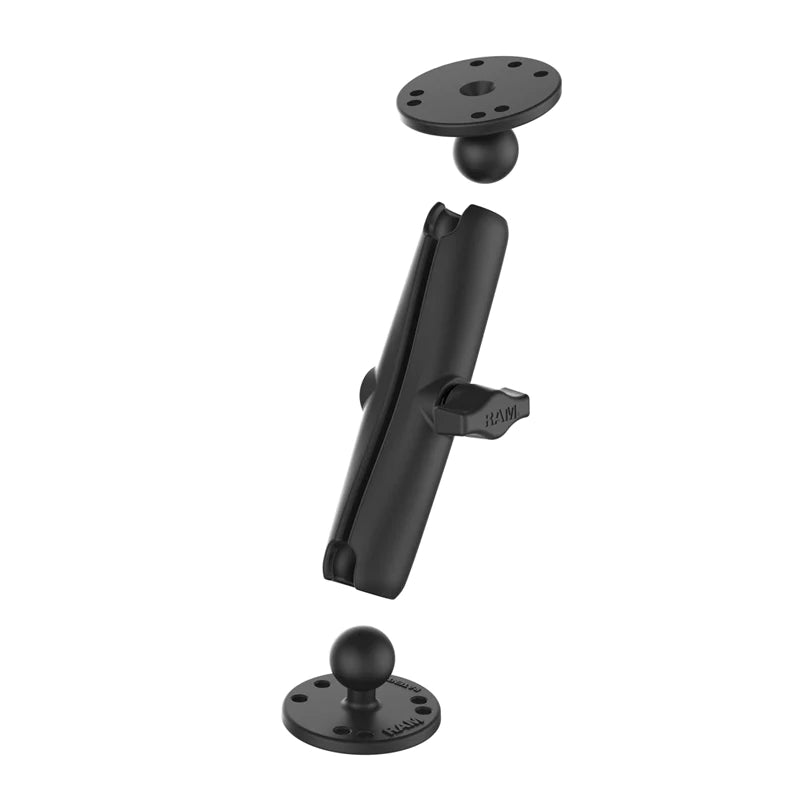

The RAM-B-101U-C consists of a Long length B size 1" double socket arm and two 2.5" diameter round plates that contain the universal AMPS hole pattern. The mount is designed with a patented rubber ball and socket system that dampens shock and vibration and allows for almost infinite adjustment to achieve the perfect viewing angle. The AMPs hole pattern found on the round plate will connect to many RAM products.

Features

  • Overall Height: 7.3125"
  • Material: Powder Coated Marine Grade Aluminum
  • Ball Size: 1" Rubber "B" Ball Size
  • Weight: 0.75 lbs.
  • Note: The "U" in the part number reflects product packaged in poly bag.
  • Check out and learn more about this RAM Mount at Mounts Australia.
  • Visit Mounts Australia to view the complete product range of RAM Mounts we offer.

Tech Specs

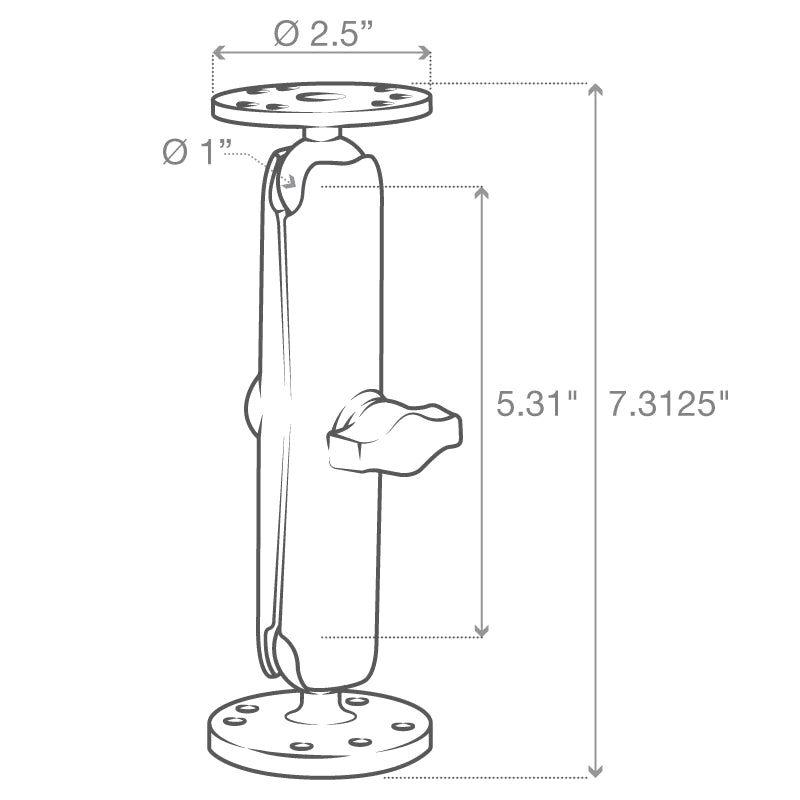

  • Product Dimensions: Overall Height: 7.3125"
  • Socket-to-Socket Length: 5.31"
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
  • Plate Size: 2.5"
  • Ball Size: B Size (1")
  • Weight Capacity:
    Standard Use: 2 lbs
    • Heavy-Duty Use: 1 lb
  • Weight: 0.8 lb
  • Material: Marine-grade aluminum

Package Content
