RAM® Tab-Tite Yoke Clamp Mount for iPad Gen 1-4 (RAM-B-121-TAB3U)
RAM® Tab-Tite Yoke Clamp Mount for iPad Gen 1-4 (RAM-B-121-TAB3U)
SKU:RAM-B-121-TAB3U

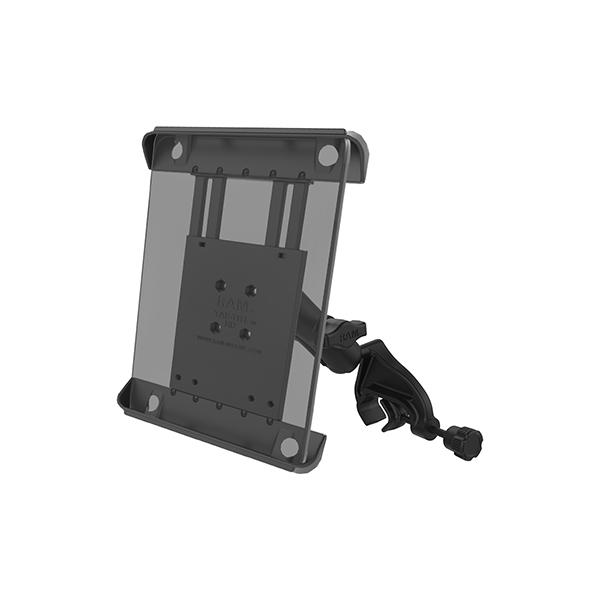

The RAM-B-121-TAB3U consists of a yoke clamp base, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The clamp base will accommodate rails in diameter from 0.625" to 1.25".
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Tech Specs
Tech Specs
- Holder Dimensions:
Height Range: 8.5" - 11.125", Width Range: 6.38" - 7.7", Depth Range: .13" - .56" - Clamp Range: .625" - 1.25"
- Socket-to-Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb
- Weight: 1.3 lb
- Material: Marine-grade aluminum, High strength composite
Compatibility
Compatibility
Product Guides
Product Guides
-
Instructions
- RAM Tab-Tite Assembly Guide
- Drawing File - Yoke Clamp Base
Documents
Package Content
Package Content
-
Components
- 1 x RAM-HOL-TAB3U
