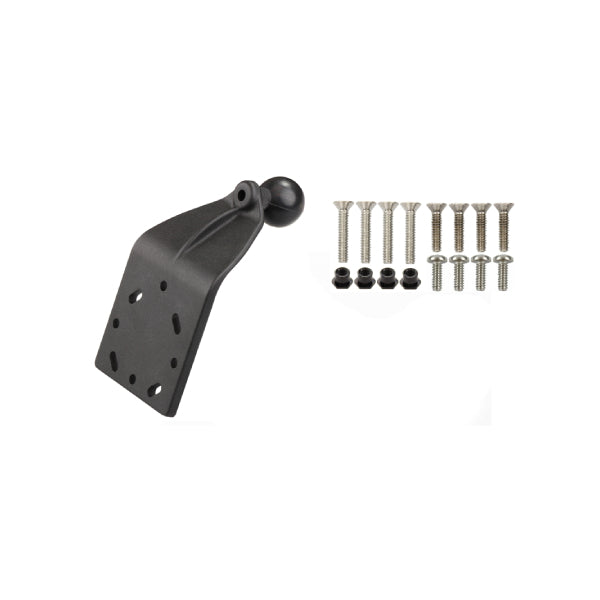

RAM® Curved Extension Base with Ball & Mounting Hardware (RAM-B-125B-G1U)
The RAM RAM-B-125B-G1U, extension base includes a 1" rubber ball; it allows for almost infinite adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 2.5" square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5'' above the 1" ball (to the bottom of the connection section of the plate).
Specs & Features
- Ball/Socket Size: B Size (1")
- Weight Capacity: 2 lbs.
- Material: Marine-grade aluminum
- Weight: 0.2 lbs.
- Compatible Devices: Garmin StreetPilot III, Garmin GPSMAP 172-250
