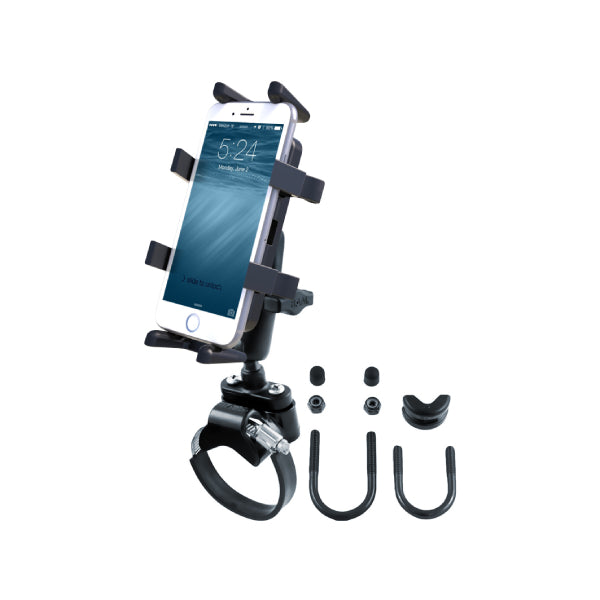

RAM® Finger-Grip™ Universal Mount with ATV/UTV Rail Base (RAM-B-149Z-2-UN4)
The RAM-B-149Z-2-UN4 consists of a steel strap base, u-bolt bases, double socket arm and universal Finger Grip™ cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.
Features & Specs:
- Holder Dimensions:
- Height Range: 7.25" max (using optional supports)
- Width Range: 1.25" - 3.5"
- Max Depth: 1.5"
- U-Bolt: .5" - 1.25" diameter
- Strap Clamp: 1.57" - 3.15" diameter
- Socket-to-Socket Length: 3"
- Ball/Socket Size: B Size (1")
- Weight Capacity: 2 lbs
- Materials: Marine-grade aluminum, high strength composite
- Weight: 1.41 lbs.
- Contains 1 x RAM® Finger-Grip™ Universal Mount with ATV/UTV Rail Base (RAM-B-149Z-2-UN4)
