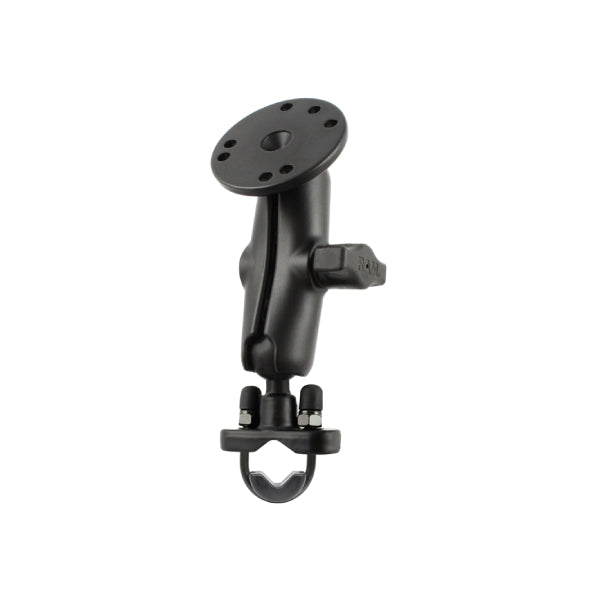

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate (RAM-B-149Z-202U)

RAM® Handlebar U-Bolt Double Ball Mount with Round Plate (RAM-B-149Z-202U)

  • $75.00 Ex. Tax: $68.18


RAM-B-149Z-202U

The RAM-B-149Z-202U consists of a zinc coated u-bolt base, double socket arm and round base adapter. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.


Features & Specs

  • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
  • Clamp Range: .5" - 1.25" diameter
  • Socket-to-Socket Length: 3"
  • 4-Hole AMPS: 1.181" x 1.496"
  • 3-Hole 120-Degree: 1.812" Diameter
  • Ball/Socket Size: B Size (1")
  • Weight Capacity Standard Use: 2 lbs
  • Weight Capacity Heavy-Duty Use: 1 lb
  • Materials: Marine-grade aluminum, High strength composite
  • Weight: 0.65 lbs.

Package Content:

  • 1 x RAM® Handlebar U-Bolt Double Ball Mount with Round Plate (RAM-B-149Z-202U)
