RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base (RAM-B-149Z-A-UN10U)
RAM® X-Grip® Large Phone Mount with Handlebar U-Bolt Base (RAM-B-149Z-A-UN10U)
SKU:RAM-B-149Z-A-UN10U
Regular price
$132.00 AUD
Regular price
Sale price
$132.00 AUD
Unit price
/
per

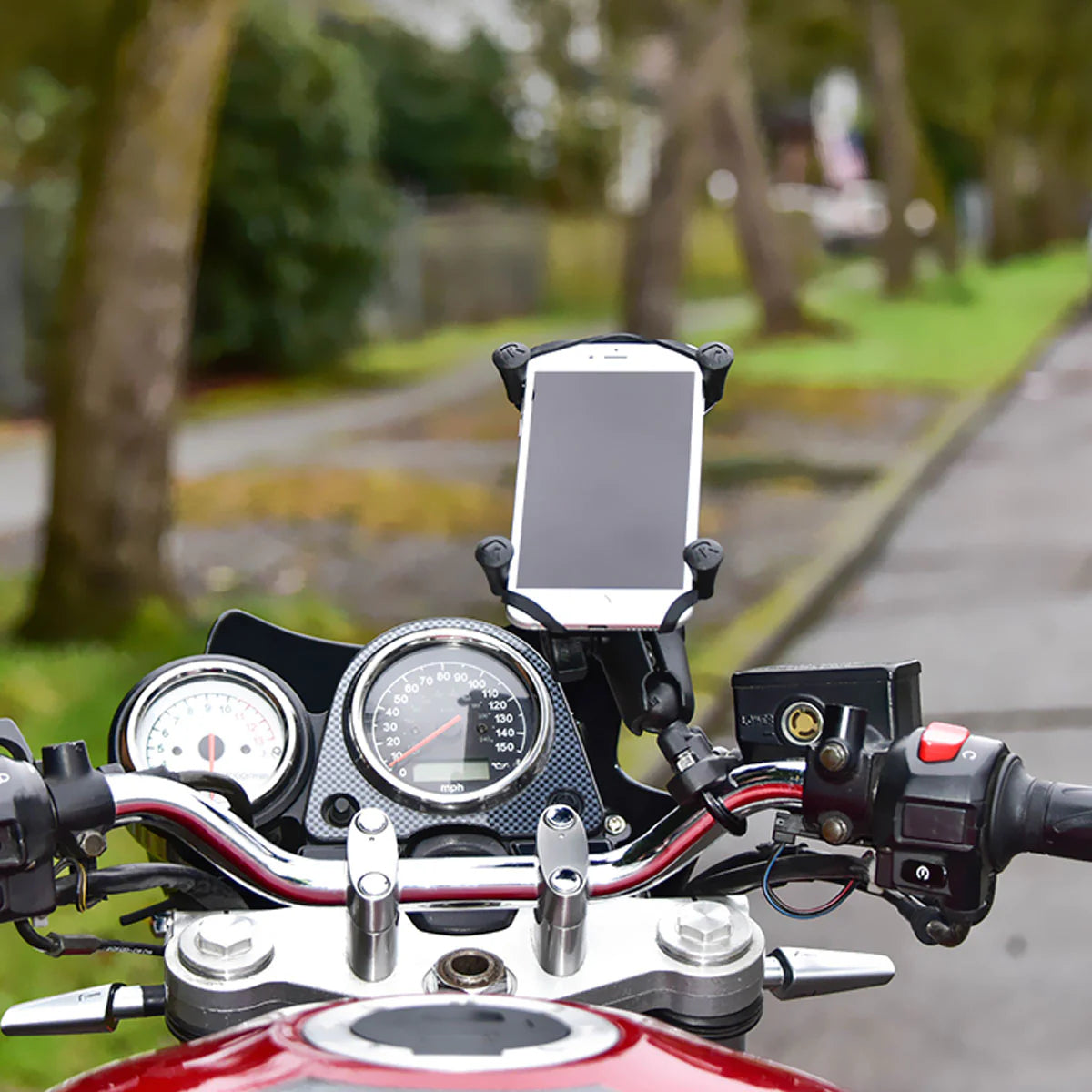

The RAM-B-149Z-A-UN10U consists of a zinc coated u-bolt base, short double socket arm and universal spring loaded X-Grip IV cradle for large phones and phablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5".

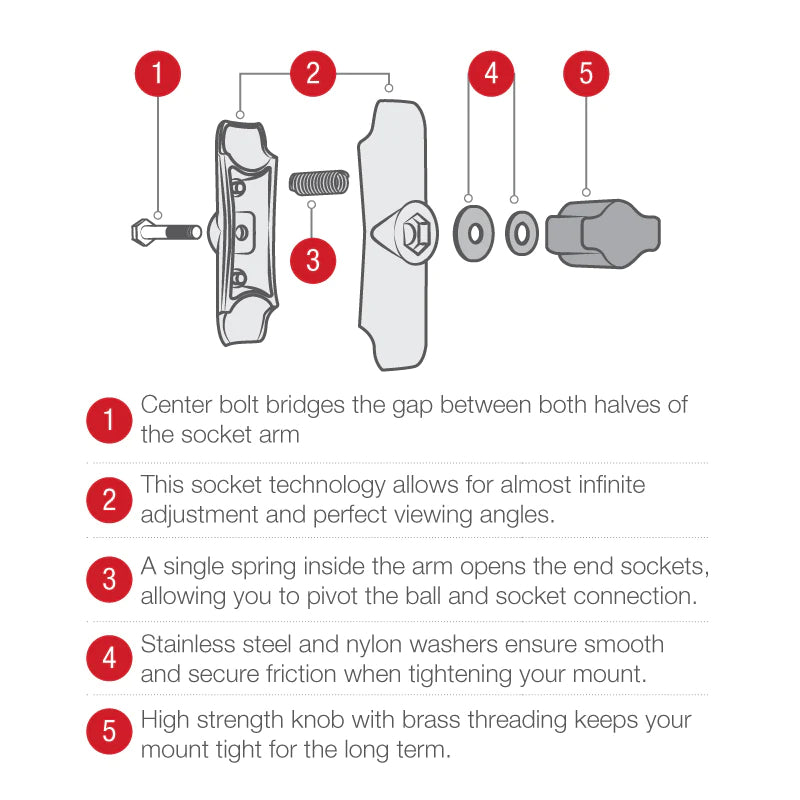

The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features
Features
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Holder Dimensions:
- Width Range: 1.75" - 4.5"
- Depth Range: .875" max
- Clamp Range: .5" - 1.25" diameter
- Socket-to-Socket Length: 1.75"
- Ball Size: B Size (1")
- Weight Capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb - Weight: 0.68 lb
- Material: Marine-grade aluminum, High strength composite, Stainless steel
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
Compatibility
Compatibility
Compatibility:
- Apple: iPhone 6s Plus, iPhone 7 Plus, iPhone 8 Plus, iPhone Xs Max, iPhone 11 Pro Max, iPhone 12 Pro Max, iPhone 13 Pro Max, iPhone 14 Plus, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro Max
- Blackberry: Evolve X
- Blackview: BV9900, BV9900 Pro
- Cat: S42, S62, S62 Pro
- Garmin: Drive 50, Drive 51 LM, Drive 52, Drive 61 LM, DriveSmart 51 LMT-S, DriveSmart 61 LMT-S, DriveTrack 71, Nuvi 2788LM, RV 660LMT, RV 770 LMT-S
- Google: Pixel 2 XL, Pixel 3 XL, Pixel 3a XL, Pixel 7 Pro, Pixel 8 Pro
- HTC: Bolt, U Ultra
- Huawei: Mate 20 X
- Kyocera: DuraSport 5G
- LG: Fiesta 2 LTE, Fiesta LTE, GBS ThinQ, Harmony, Stylo 2 V, Stylo 3, Stylo 3 Plus Titan, Stylo 4, V20, V50 ThinQ, X charge, X venture
- Magellan: TR5, TR7
- Motorola: moto e4 plus, moto g4, moto z2, moto z2 play, moto z3
- Rand: McNally Road Explorer 5, McNally TND 540
- Razer: Phone 2
- Samsung: Galaxy A7, Galaxy A7 (2017), Galaxy A7 (2018), Galaxy A8, Galaxy A8 (2016), Galaxy A9 (2016), Galaxy A9 Pro (2016), Galaxy A9 (2018), Galaxy A15, Galaxy A70, Galaxy A80, Galaxy A90 5G, Galaxy C7, Galaxy C7 Pro, Galaxy C9 Pro, Galaxy E7, Galaxy Grand Neo Plus, Galaxy J7, Galaxy J7 Max, Galaxy J7 V, Galaxy Note 5, Galaxy Note 10 Plus, Galaxy Note20 Ultra, Galaxy On7, Galaxy S10 5G, Galaxy S8, Galaxy S8 Active, Galaxy S21 5G, Galaxy S21+ 5G, Galaxy S21 Ultra 5G, Galaxy S22 Ultra 5G, Galaxy S23+, Galaxy S23 Ultra, Galaxy S24+, Galaxy S24 Ultra, Galaxy XCover7
- Social: Mobile Rhino C6
- Sonim: RS60
- Sony: Xperia C4, Xperia L2, Xperia XA Ultra, Xperia XA1 Ultra, Xperia XA2 Ultra, Xperia XZ Premium
Product Guides
Product Guides
-
Instructions
- RAM U-Bolt Base Assembly Guide
- RAM X-Grip Assembly Guide Documents
- Drawing File - U-Bolt Ball Base
- On Road Catalog
Package Content
Package Content
-
Components
- 1 x RAM-HOL-UN10BU
- 1 x RAM-B-201U-A
- 1 x RAM-B-231ZU
