RAM® Quick-Grip™ Waterproof Wireless Charging Handlebar Mount (RAM-B-149Z-A-UN14W-V7M)

  • $312.00 Ex. Tax: $283.64


RAM-B-149Z-A-UN14W-V7M

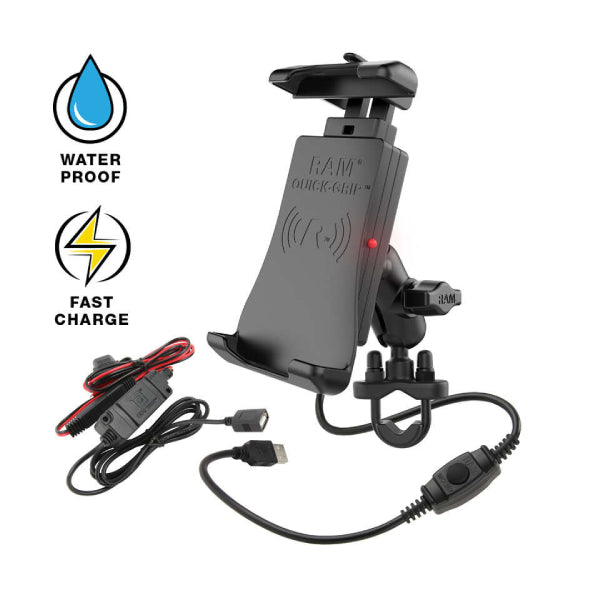

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit.

This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless handlebar kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5" to 1.25" in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 10W maximum output
  • Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

Features & Specs:

  • Holder Dimension Height Range: 5.625" - 6.625"
  • Holder Dimension Max Width: 3.125"
  • Holder Dimension Max Depth: .7"
  • Clamp Range: .5" - 1.25" diameter
  • Socket-to-Socket Length: 1.75"
  • Ball/Socket Size: B Size (1")
  • Weight Capacity Standard Use: 2 lbs
  • Weight Capacity Heavy-Duty Use: 1 lb
  • Materials: Marine-grade aluminum, High strength composite, Stainless steel
  • Input Power:5V-2A; 9V-1.67A
  • Output: 5W / 7.5W / 10W
  • Conversion Efficiency: 85% Max
  • Maximum Case Thickness: 6mm
  • Working Frequency: 110-205KHZ
  • Product Standard: WPC v.1.2.4
  • Qi Compatible
  • Compatible with QC2.0/QC3.0 power supplies
  • Connector Type: USB Type-A Male
  • Input Cable Length: 20" with optional 1.2M extension cable
  • Compliance: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant
  • Certifications: CE Certification, e-Mark Certification, RCM Certification, FCC Certification
  • Weight: 1.8 lbs.
  • Warranty Status: 1 year warranty
  • Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

Package Content:

  • 1 x RAM-HOL-UN14WB-V7M
  • 1 x RAM-B-201U-A
  • 1 x RAM-B-231ZU
