RAM® Quick-Grip™ XL Phone Mount with Twist-Lock™ Suction Cup - Medium (RAM-B-166-PD4U)

Name: RAM® Quick-Grip™ XL Phone Mount with Twist-Lock™ Suction Cup - Medium (RAM-B-166-PD4U)
Brand: RAM Mounting Systems T/A National Products Inc
SKU: RAM-B-166-PD4U
Price: 113.85 AUD
Availability: InStock

SKU:RAM-B-166-PD4U

$113.85 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

OPTIONS:

<div class="lv-option-dropdown-options-tpl" style="display:none;">
    <div
      class="lv-option-dropdown-options"

style="--border-width:1px;--border-color:#BABFC3;--bg-color:#FFFFFF;--text-color:#202223;--border-radius:2px;--badge-bg-color:#E83300;--badge-text-color:#fff;--badge-font-size:8px;--badge-font-weight:600;--badge-padding-y:4px;--badge-padding-x:6px;--badge-border-radius:2px;--badge-opacity:100;--dropdown-padding-y:14px;--dropdown-padding-x:14px;--bg-color-normal:#FFFFFF;--text-color-normal:#202223;--bg-color-active:#EEE;--text-color-active:#202020;--price-position:row;--price-space:6px;--text-align:center;--price-font-size:12px;--price-color:#202020;--price-font-weight:200;--swatch-size:24px;--swatch-border-radius:100px;--space-after-swatch:6px;"
    ><ul class="lv-option-dropdown-option-set">

<li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="6544394190966"
              data-handle="ram-b-149z-pd4u-ram-quick-grip-xl-phone-mount-with-handlebar-u-bolt-base"
              data-status="1"
              data-value="Handlebar Mount - Medium Arm"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">Handlebar Mount - Medium Arm</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="6544369352822"
              data-handle="ram-b-149z-a-pd4u-ram-quick-grip-xl-phone-mount-with-handlebar-u-bolt-base"
              data-status="1"
              data-value="Handlebar Mount - Short Arm"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">Handlebar Mount - Short Arm</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="6839676960886"
              data-handle="quick-grip-xl-low-profile-tough-claw"
              data-status="1"
              data-value="Handlebar Mount - Low Profile"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">Handlebar Mount - Low Profile</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="6733297942646"
              data-handle="tough-strap-handlebar-base-quick-grip-xl"
              data-status="1"
              data-value="Strap Clamp Mount"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">Strap Clamp Mount</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"

              selected
              data-enabled="1"
              data-pid="7465944055926"
              data-handle="ram-b-166-pd4u-ram-quick-grip-xl-phone-mount-with-twist-lock-suction-cup-medium"
              data-status="1"
              data-value="Suction Cup Mount - Medium Arm"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">Suction Cup Mount - Medium Arm</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="7738376945782"
              data-handle="ram-b-149z-a-pd4-462"
              data-status="1"
              data-value="Handlebar Mount with Vibe-Safe - Short Arm"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">Handlebar Mount with Vibe-Safe - Short Arm</div>


                </div>

              </div>
            </li>
            <li
              class="lv-option-dropdown-option"


              data-enabled="1"
              data-pid="6733269598326"
              data-handle="quick-grip-xl-with-screw-base"
              data-status="1"
              data-value="Drill-Down Mount"
              data-available="true"
              data-product="ProductDrop"
              data-option-id="0"
            >
              <div class="lv-option-dropdown-item">

                <div class="lv-option-dropdown-text">
                  <div class="lv-option-dropdown-value">Drill-Down Mount</div>


                </div>

              </div>
            </li>

</ul>
    </div>
  </div>

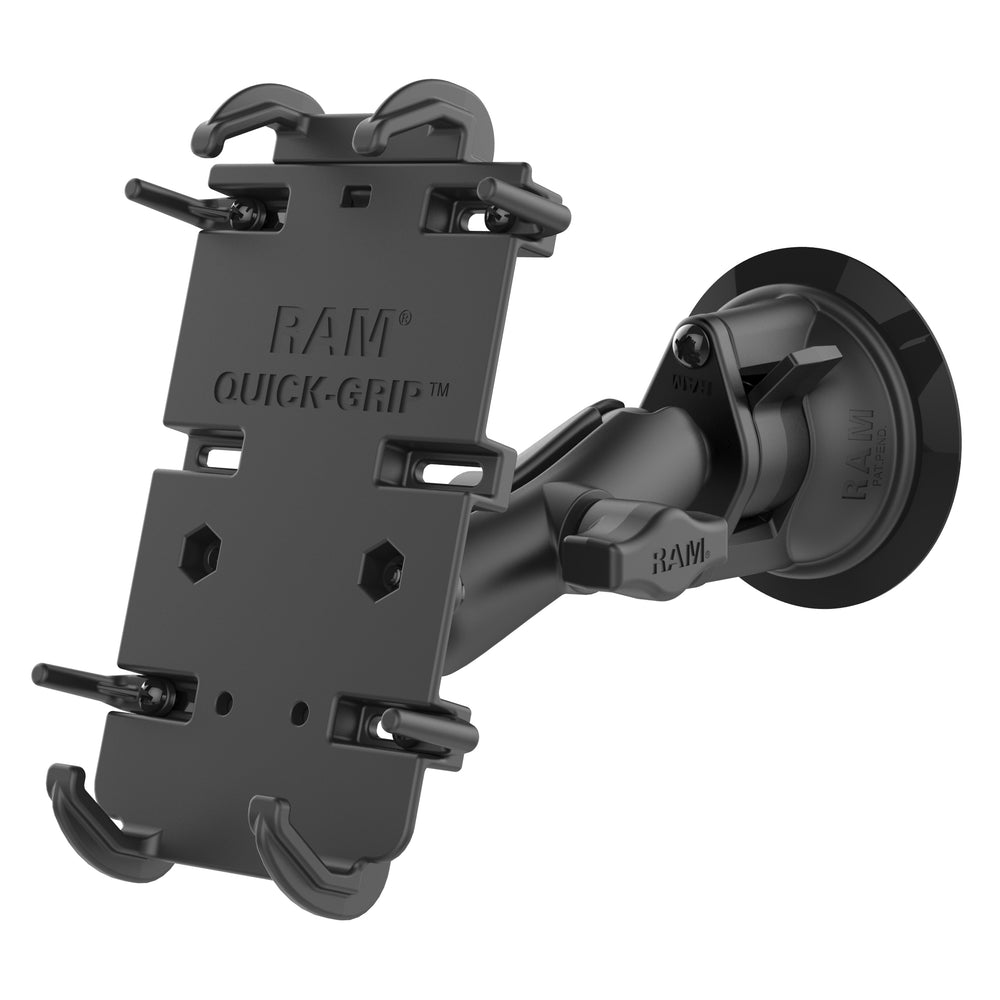

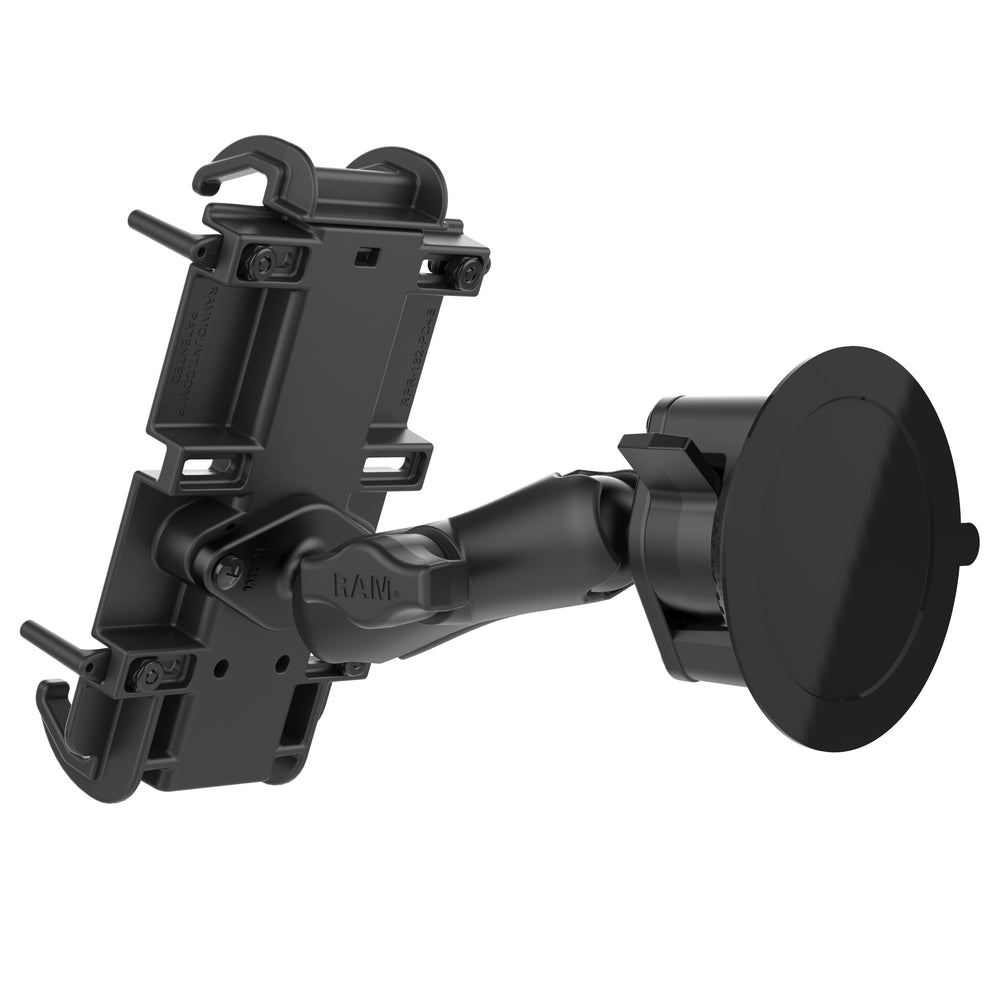

This suction cup mount for vehicle windshields includes the spring-loaded RAM® Quick-Grip™ XL holder providing a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that the device stays in place during rough driving and when in landscape mode. Included is a medium length B size socket arm, B size RAM® diamond ball base with 1" diameter ball and included hardware. Make sure to thoroughly clean the surface you will be mounting the suction cup to ensure a secure hold.

Features

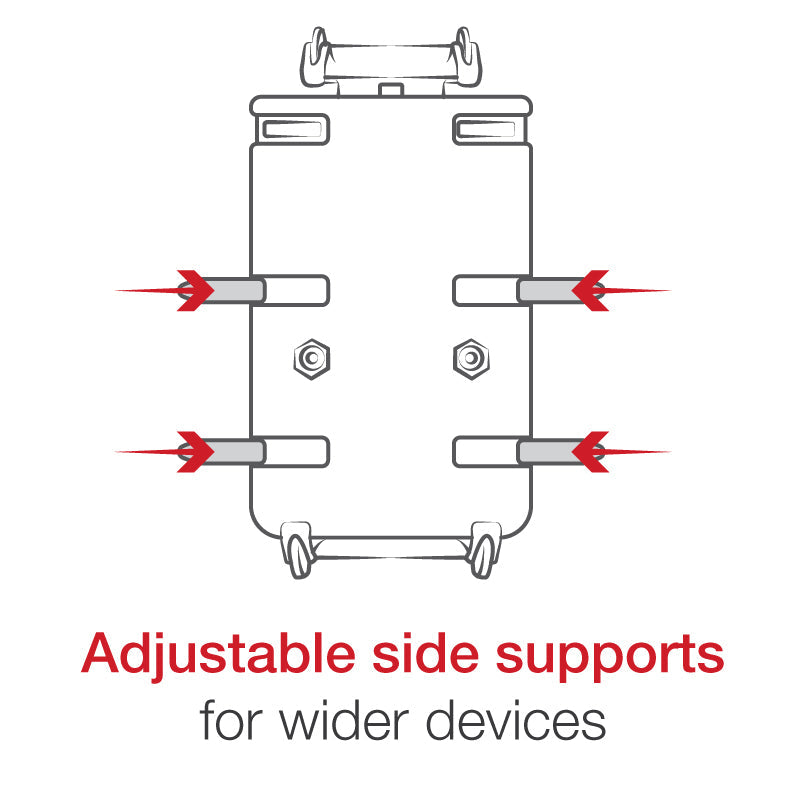

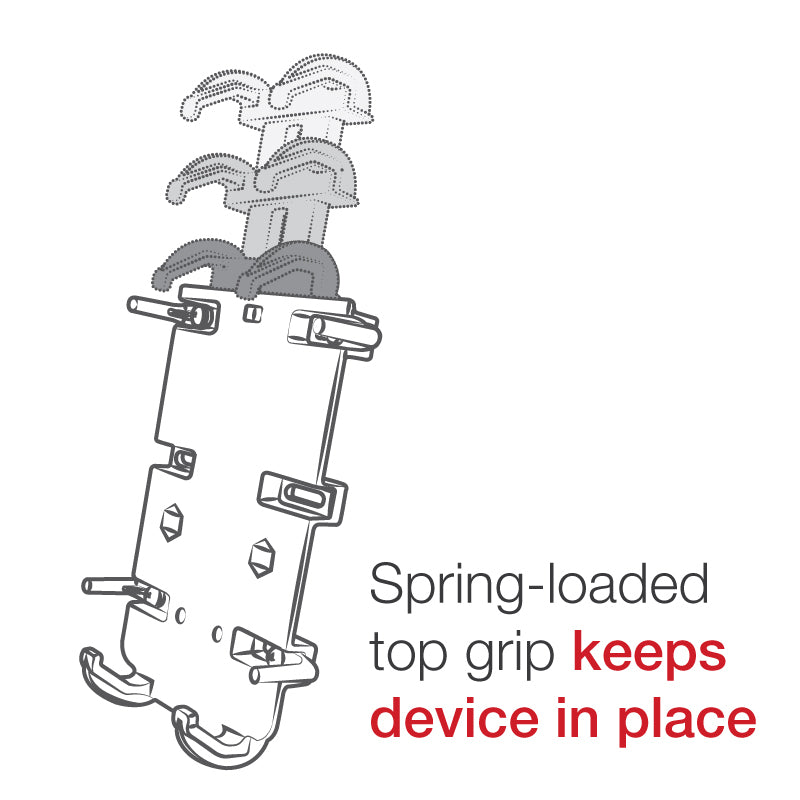

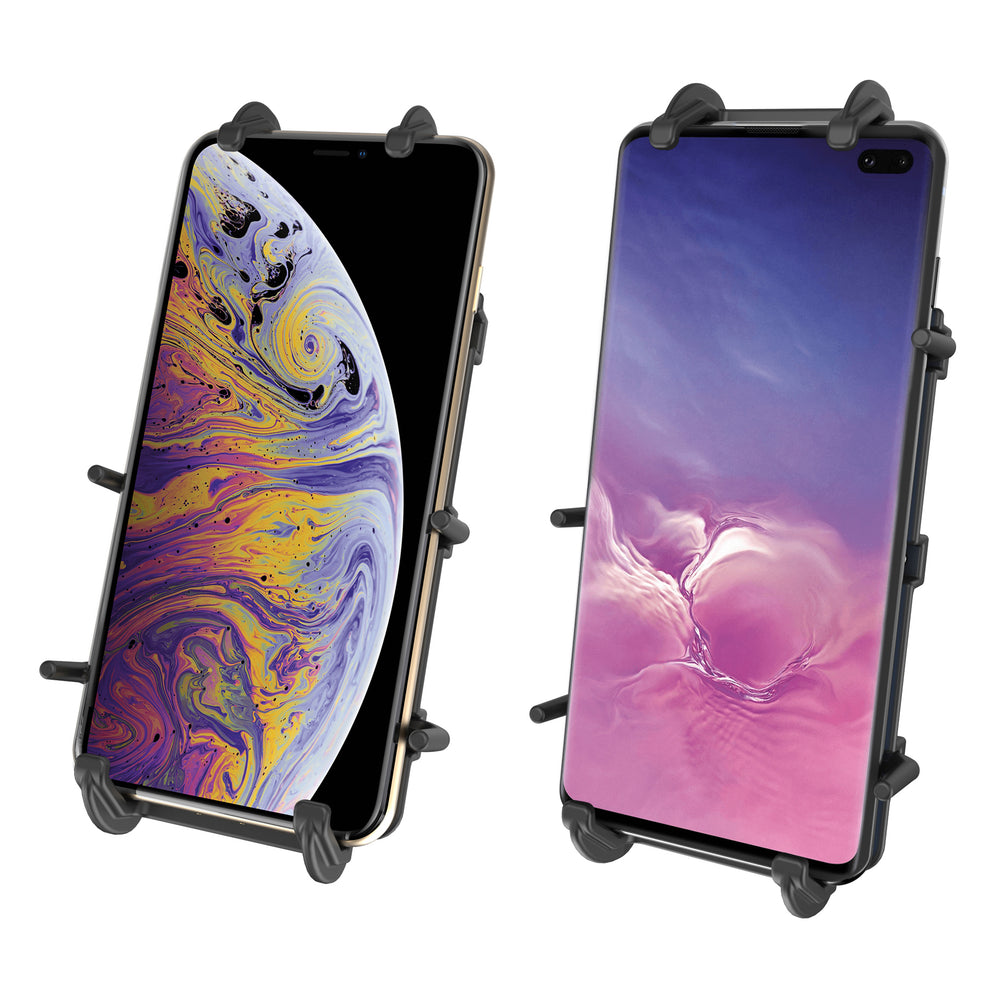

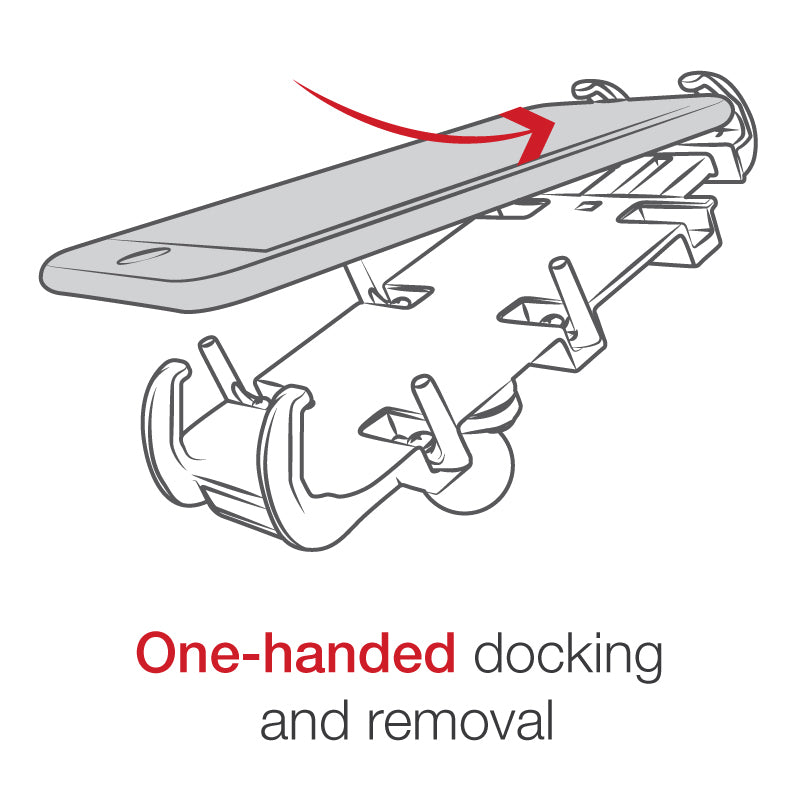

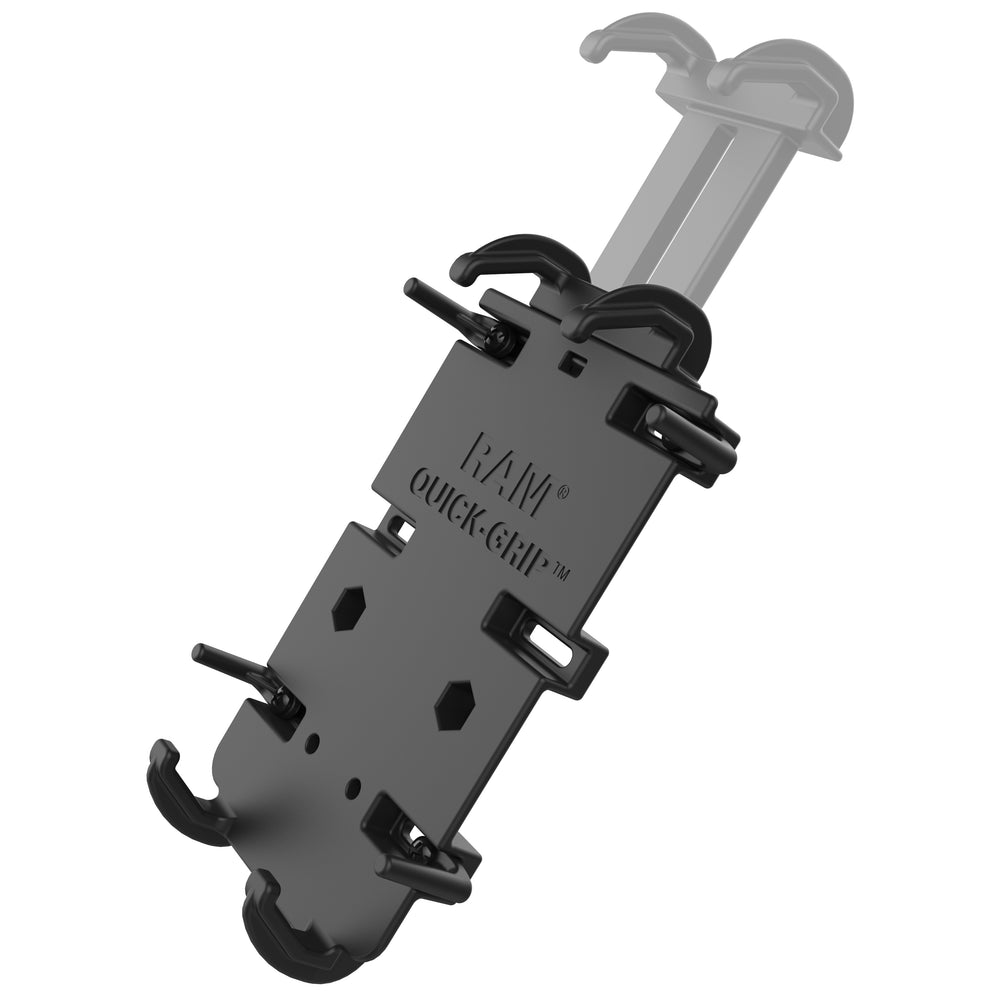

Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand

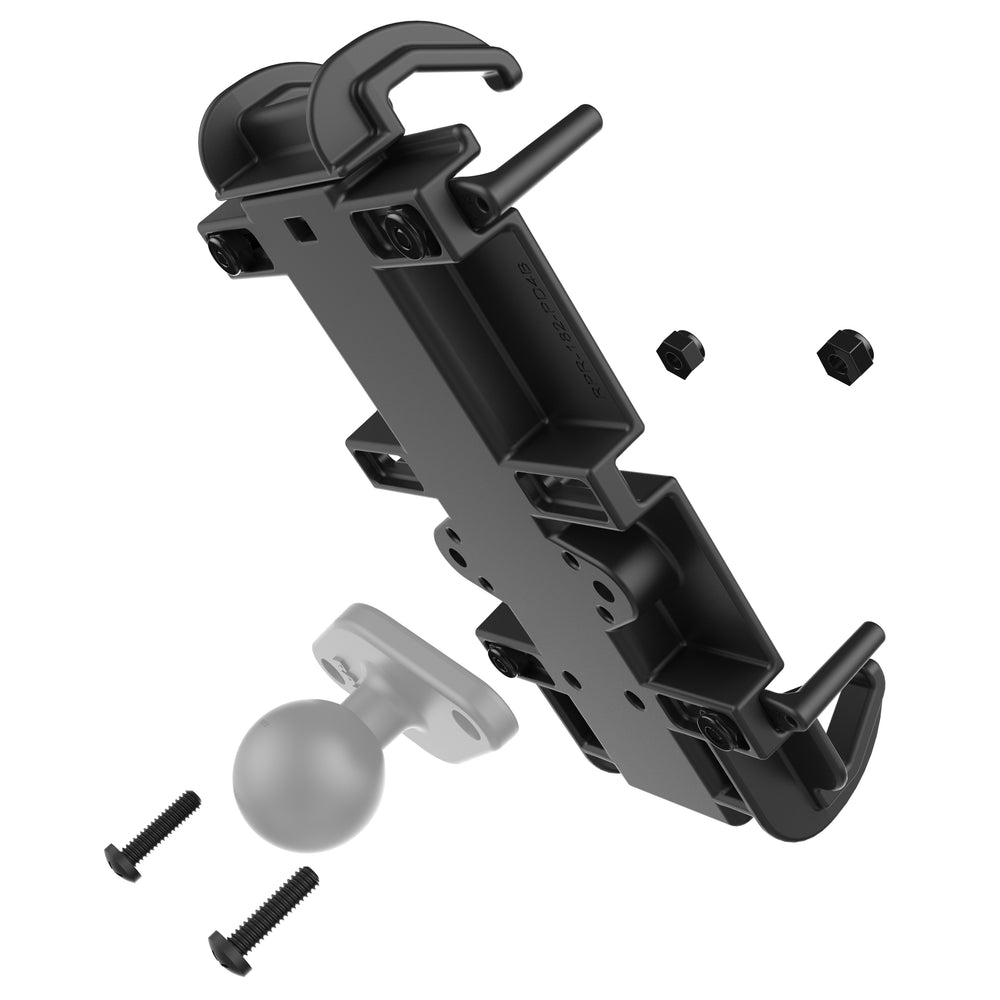

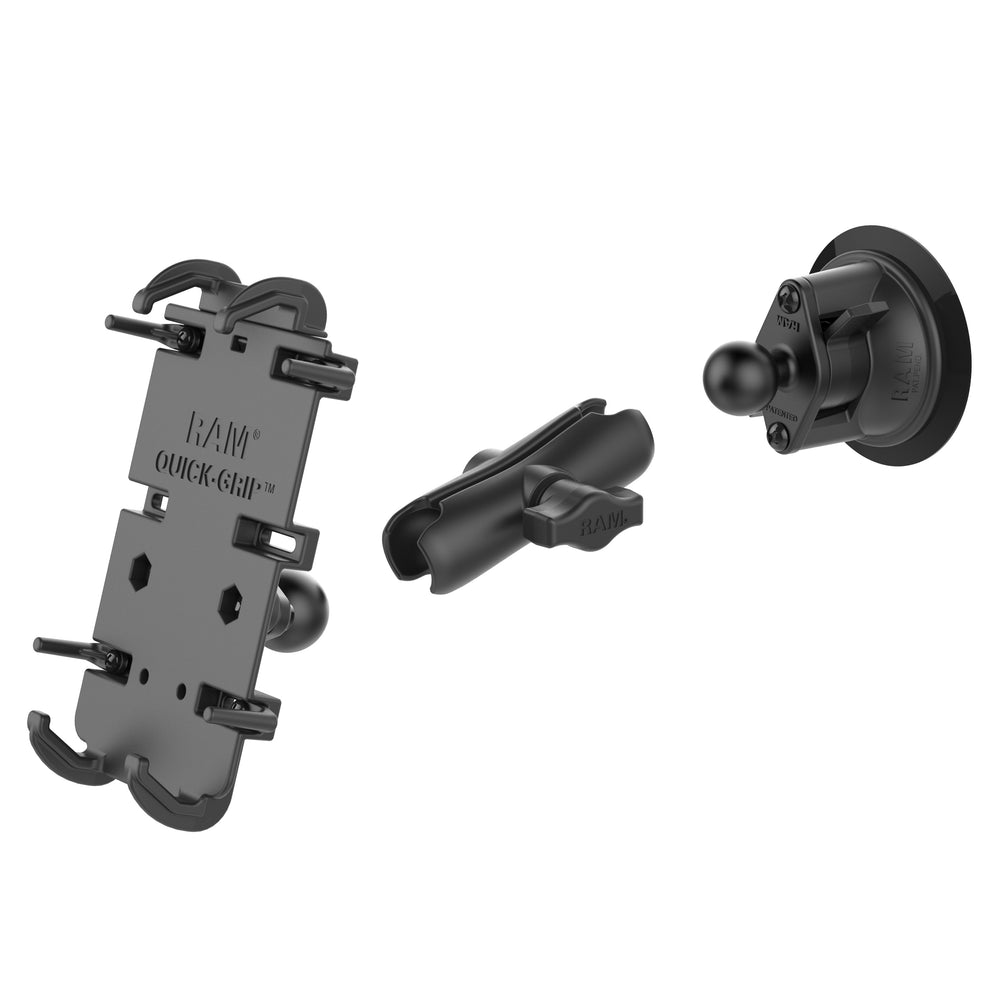

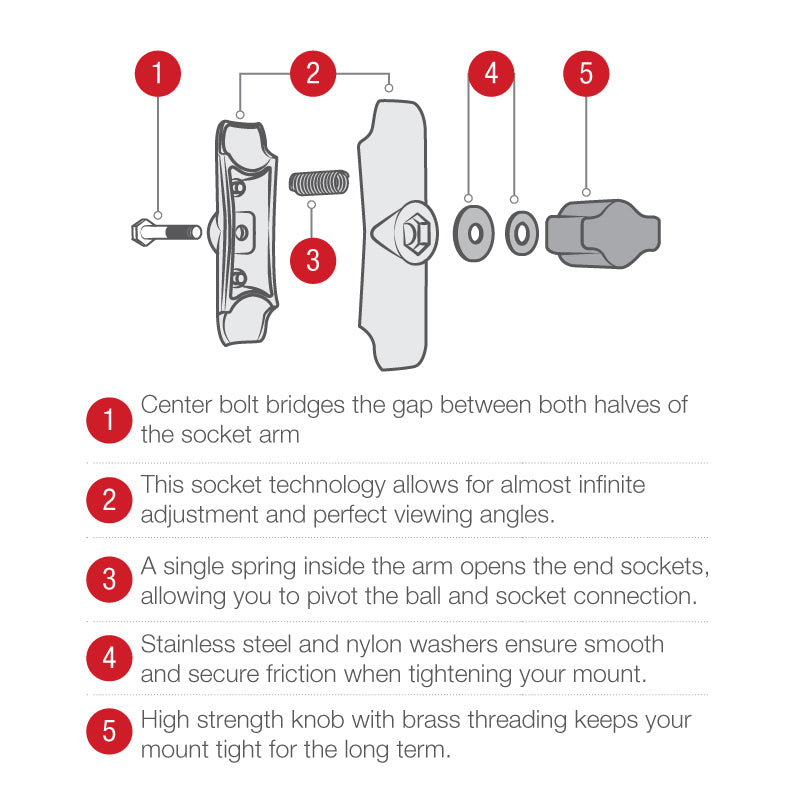

Kit includes RAM® Quick-Grip™ XL Holder for large phones with a case, B size diamond ball base, medium double socket arm and RAM® Twist-Lock™ Suction Cup base
RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty*

Tech Specs

Hardware Included: Assembly Hardware
Holder Dimensions:
- Height Range: 5.75" - 7.25"
- Width Range: 2.625" - 3.625"
- Max Depth: .72"
Suction Size: 3.3" Diameter
Socket to Socket Length: 3"
Ball Size: B Size (1")
Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials:
- Marine-grade aluminum
- High strength composite
Packaging Type: Poly Bag
Weight: 1.02 lb
Additional Information:
- Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
- *The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty.

Compatibility

Apple: iPhone 6s Plus, iPhone 7 Plus, iPhone 8 Plus, iPhone Xs Max, iPhone 11 Pro Max, iPhone 12 Pro Max, iPhone 13 Pro Max, iPhone 14 Plus, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max, iPhone 16e, iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPhone Air
Blackberry: Evolve X
Blackview: BV9900, BV9900 Pro
Cat: S42, S62, S62 Pro
Garmin: Drive 50, Drive 51 LM, Drive 52, Drive 61 LM, DriveSmart 51 LMT-S, DriveSmart 61 LMT-S, DriveTrack 71, Nuvi 2788LM, RV 660LMT, RV 770 LMT-S
Google: Pixel 2 XL, Pixel 3 XL, Pixel 3a XL, Pixel 7 Pro, Pixel 8 Pro
HTC: Bolt, U Ultra
Huawei: Mate 20 X
Kyocera: DuraSport 5G
LG: Fiesta 2 LTE, Fiesta LTE, GBS ThinQ, Harmony, Stylo 2 V, Stylo 3, Stylo 3 Plus Titan, Stylo 4, V20, V50 ThinQ, X charge, X venture
Magellan: TR5, TR7
Motorola: moto e4 plus, moto g4, moto z2, moto z2 play, moto z3
Rand: McNally Road Explorer 5, McNally TND 540
Razer: Phone 2
Samsung: Galaxy A7, Galaxy A7 (2017), Galaxy A7 (2018), Galaxy A8, Galaxy A8 (2016), Galaxy A9 (2016), Galaxy A9 Pro (2016), Galaxy A9 (2018), Galaxy A15, Galaxy A70, Galaxy A80, Galaxy A90 5G, Galaxy C7, Galaxy C7 Pro, Galaxy C9 Pro, Galaxy E7, Galaxy Grand Neo Plus, Galaxy J7, Galaxy J7 Max, Galaxy J7 V, Galaxy Note 5, Galaxy Note 10 Plus, Galaxy Note20 Ultra, Galaxy On7, Galaxy S10 5G, Galaxy S8, Galaxy S8 Active, Galaxy S21 5G, Galaxy S21+ 5G, Galaxy S21 Ultra 5G, Galaxy S22 Ultra 5G, Galaxy S23+, Galaxy S23 Ultra, Galaxy S24+, Galaxy S24 Ultra, Galaxy S25+, Galaxy S25 Ultra, Galaxy XCover7
Social: Mobile Rhino C6
Sonim: RS60
Sony: Xperia C4, Xperia L2, Xperia XA Ultra, Xperia XA1 Ultra, Xperia XA2 Ultra, Xperia XZ Premium
