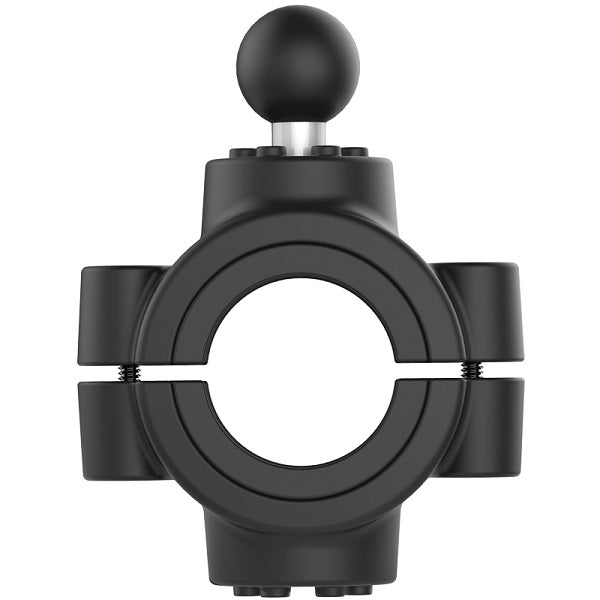

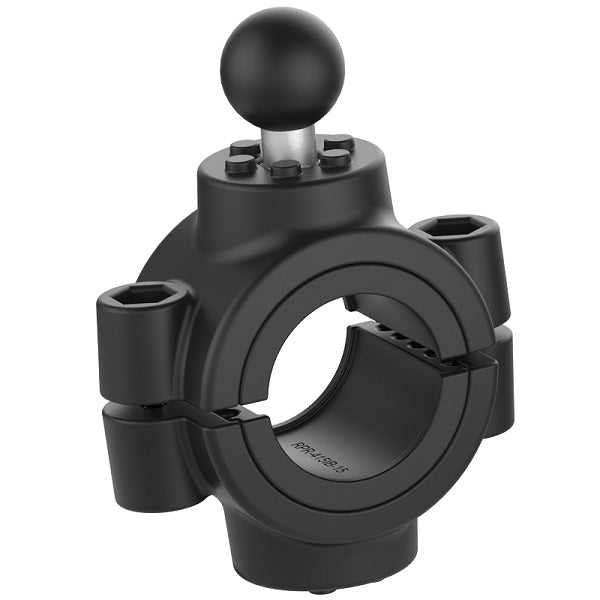

RAM Torque 11/2" - 2" Diameter Rail Base (RAM-B-415-15-2U )

The RAM Torque Rail Base accommodates rails and bars ranging from 1.5" to 2" in diameter – the perfect mounting solution for your ATV or UTV. The include B size hex ball adapter can connect to either side of the Torque base, and is suitable for rugged environments for supporting action cameras, spotlights or other devices. Two sizing inserts – one for attachment to 1.5" rails and the other for attachment to 1.75" rails – are included to create a tight hold while nylon-insert locknuts prevent loosening in high-vibration environments. Available separately, the RAM B Size Ball Add-On allows you to attach an additional B Size Ball to the Torque Rail Base for mounting multiple devices.

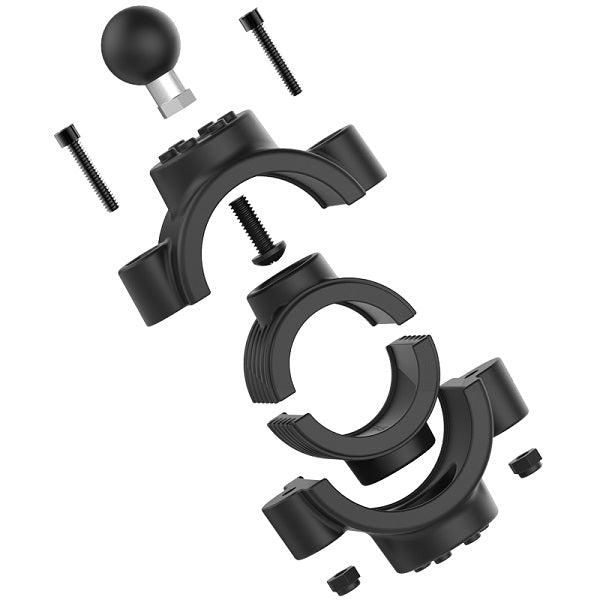

Hardware Included:
Assembly Hardware

• (2) #10-24 x 1" Socket Head Cap Screws
• (2) #10-24 Nylock Nuts

• (1) 5/32" Hex Key Wrench

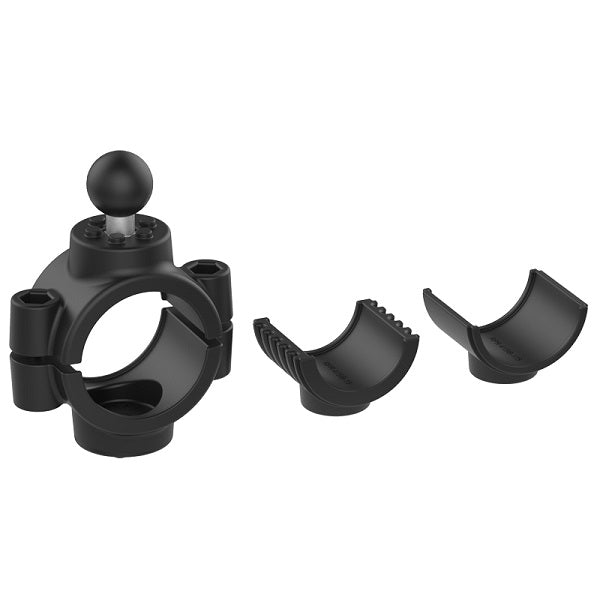

• (2) 1.5" Split Reducing Bushings

• (2) 1.75" Split Reducing Bushings

• (1) 172mm x 38.5mm Rubber Adhesive Strip


Features & Specs:

• Clamp Range: 1.5" - 2" diameter
• Ball/Socket Size: B Size (1")

• Weight Capacity: 2 lbs

• Materials: Marine-grade aluminum

• Packaging Type: Poly Bag

• Weight: 0.85 lbs.


Package Content:

• Contains 1 x RAM Torque 1 ½" - 2" Diameter Rail Base (RAM-B-415-15-2U)
