RAM® Drill-Down Ball Mount for Humminbird Helix 8-15, XPLORE & Apex (RAM-D-202-25-C-202-KNOB9HU)

RAM® Drill-Down Ball Mount for Humminbird Helix 8-15, XPLORE & Apex (RAM-D-202-25-C-202-KNOB9HU)

RAM-D-202-25-C-202-KNOB9HU
$397.00 AUD
$0.00 AUD $397.00 AUD
Sale Sold out
Tax included.

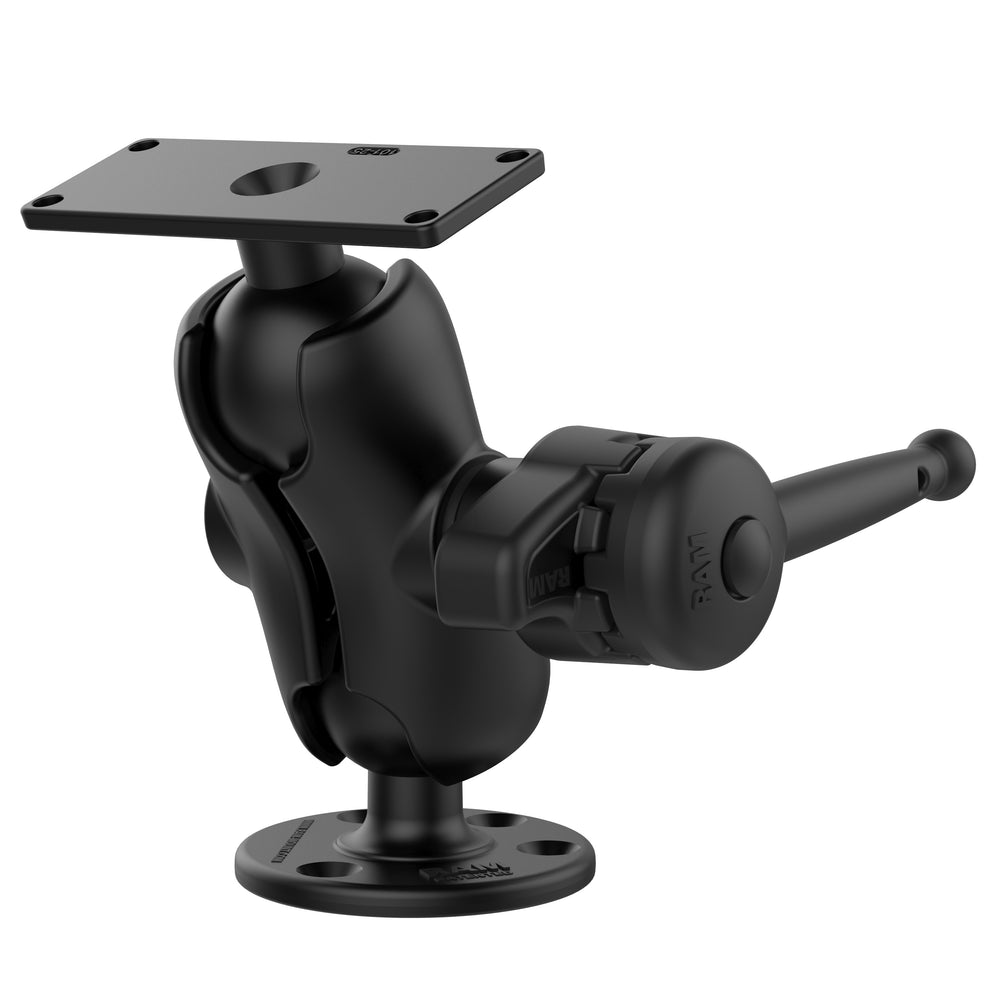

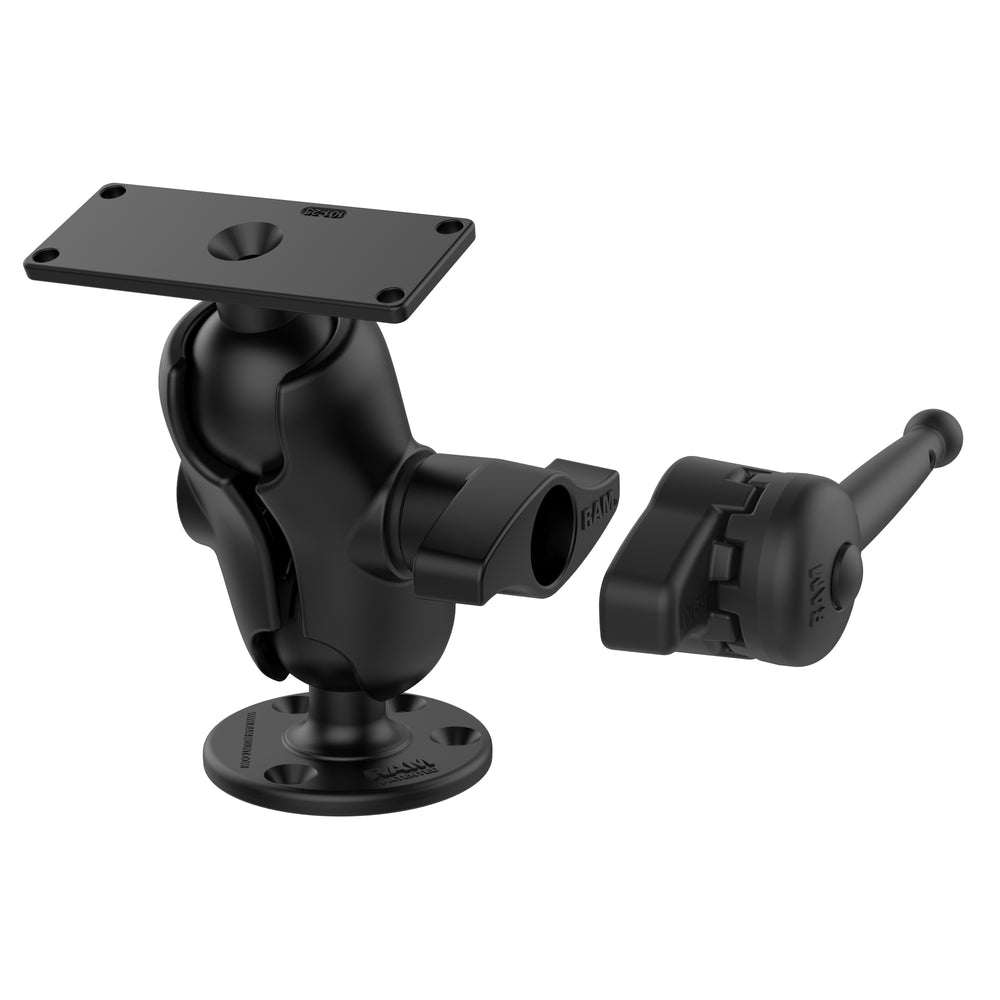

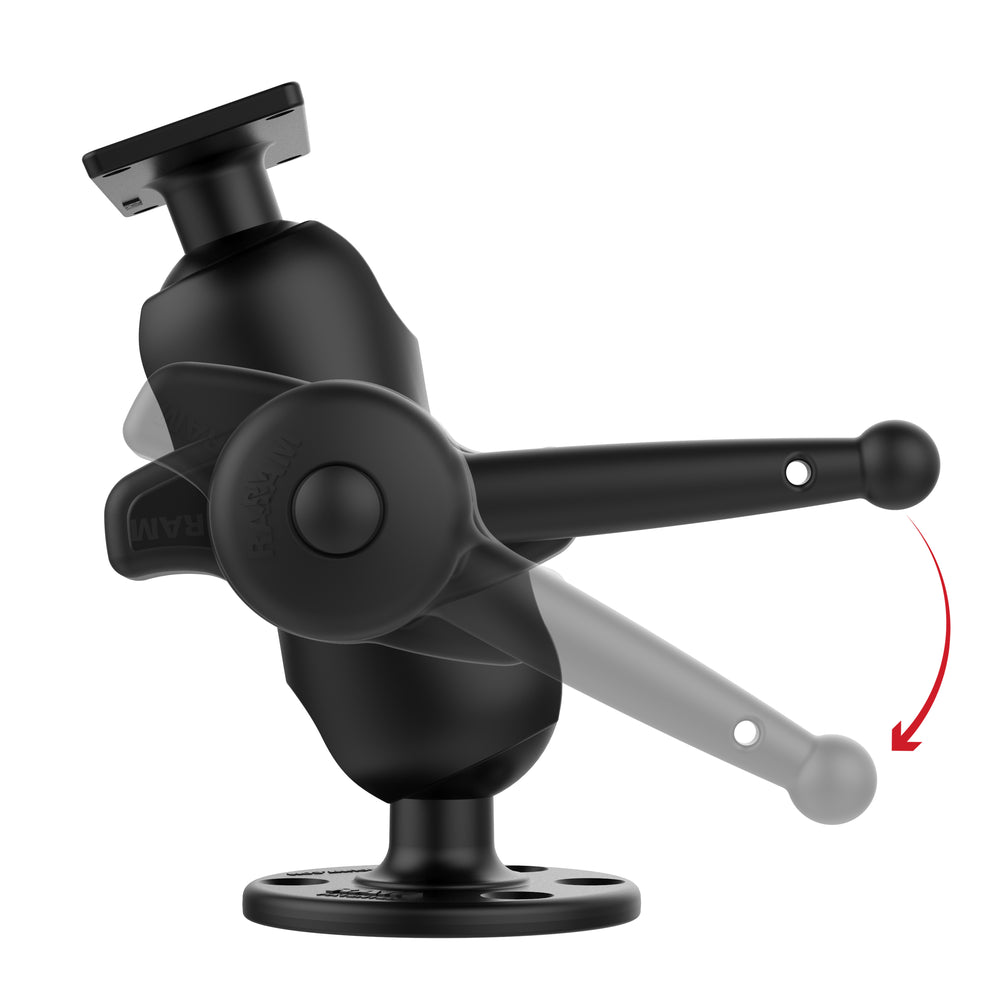

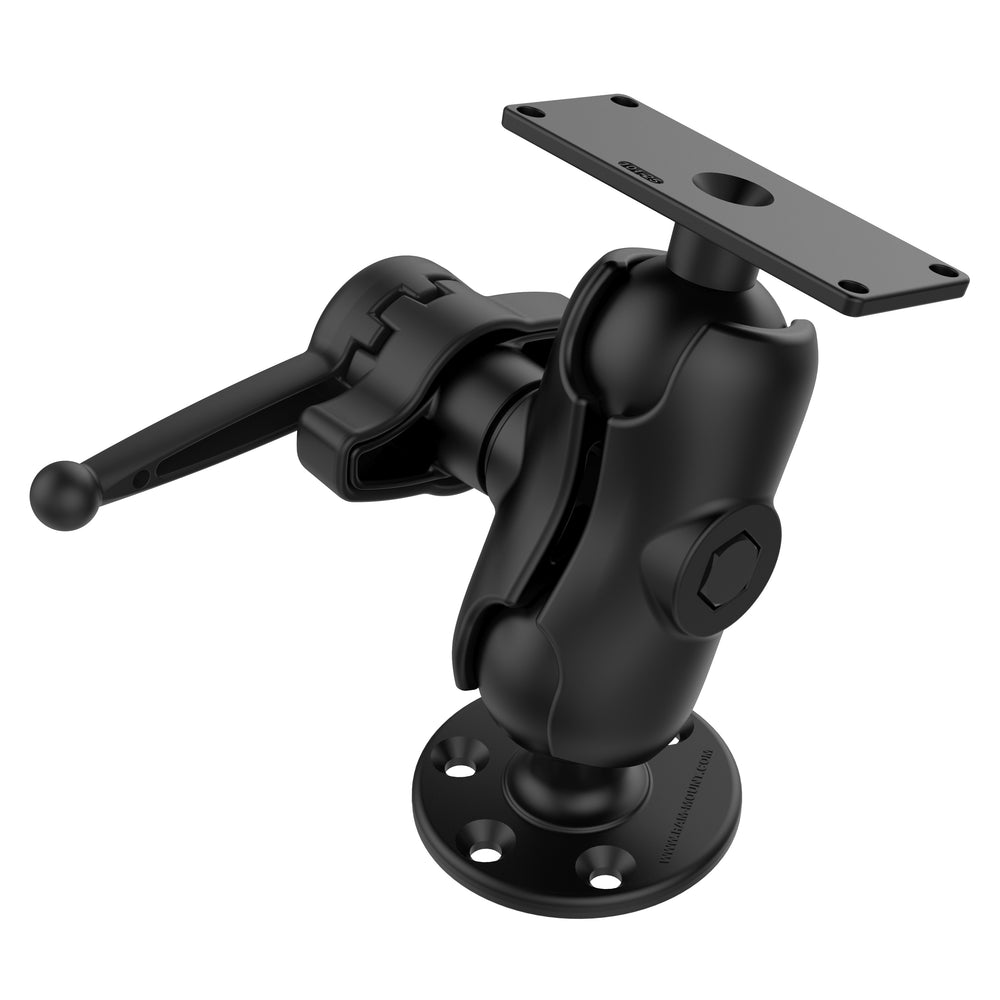

This powder-coated, marine-grade aluminum Humminbird mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, a RAM® Hi-Torq™ Wrench, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with various Humminbird models including the Helix 8, 9, 10, 12, 15, Solix 10, 12 15, and Apex 13 & 16. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle.

Features

  • Complete flat surface, drill-down mounting solution for the Humminbird XPLORE Series, and Helix 8, 9, 10, 12, 15, Solix 10, 12, 15, and Apex 13 & 16; RAM® Mounts ball and socket technology allows for near-infinite adjustability

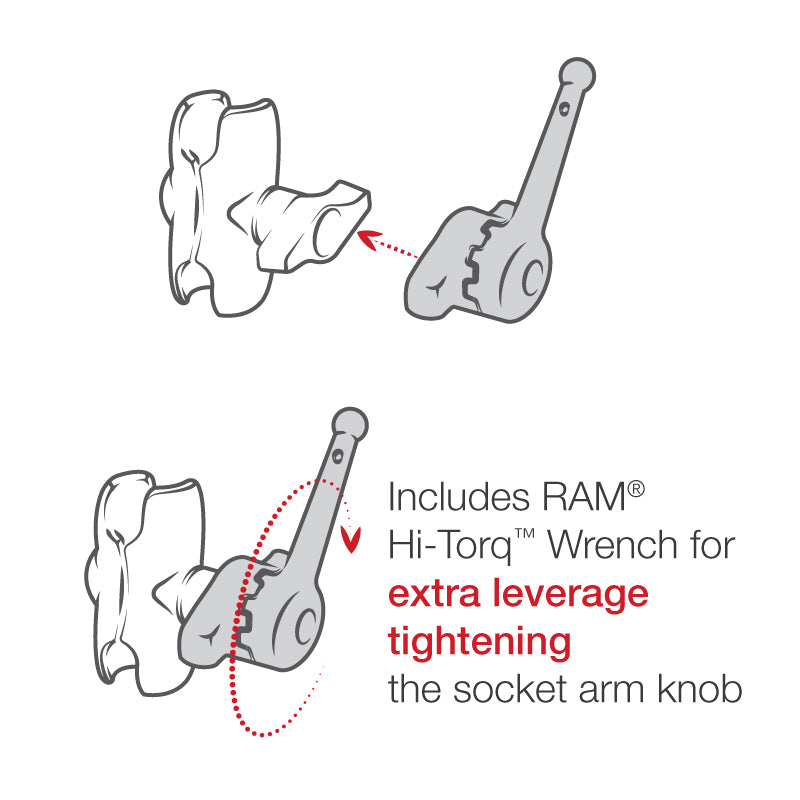

  • Includes 3.68" round base with D size 2.25" rubber ball, short length D size double socket arm, a RAM® Hi-Torq™ Wrench and a 1.5" x 4.5" rectangle base with D size 2.25" rubber ball that connects to your Humminbird Helix marine electronics
  • Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

Tech Specs

  • Product Dimensions: Overall Height: 7.875"
  • Socket to Socket Length: 3.6"
  • Hole Pattern: Rectangular Plate: 1.5" x 4.5", Round Plate: See Drawing
  • Plate Size: Top Plate: 2" x 5", Bottom Plate: 3.68" Diameter
  • Ball Size: D Size (2.25")
  • Weight Capacity: Standard Use: 6 lbs, Heavy-Duty Use: 5 lbs
  • Materials: Marine-grade aluminum
  • Packaging Type: Poly Bag
  • Weight: 3.5 lb

Compatibility

  • Humminbird: Apex 13, Apex 16, Helix 8, Helix 9, Helix 10, Helix 12, Helix 15, Solix 10, Solix 12, Solix 15, XPLORE 9, XPLORE 10, XPLORE 12

Product Guides

Package Content

  • 1 x RAM® Drill-Down Ball Mount for Humminbird Helix 8-15, XPLORE & Apex (RAM-D-202-25-C-202-KNOB9HU)

FAQs

  • Q: What screws are used to attach the RAM Mount to the gimbal bracket?
    A: Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
