GDS® Modular 10-30V Charger with Male USB Type-C & RP1226 Connector (RAM-GDS-CHARGE-V7C-RP1226U)

GDS® Modular 10-30V Charger with Male USB Type-C & RP1226 Connector (RAM-GDS-CHARGE-V7C-RP1226U)

RAM-GDS-CHARGE-V7C-RP1226U
$106.00 AUD
$106.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

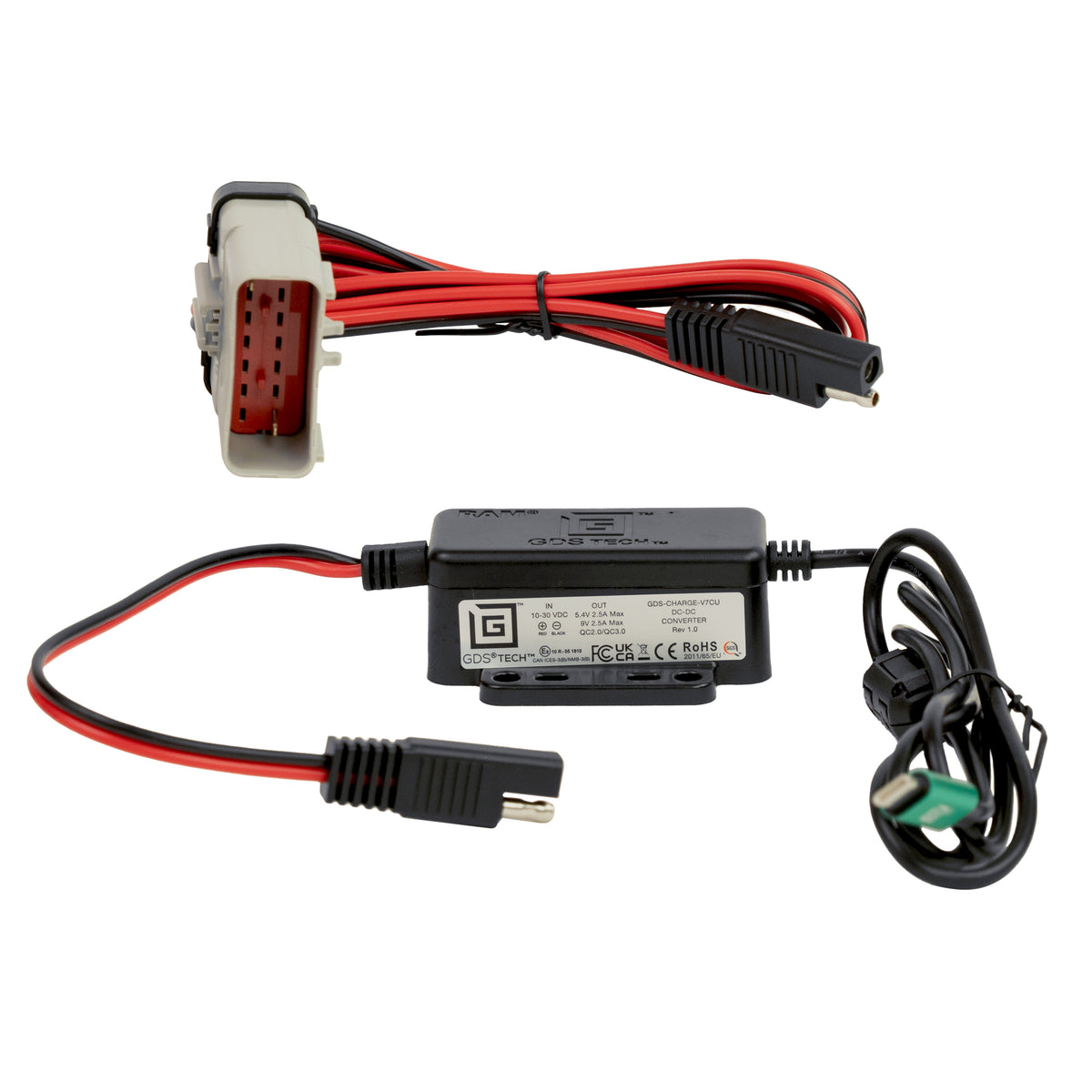

The GDS® Modular 10-30V Charger with Male USB Type-C & RP1226 Connector (RAM-GDS-CHARGE-V7C-RP1226U) connects to a power source via RP1226 connector and provides power to any GDS® vehicle solution. When it comes time to upgrade, the quick disconnect feature enables you to leave the RP1226 connector plugged in and attach the new charger components. Always Protected. Always Connected.®

Features

  • Modular charger features USB Type-C female connector
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Packaging Type: Poly Bag
  • Input Voltage: 10-30VDC
  • Output Voltage: 5.42-9VDC
  • Output Current: 2.5A max
  • Input Connector: RP1226 Connector
  • Input Cable Length: 1 Meter
  • Output Connector: USB Type-C Male
  • Output Cable Length: 1 Meter
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +70°C
  • Regulatory:
    • Over Voltage Protection
    • Short Circuit Protection
    • Reverse Polarity Protection
    • RoHS Compliance
    • WEEE Compliance
    • SAE J-1113-5 Load Dump (Transient Voltage)
    • Moisture Resistant
  • Certifications:
    • CE Certification
    • E-Mark Certification
    • RCM Certification
    • FCC Certification
    • UL 62368-1 Certificaton
  • Warranty: 3 year warranty
  • Weight: 0.39 lb
  • Additional Information: This charger will not support Power Delivery. To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Package Content

  • 1 x GDS® Modular 10-30V Charger with Male USB Type-C & RP1226 Connector (RAM-GDS-CHARGE-V7C-RP1226U)
