GDS® Uni-Conn™ Power + Dual USB-A Dock (RAM-GDS-DOCK-U1CD2U)
GDS® Uni-Conn™ Power + Dual USB-A Dock (RAM-GDS-DOCK-U1CD2U)
SKU:RAM-GDS-DOCK-U1CD2U
Couldn't load pickup availability

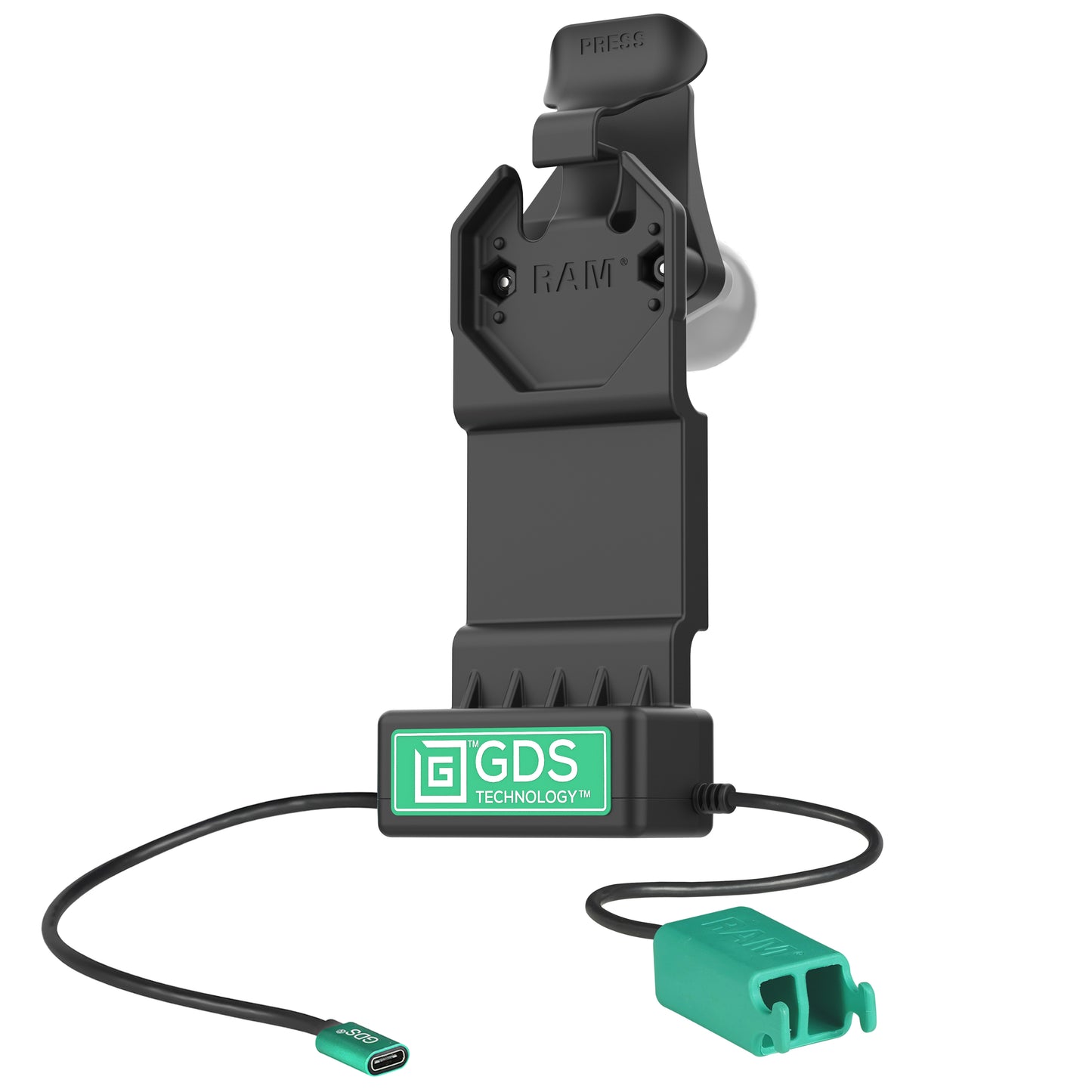

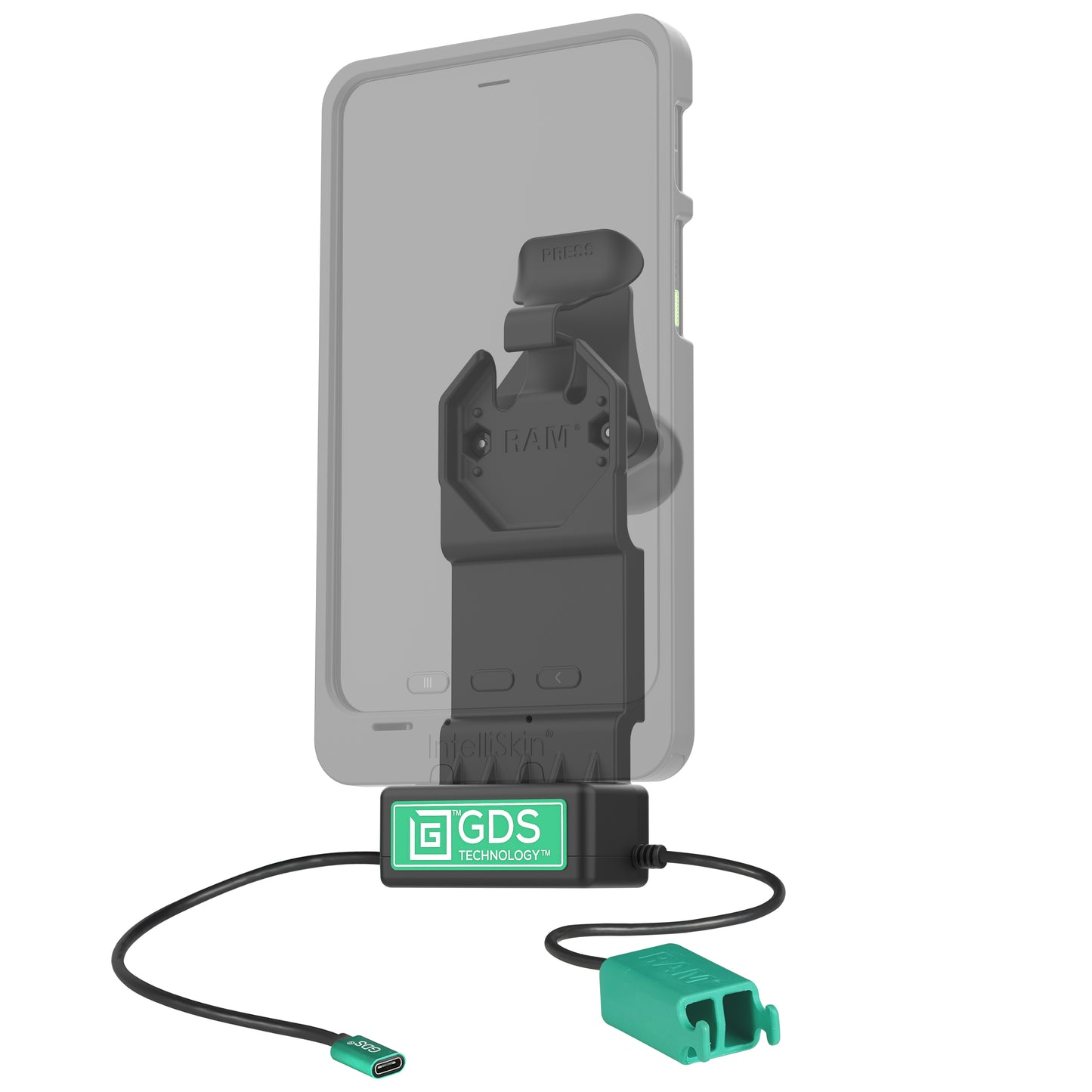

The GDS Uni-Conn Dock + Dual USB-A (RAM-GDS-DOCK-U1CD2U) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to two peripheral devices into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All.
Features
Features

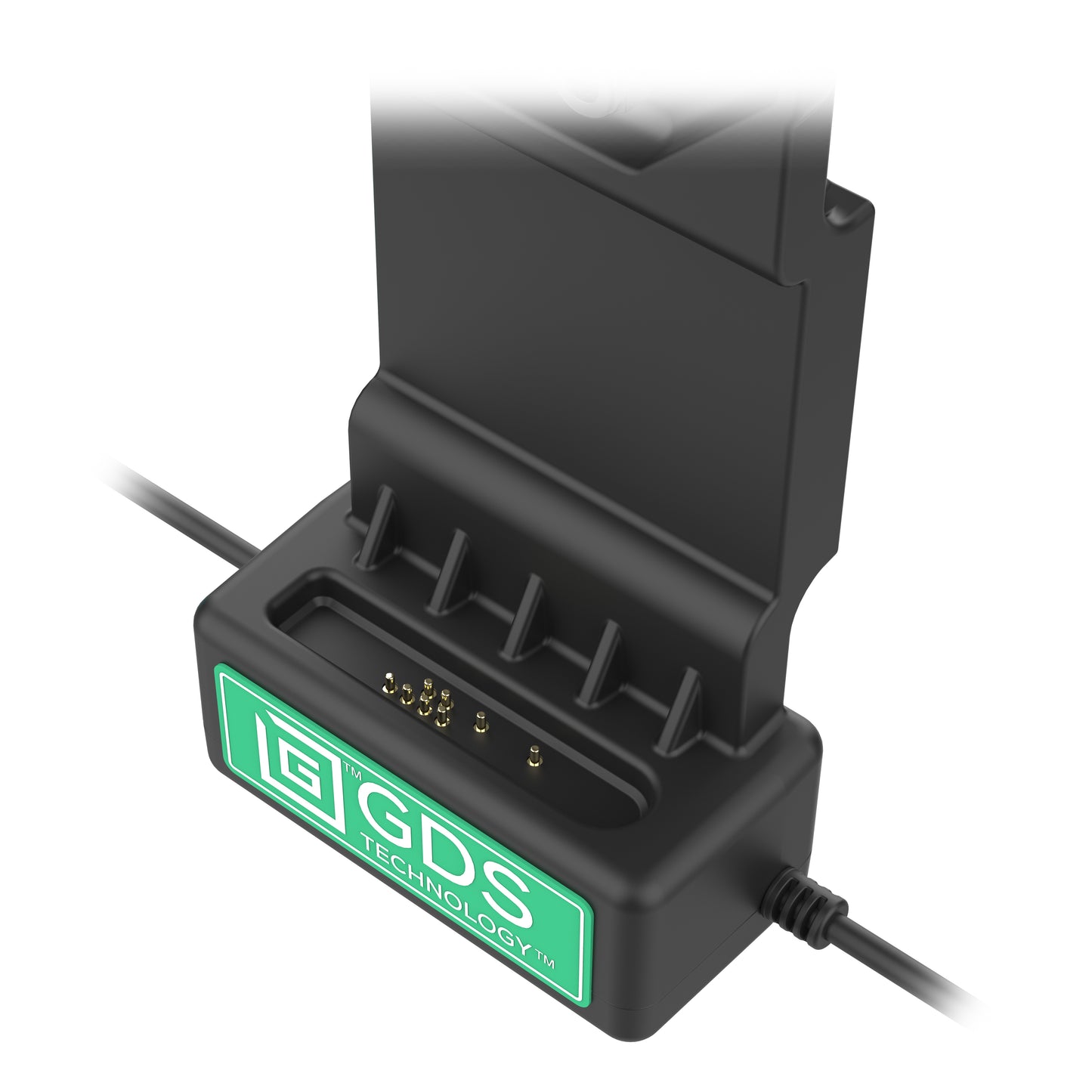

- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to two additional USB peripherals

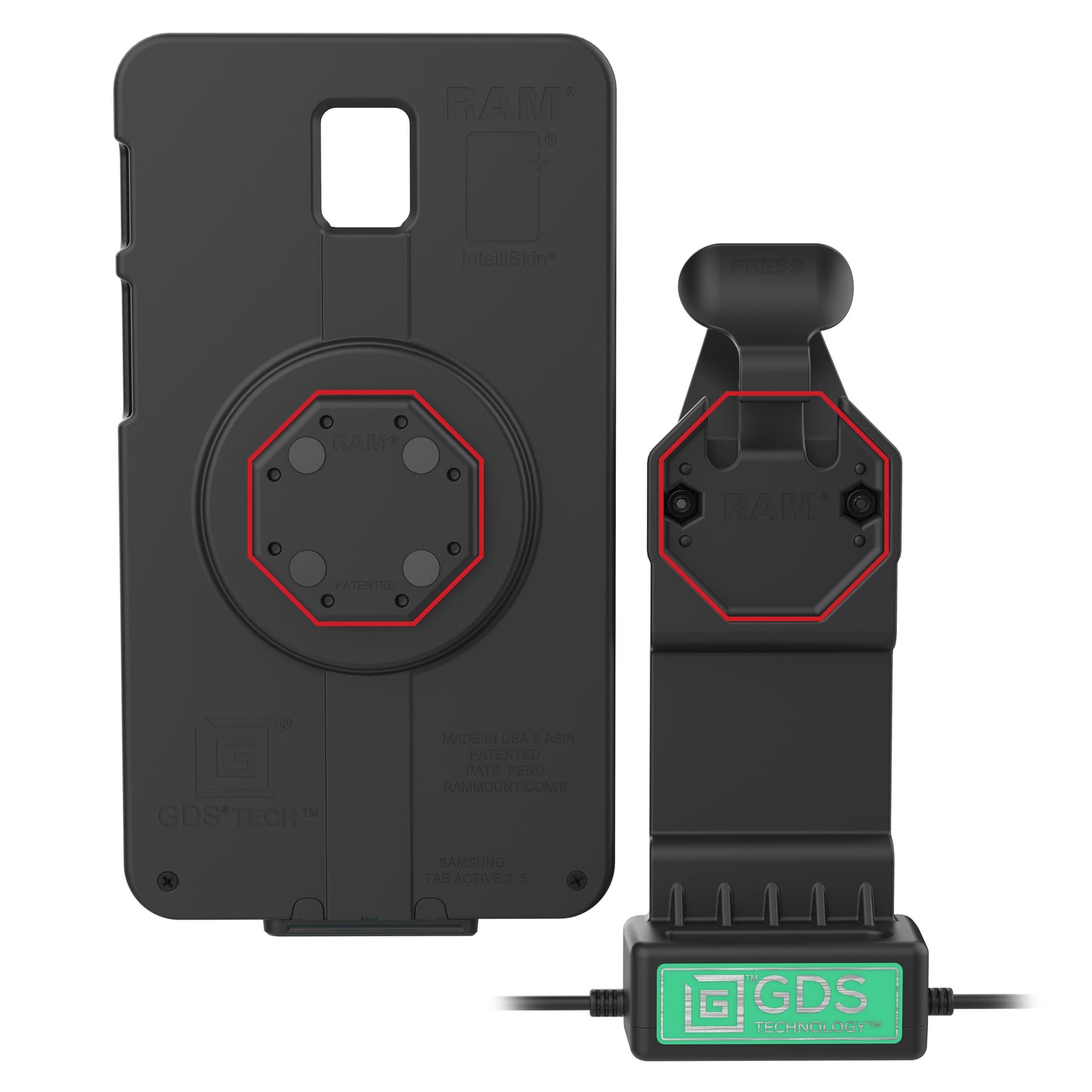

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to two additional USB peripherals
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 0.57 lb

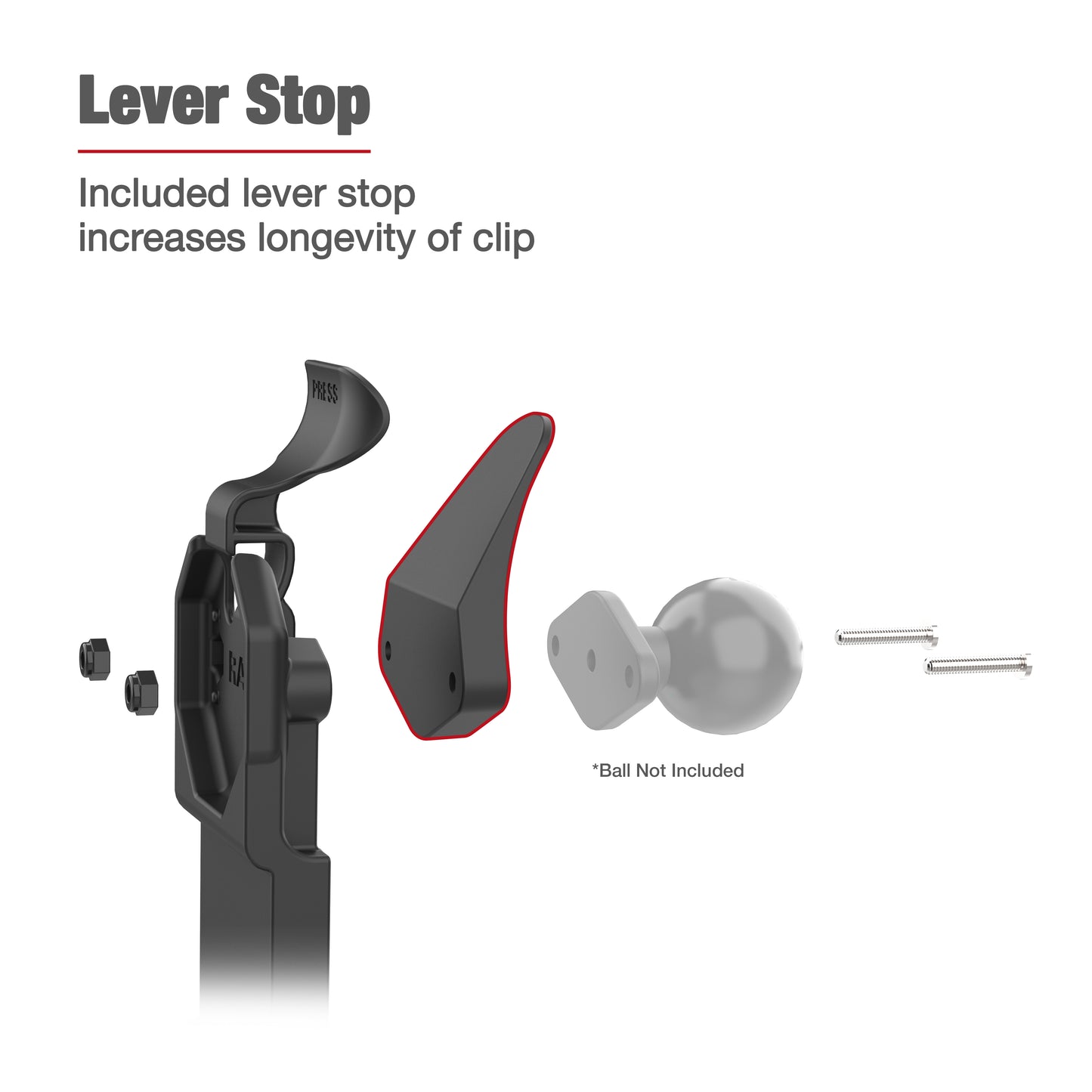

- Hardware Included: (1) Lever Stop | (2) #8-32 x 1" Machine Screws | (2) #8-32 Nylock Nuts | (1) Cable Clamp Kit
- Product Dimensions: Overall Width: 3.16" | Overall Height: 8.44" | Overall Depth: 3.03"
- Hole Pattern: 2-Hole AMPS: 1.912"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Output Voltage: 5V - 12V @ 3A
- Power Output: 15W
- Input Connector: USB Type-C | USB Type A for 2 Peripherals
- Input Cable Length: 215mm
- Output Cable Length: 215mm
- Peripheral Output: 900mAh (per port)
Package Content
Package Content
- 1 x GDS® Uni-Conn™ Power + Dual USB-A Dock (RAM-GDS-DOCK-U1CD2U)
