GDS® Uni-Conn™ Powered Snap-In Dock with PoE Adapter (RAM-GDS-DOCK-U3EU)

GDS® Uni-Conn™ Powered Snap-In Dock with PoE Adapter (RAM-GDS-DOCK-U3EU)

SKU:RAM-GDS-DOCK-U3EU

Regular price $502.00 AUD
Regular price Sale price $502.00 AUD
Sale Sold out
Tax included.

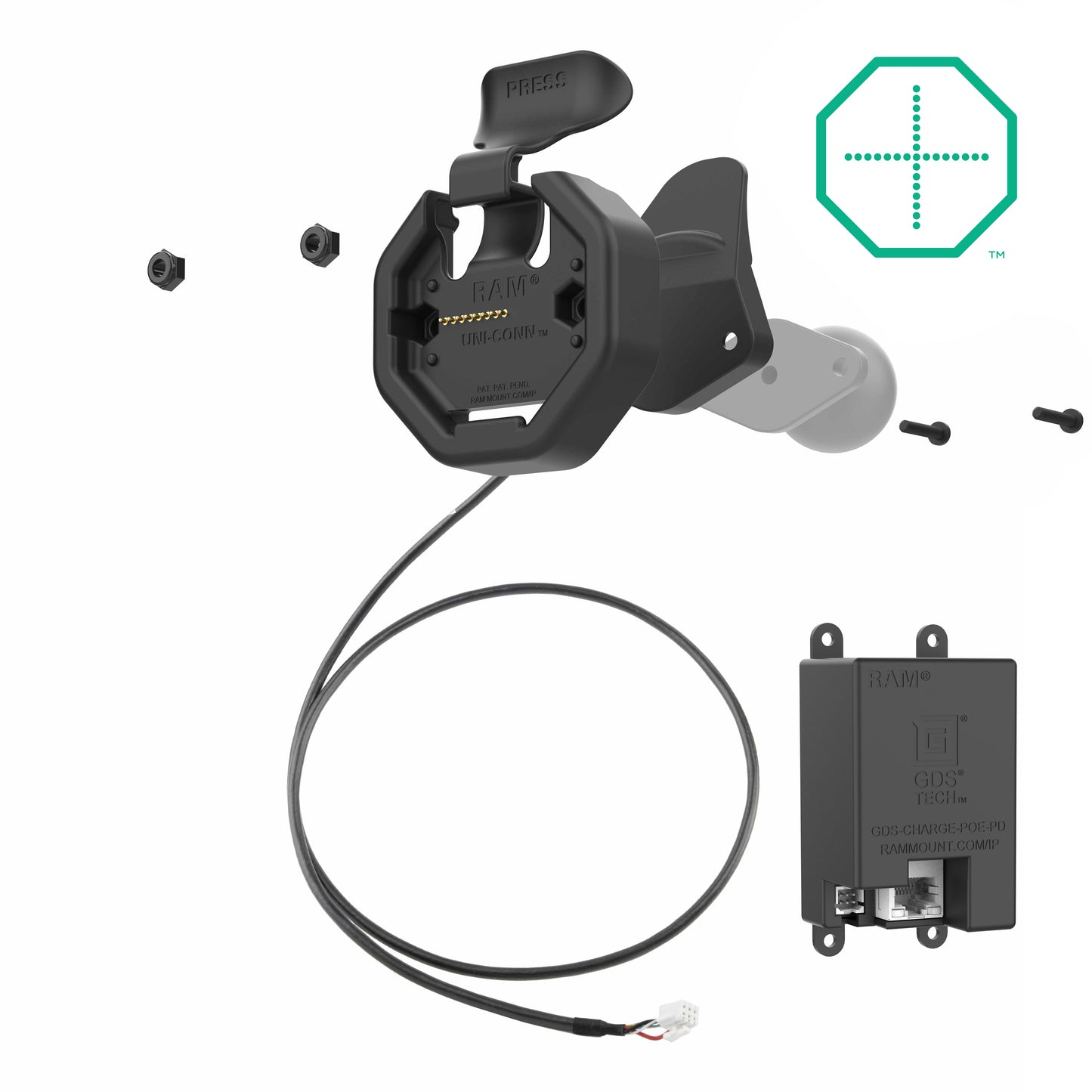

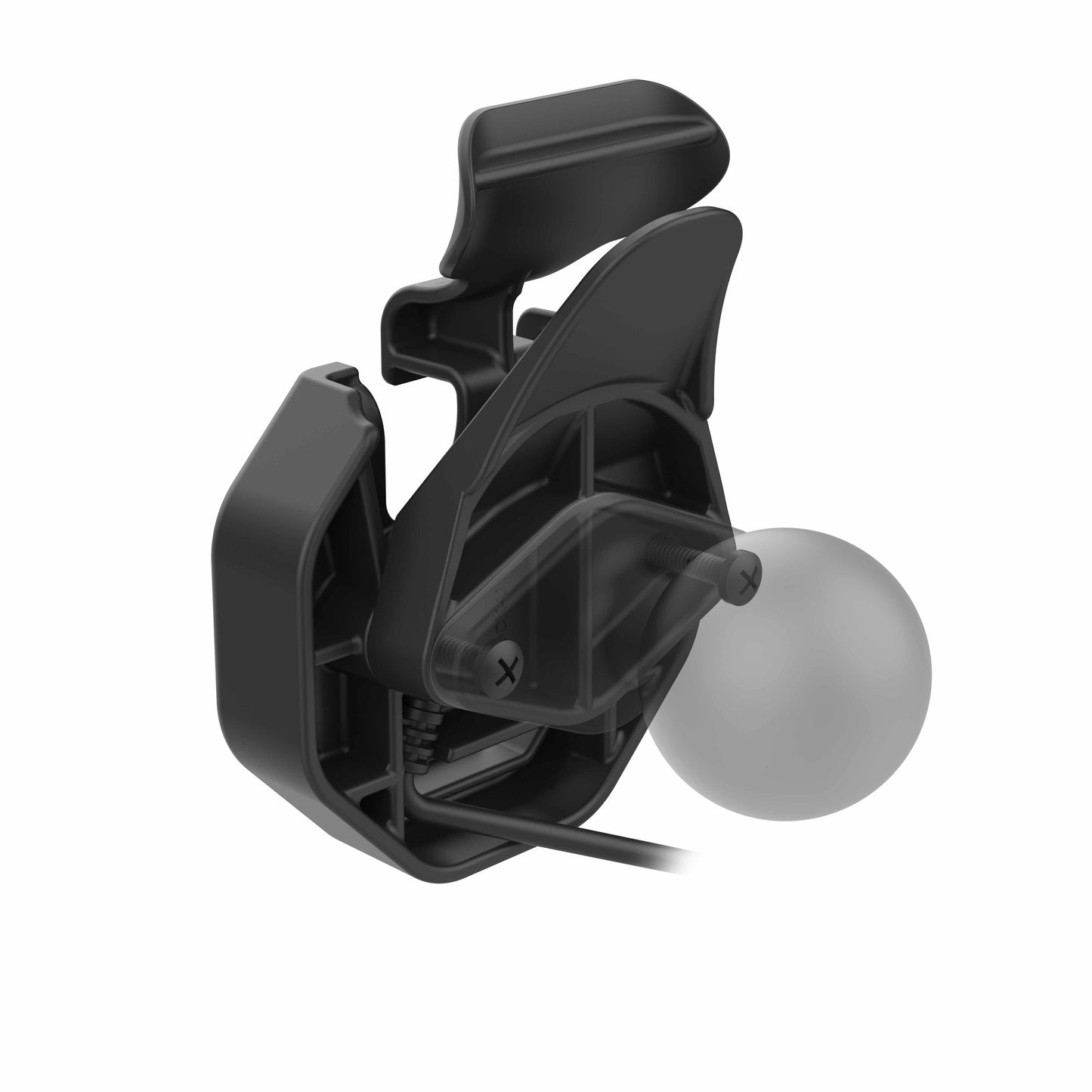

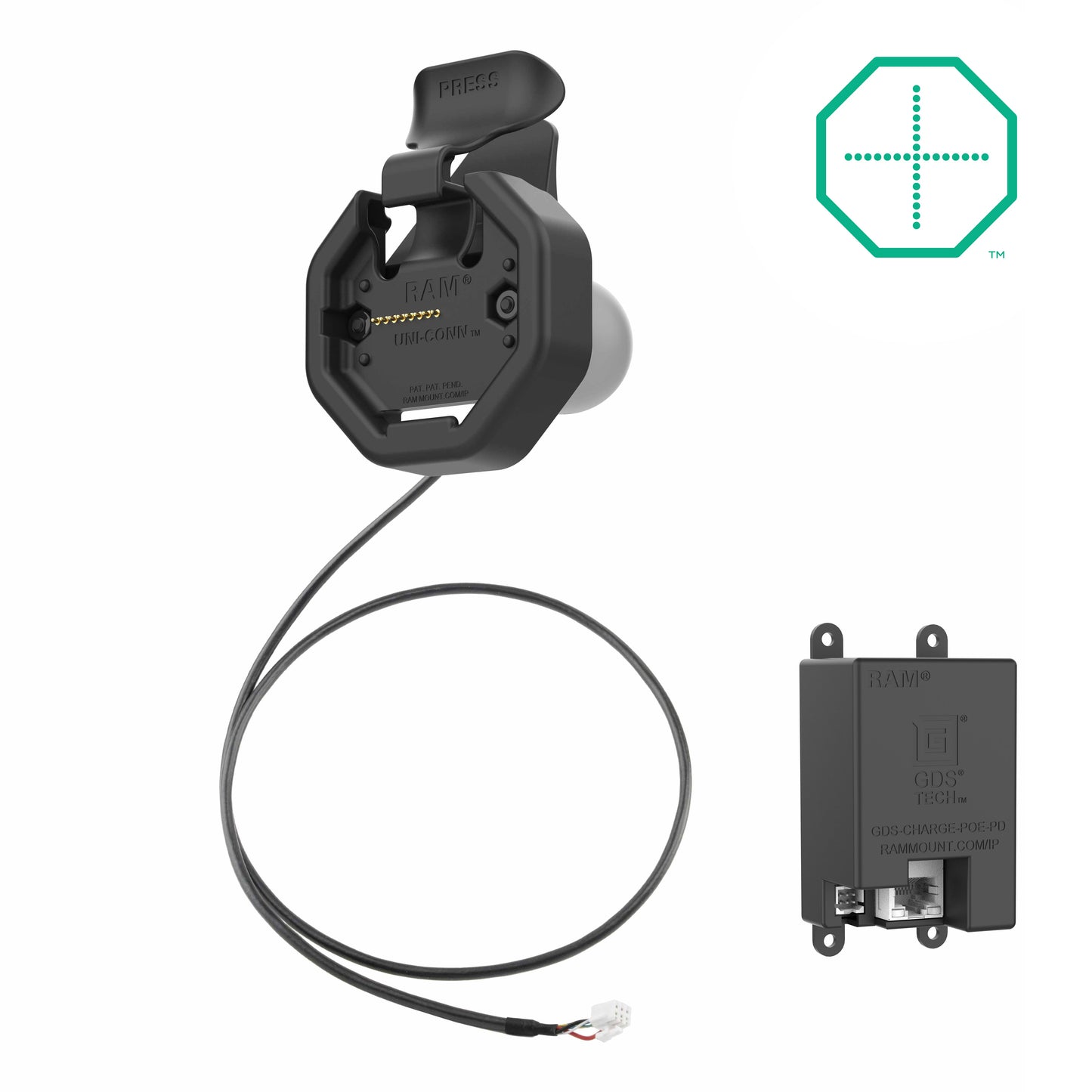

The GDS Uni-Conn Powered Snap-In Dock with PoE Adapter(RAM-GDS-DOCK-U3EU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin Thin-Case with rear pogo pads. Power is provided to the pogo pins integrated into the GDS Uni-Conn adapter via the JST connector and PoE Adapter. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM ball and socket mounting system with a RAM Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All Always Protected. Always Connected.

Features

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • Backed by a 3-year warranty

Tech Specs

  • Product Weight: 0.50 lb
  • Hardware Included: (1) Lever Stop | (1) RAM® PoE to PD Charging Module | (2) #8-32 x 1.125" Machine Screws | (2) #8-32 Nylock Nuts
  • Hole Pattern: 2-Hole AMPS: 1.912"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Output Voltage: USB PD 3.0: | 5V @ 3A | 9V @ 2.2A | 12V @ 1.67A
  • Power Output: 20W Max
  • Input Connector: JST Connector
  • Input Cable Length: 800mm

Package Content

  • 1 x GDS® Uni-Conn™ Powered Snap-In Dock with PoE Adapter (RAM-GDS-DOCK-U3EU)
