GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLL-U1CP-RJ45AU)
GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLL-U1CP-RJ45AU)
SKU:RAM-GDS-DOCKLL-U1CP-RJ45AU
Couldn't load pickup availability

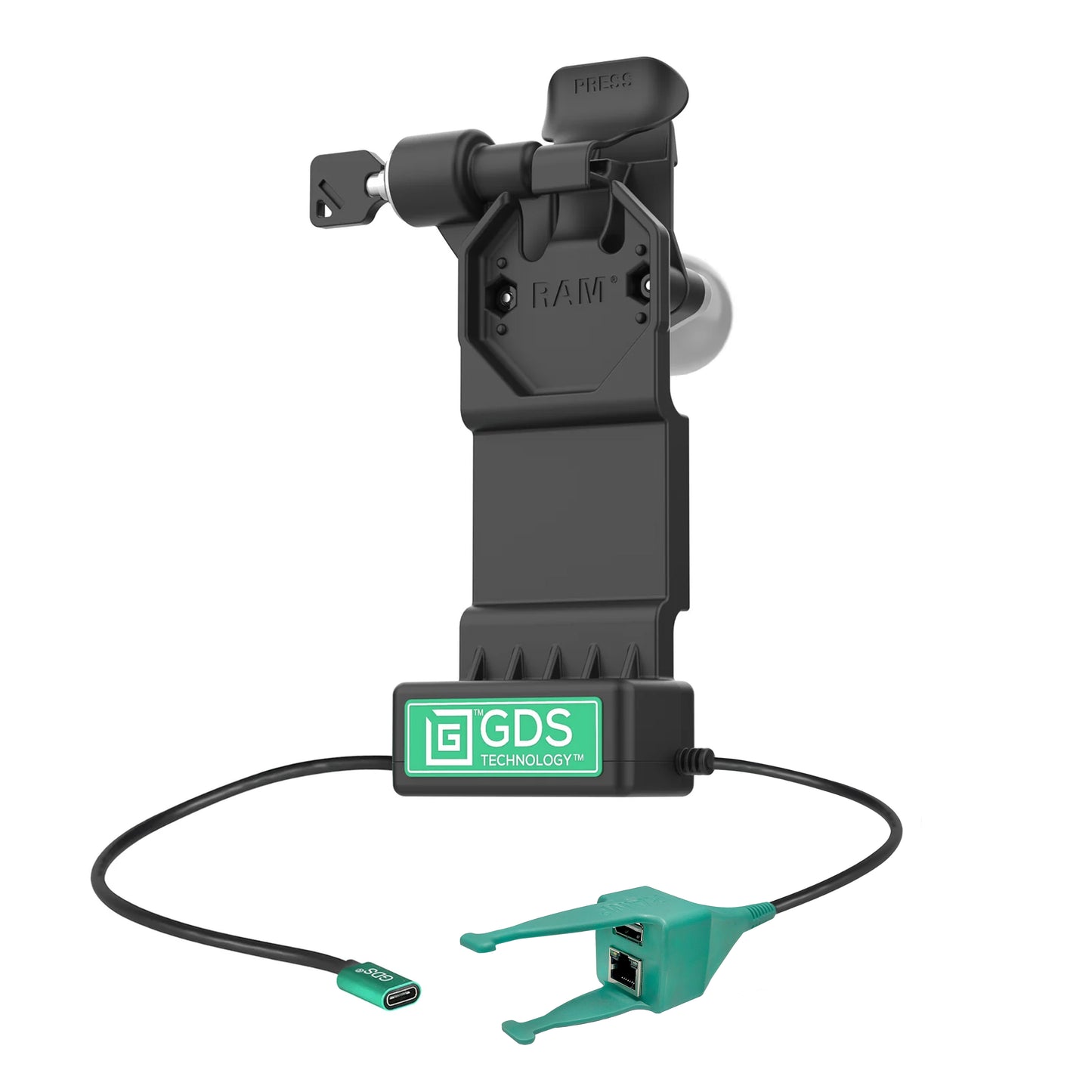

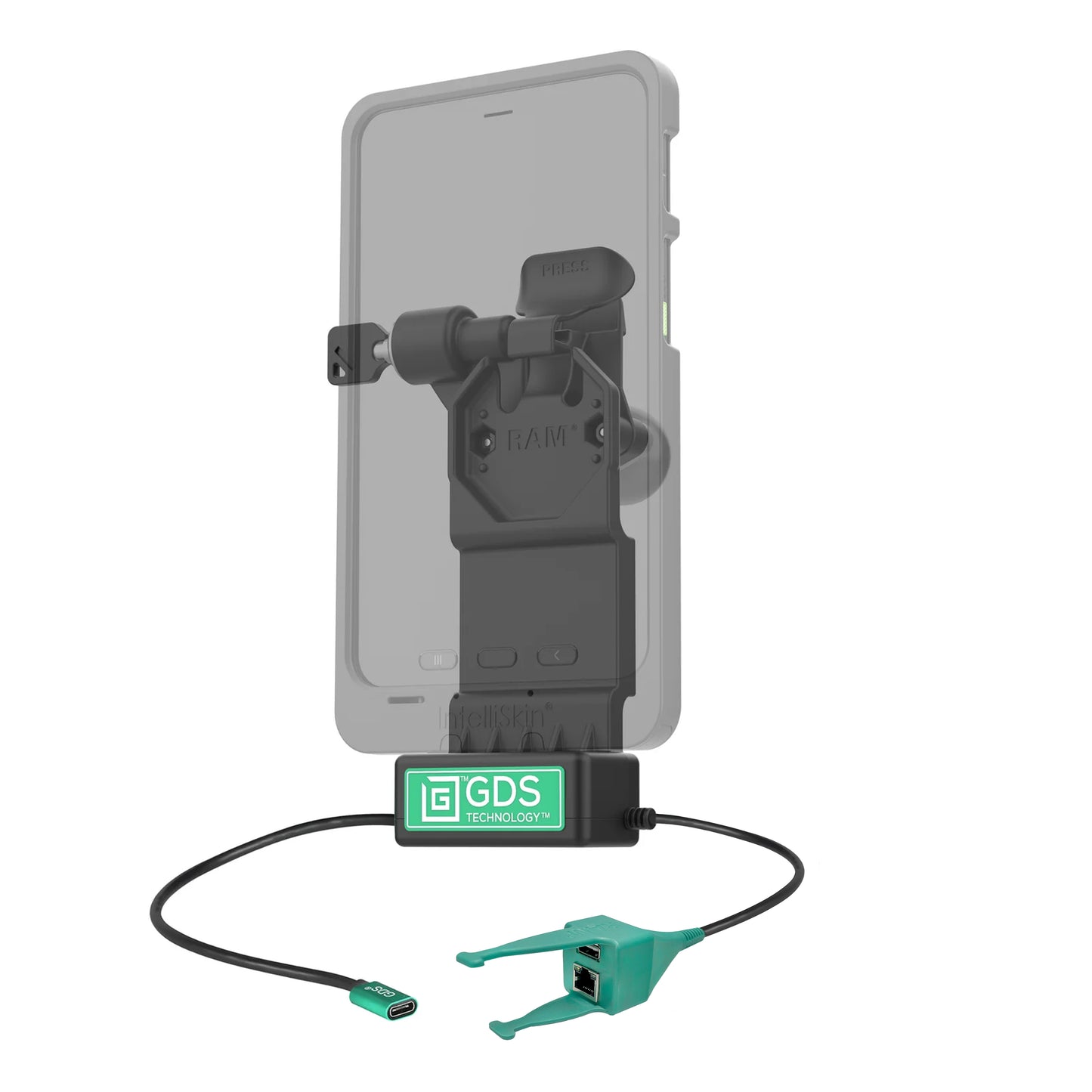

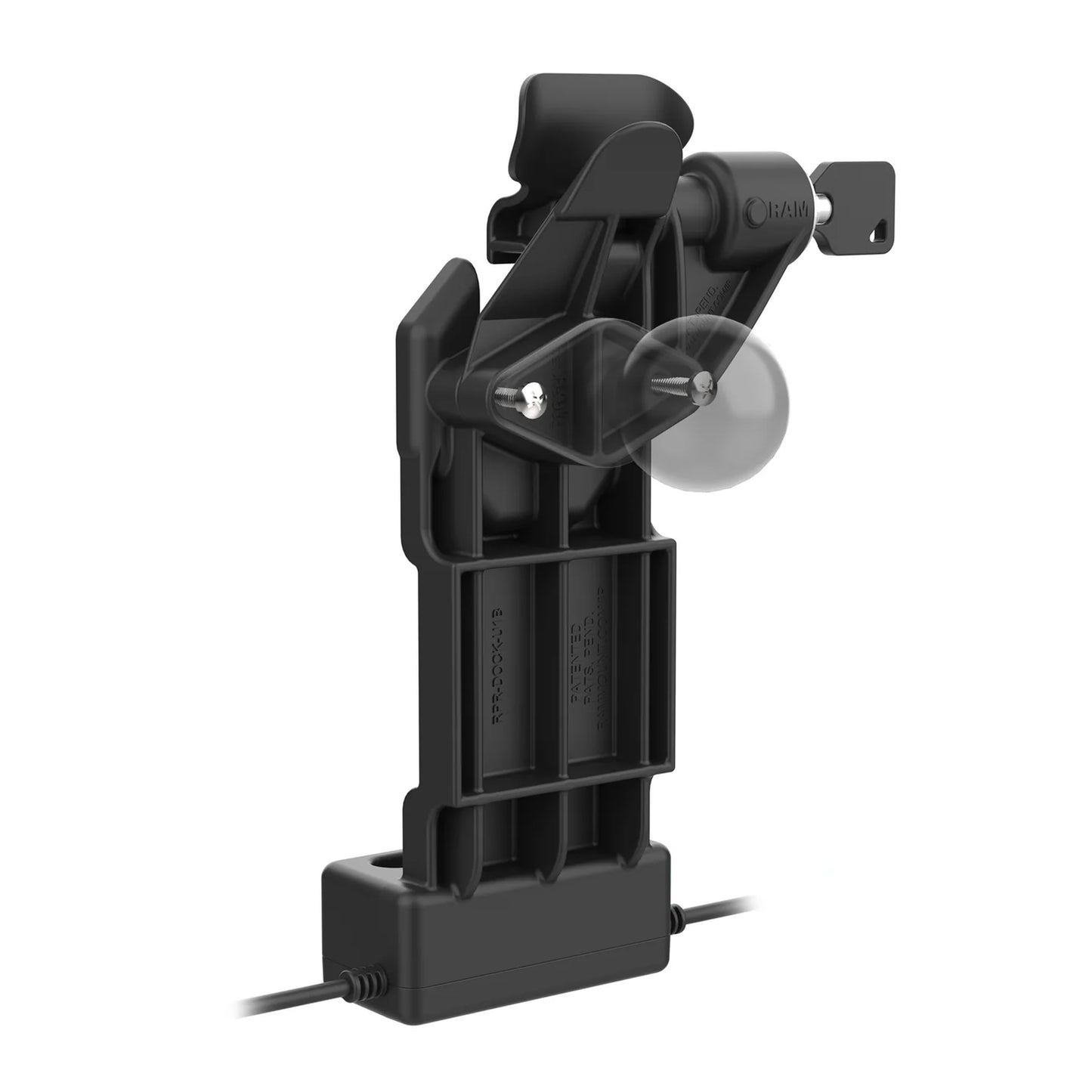

The GDS Uni-Conn Left Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLL-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock on the left side for additional theft deterrence. For the same dock with a lock on the right side, see RAM-GDS-DOCKLR-U1CP-RJ45AU. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All.
Features
Features

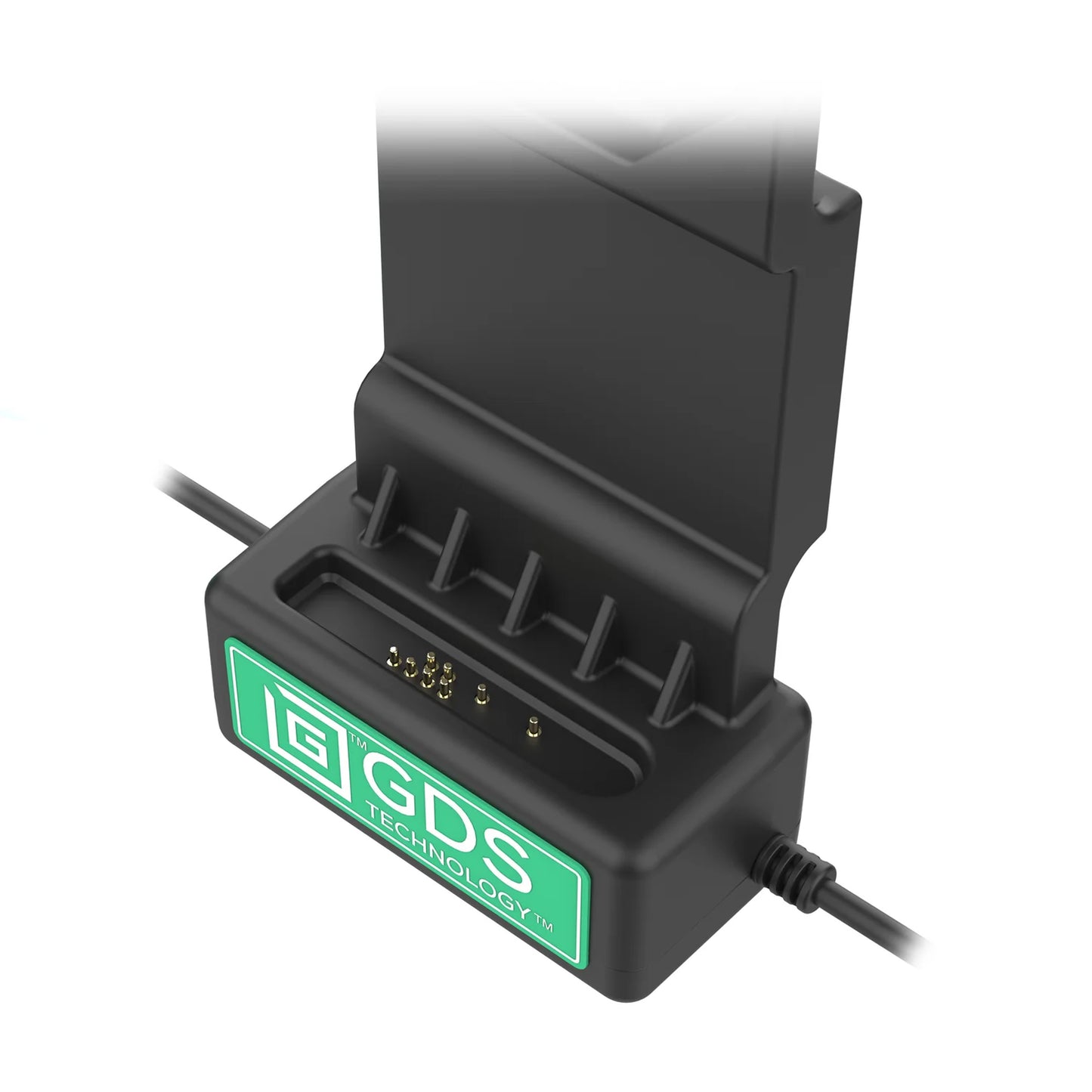

- Snap-in locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB-A peripheral

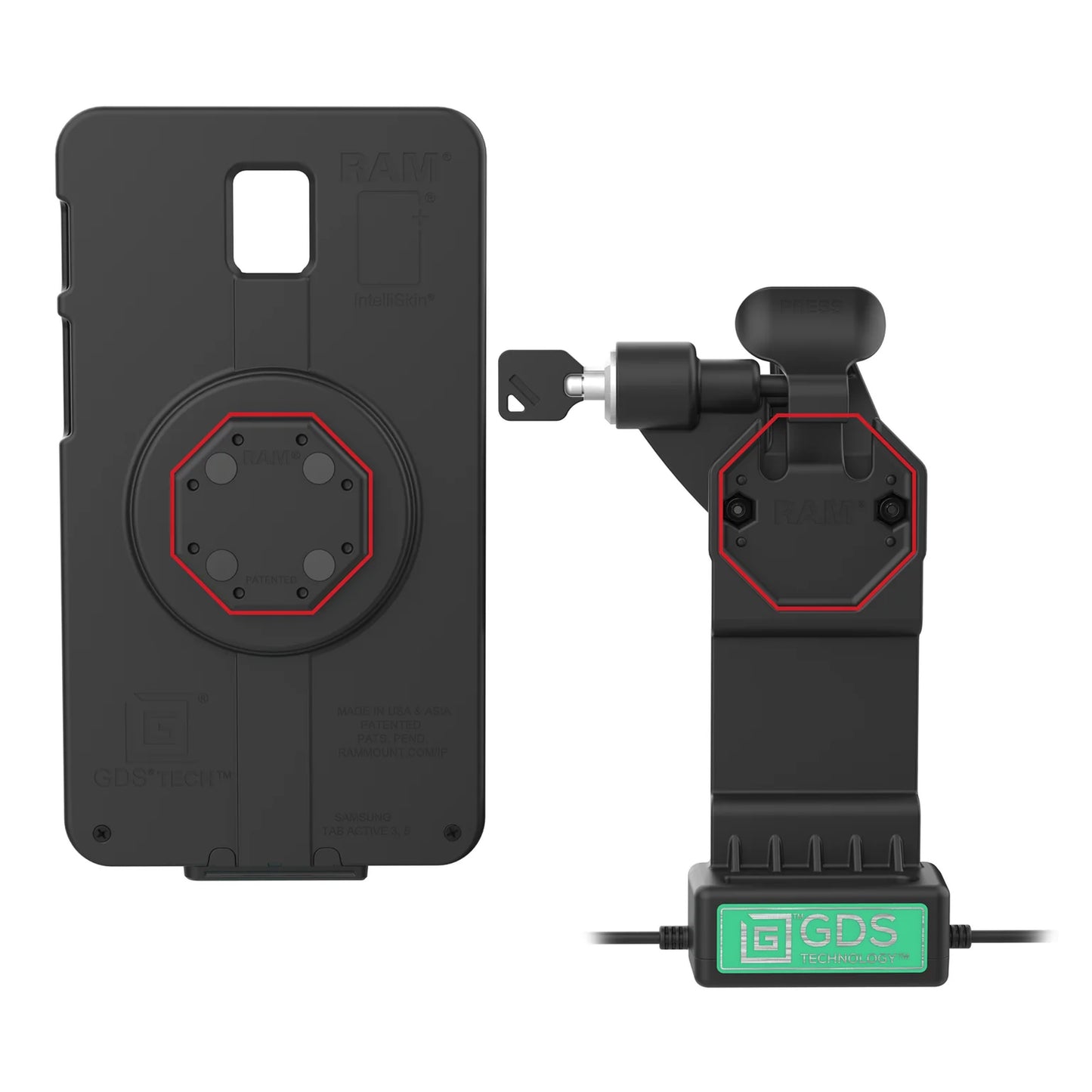

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 0.83 lb

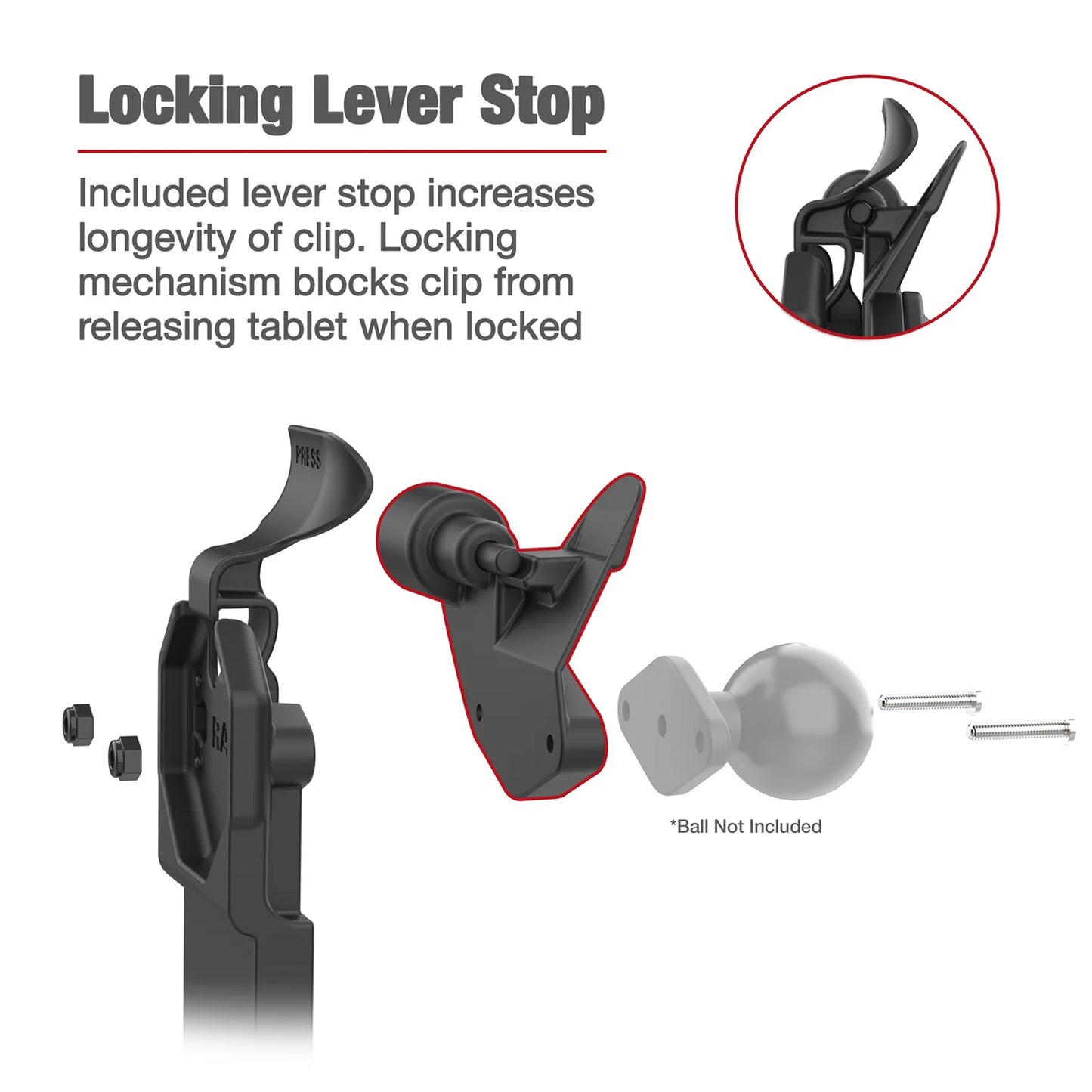

- Hardware Included: (2) Keys | (1) Locking Lever Stop | (2) #8-32 x 1" Machine Screws | (2) #8-32 Nylock Nuts | (1) Cable Clamp Kit
- Product Dimensions: Overall Width: 4.27" | Overall Height: 8.44" | Overall Depth: 3.03"
- Hole Pattern: 2-Hole AMPS: 1.912"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Output Voltage: Type-C Tablets: 5V - 12V @ 3A max | mUSB Tablets: 5V @ 1.5A max
- Power Output: 15W
- Input Connector: USB Type-C (Power In)
- Input Cable Length: 215mm
- Output Connector: (1) USB Type-A & (1) RJ45 Female
- Output Cable Length: 215mm
- Peripheral Output: 900mAh
Package Content
Package Content
- 1 x GDS® Uni-Conn™ Left Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLL-U1CP-RJ45AU)
