GDS® Uni-Conn™ Powered Left Locking Snap-In Dock with USB-C Connector (RAM-GDS-DOCKLL-U3CPU)
GDS® Uni-Conn™ Powered Left Locking Snap-In Dock with USB-C Connector (RAM-GDS-DOCKLL-U3CPU)
SKU:RAM-GDS-DOCKLL-U3CPU
Couldn't load pickup availability

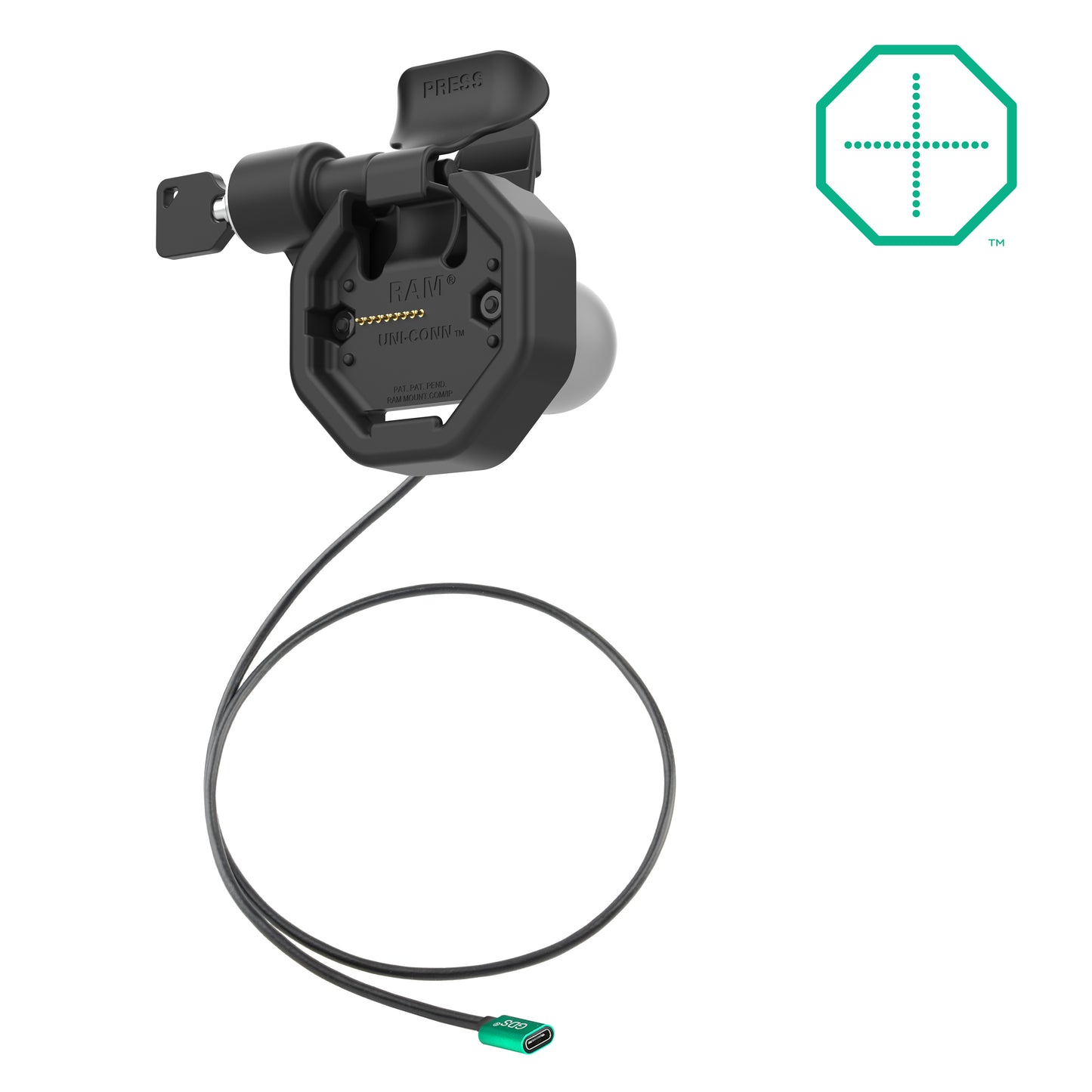

The GDS Uni-Conn Left Locking Powered Snap-In Dock with USB-C Connector (RAM-GDS-DOCKLL-U3CPU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin Thin-Case with rear pogo pads and features a key lock for additional theft deterrence. Power is provided to the pogo pins integrated into the GDS Uni-Conn adapter via the USB-C connector. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM ball and socket mounting system with a RAM Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All Always Protected. Always Connected.
Features
Features
- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
- USB Type-C female connector enables high-speed charging capabilities

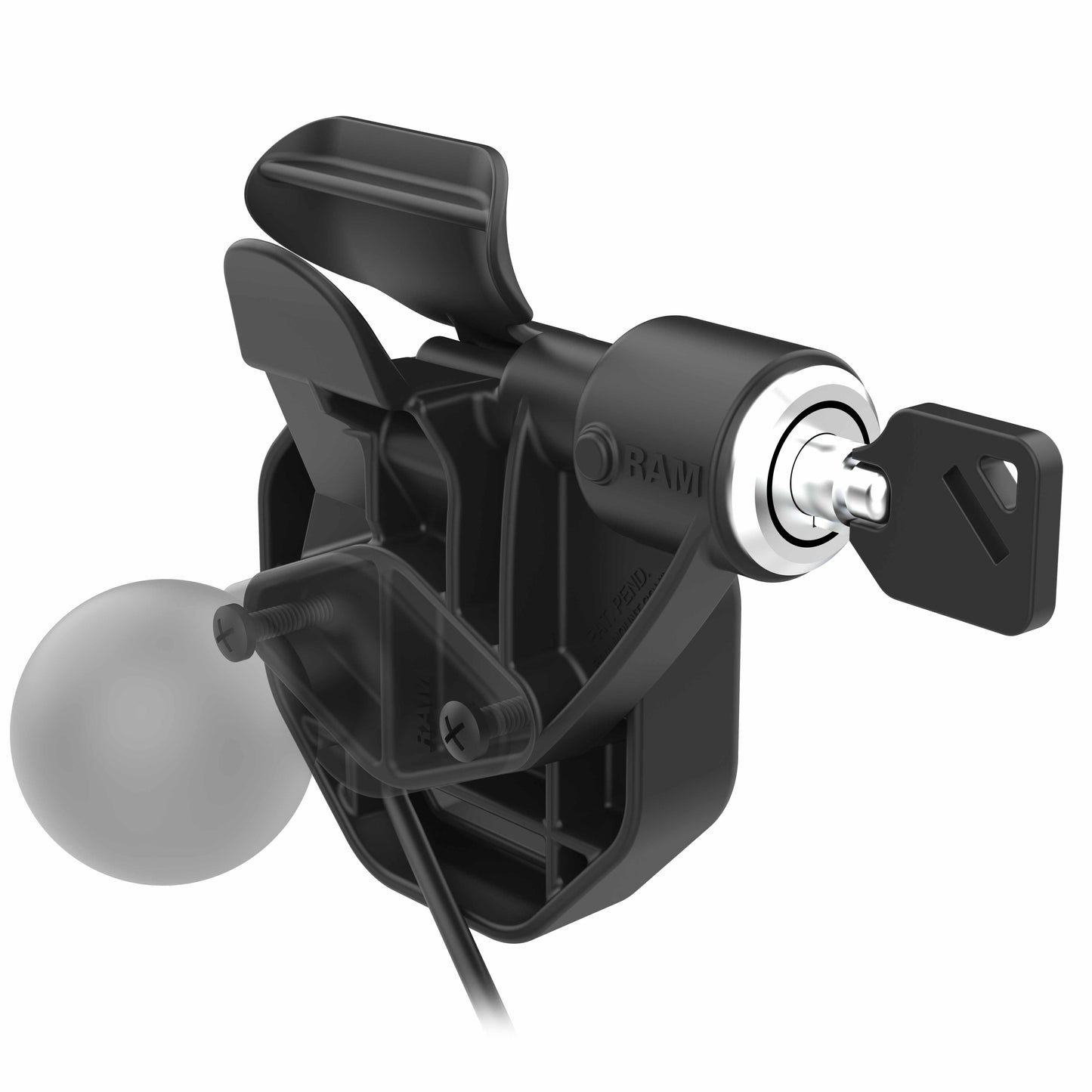

- Left side key lock provides additional theft deterrence
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 0.53 lb

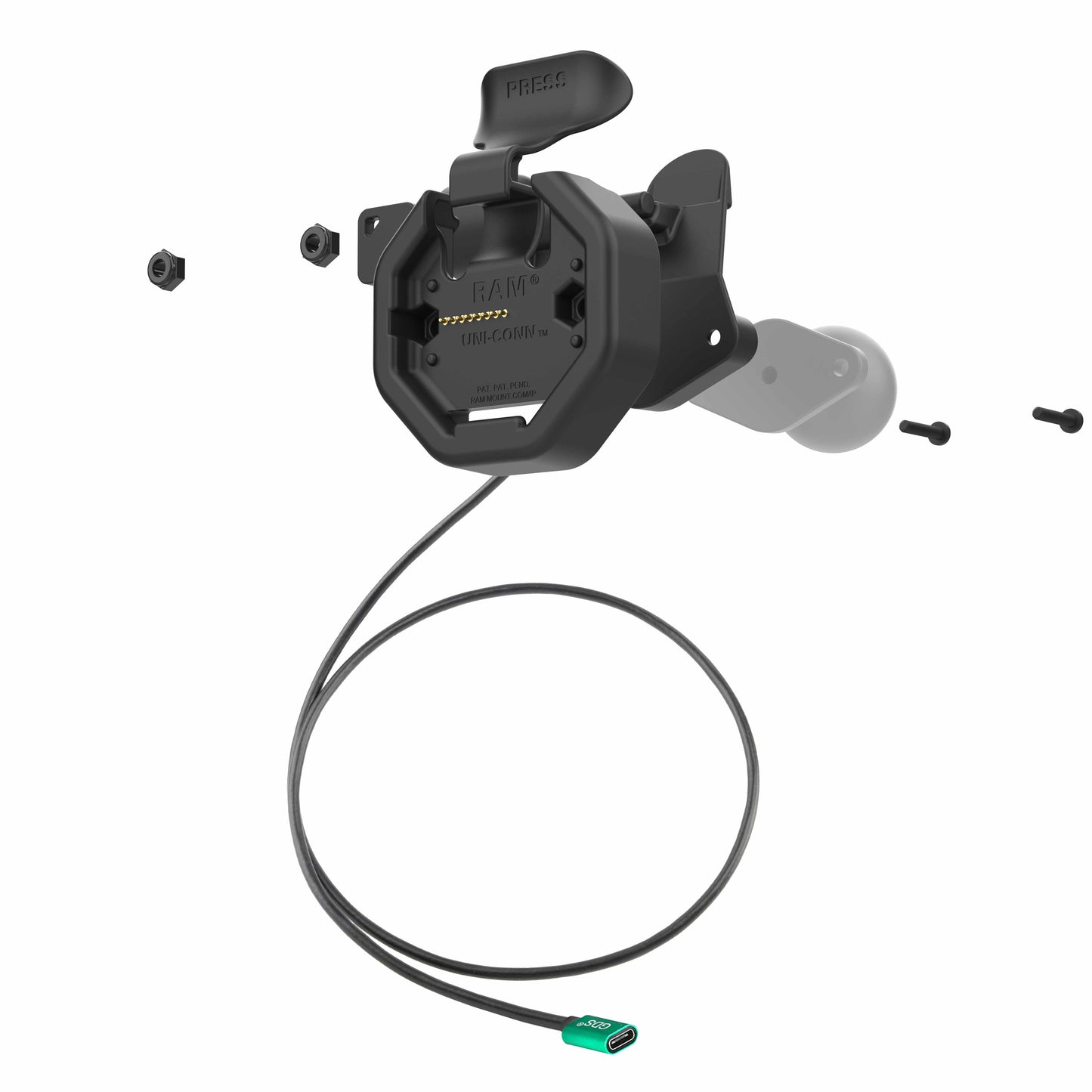

- Hardware Included: (2) Keys | (1) Locking Lever Stop | (2) #8-32 x 1.125" Machine Screws | (2) #8-32 Nylock Nuts
- Hole Pattern: 2-Hole AMPS: 1.912"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Output Voltage: USB-C Tablets: 5V - 20V @ 3A Max | mUSB Tablets: 9V @ 1.67A Max
- Power Output: 60W Max
- Input Connector: USB Type-C (Female)
- Input Cable Length: 800mm
Package Content
Package Content
- 1 x GDS® Uni-Conn™ Powered Left Locking Snap-In Dock with USB-C Connector (RAM-GDS-DOCKLL-U3CPU)
