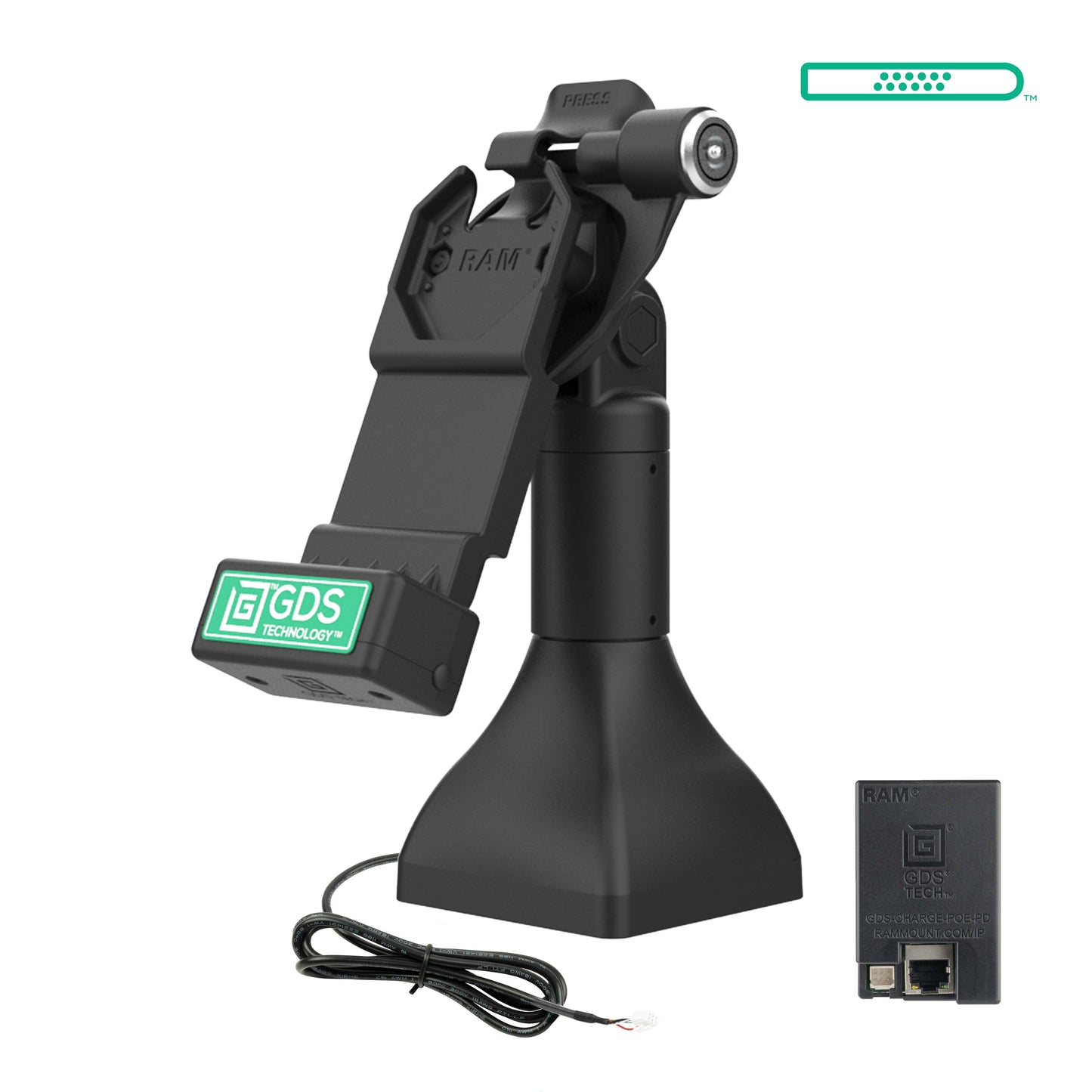

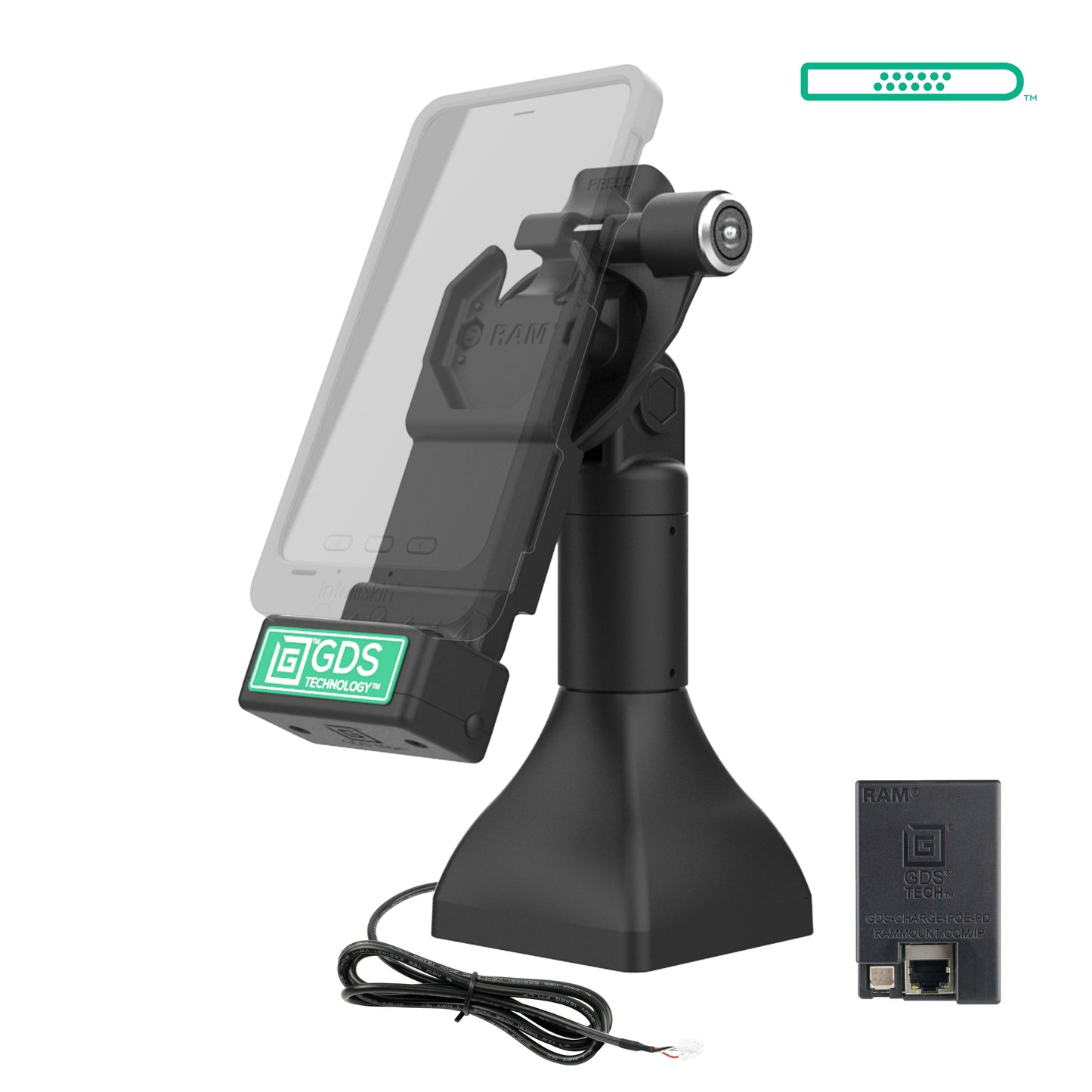

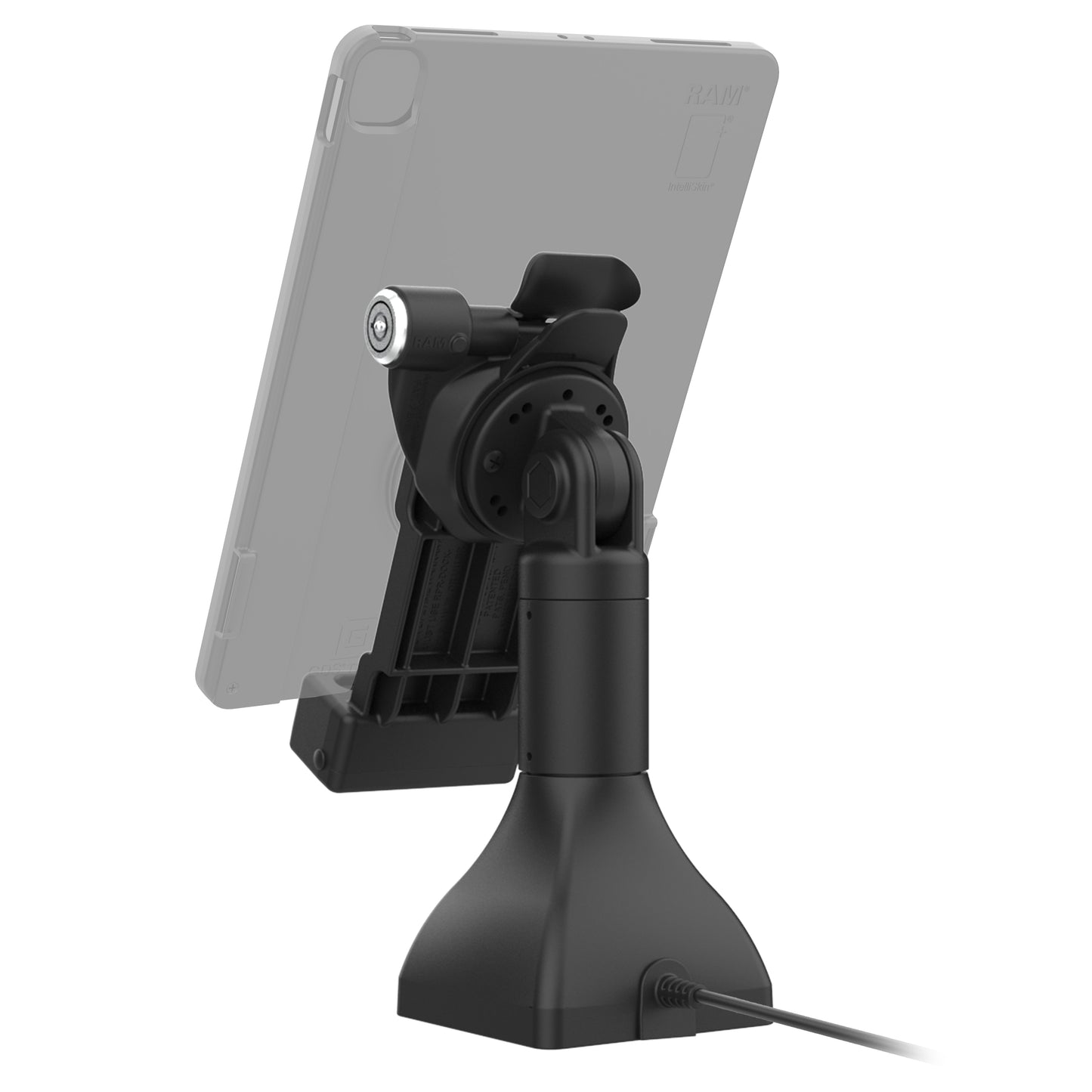

GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE (RAM-GDS-DOCKLR-D11-7-U1E)
GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE (RAM-GDS-DOCKLR-D11-7-U1E)
SKU:RAM-GDS-DOCKLR-D11-7-U1E
Couldn't load pickup availability
The GDS Uni-Conn 7" Locking Pedestal Dock with PoE (RAM-GDS-DOCKLR-D11-7-U1E) is a free-standing, 7" pedestal dock for devices enclosed in an IntelliSkin Next Gen, IntelliSkin Hard Case, or standard IntelliSkin Thin-Case with a GDS Uni-Conn adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Power is provided to the pogo pins integrated into the GDS Uni-Conn dock via Power over Ethernet (PoE) connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. One Dock to Connect Them All Always Protected. Always Connected.
Features
Features
- Key-locking 7" pedestal dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
- GDS® Uni-Conn™ dock pogo pins provide charging via PoE

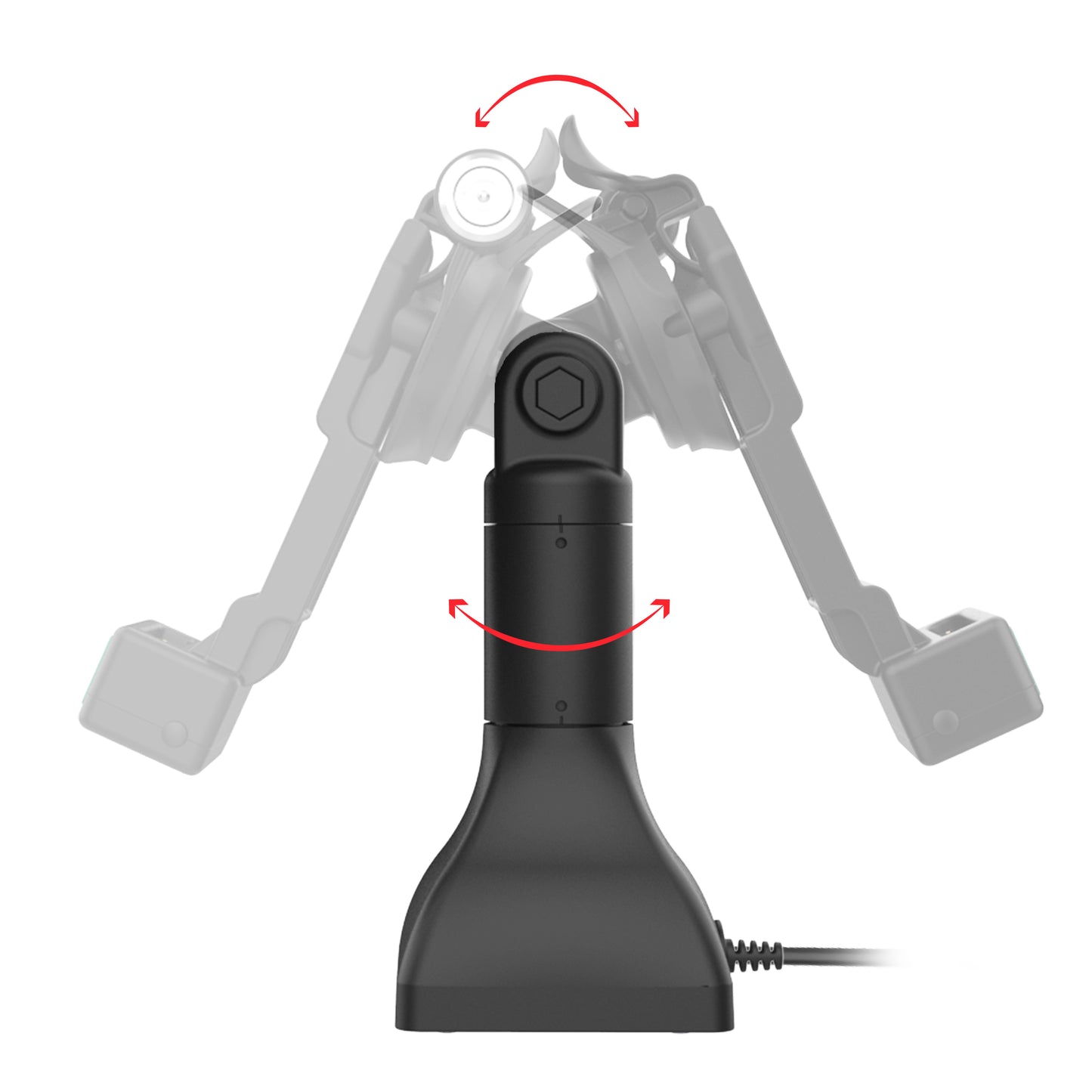

- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty
- Key-locking 7" pedestal dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
- GDS® Uni-Conn™ dock pogo pins provide charging via PoE
- Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
- Install dock to any surface with drill-down base
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 2.44 lb

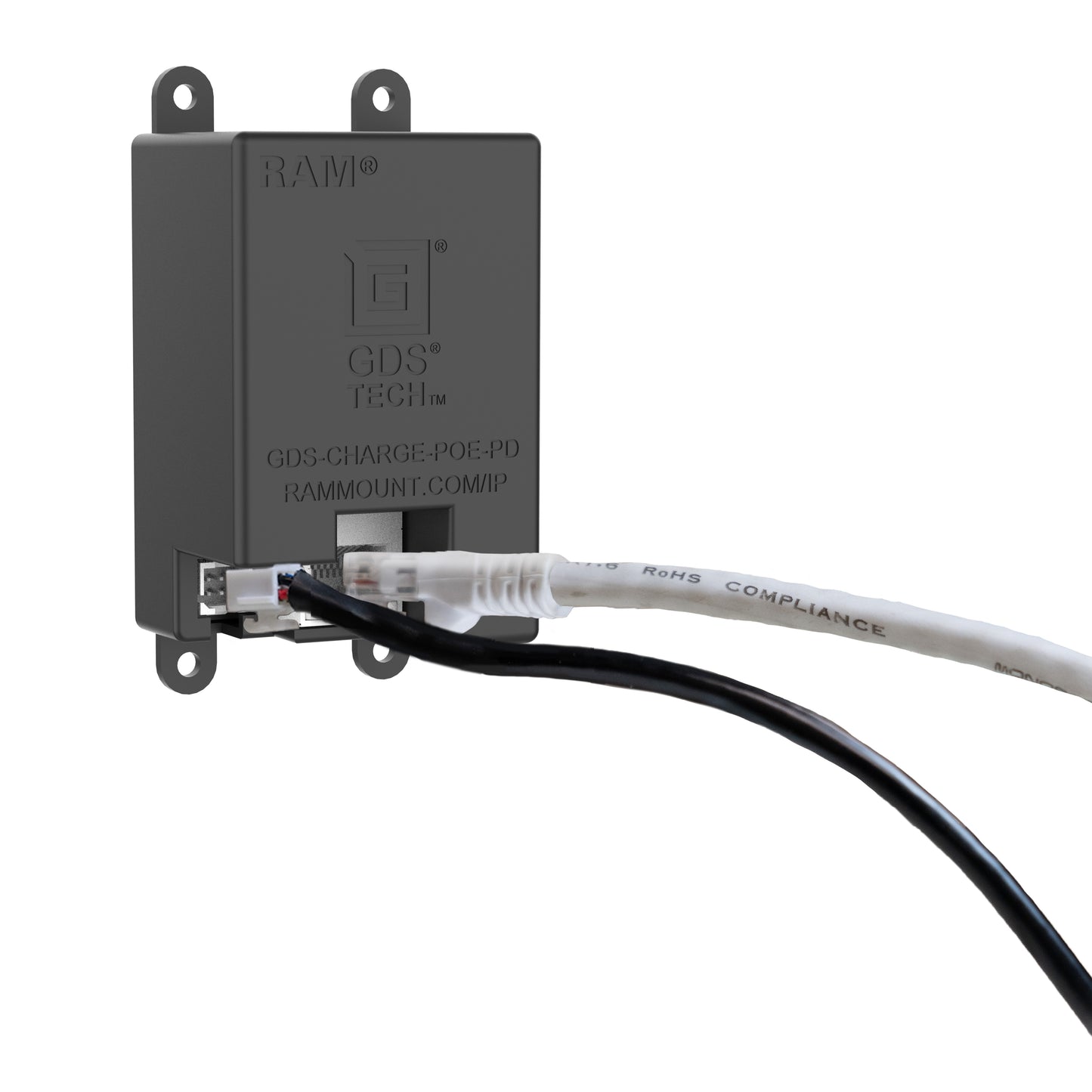

- Hardware Included: (1) RAM® PoE to PD Charging Module

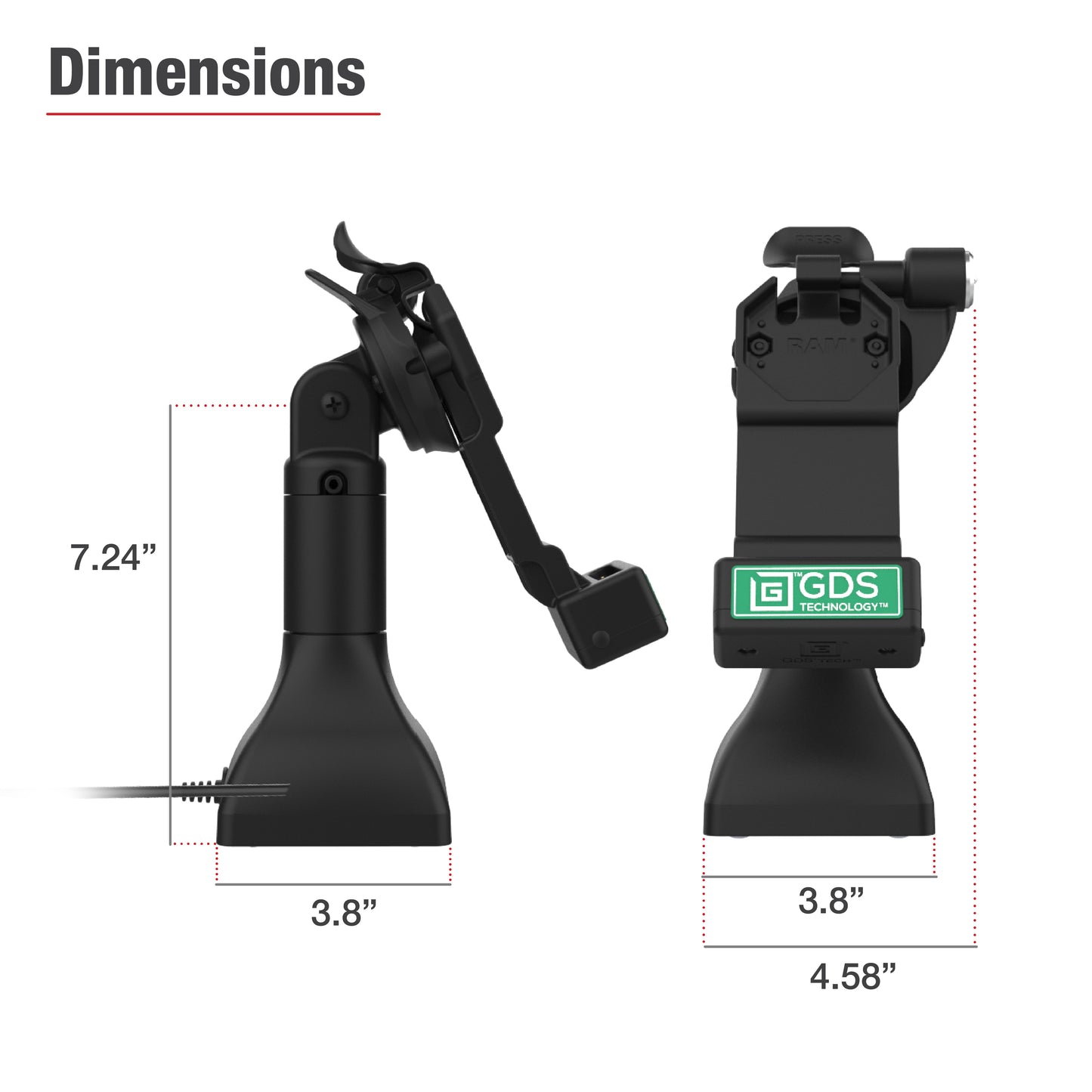

- Product Dimensions: Height from Base to Tilt Bolt: 7.24" | Base Width: 3.8" | Base Depth: 3.8"
- Materials: Powder coated steel | High Strength Composite
- Packaging Type: Box
- Output Voltage: USB PD 3.0: | 5V @ 3A | 9V @ 2.2A | 12V @ 1.67A
- Power Output: 24W Max
- Input Connector: JST Male Connector
- Input Cable Length: 1.5 Meters
- Transfer Speed: 10/100Mbps
Package Content
Package Content
- 1 x GDS® Uni-Conn™ 7" Locking Pedestal Dock with PoE (RAM-GDS-DOCKLR-D11-7-U1E)
