RAM® Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDU)
RAM® Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDU)
SKU:RAM-HOL-GE4PDU
Couldn't load pickup availability

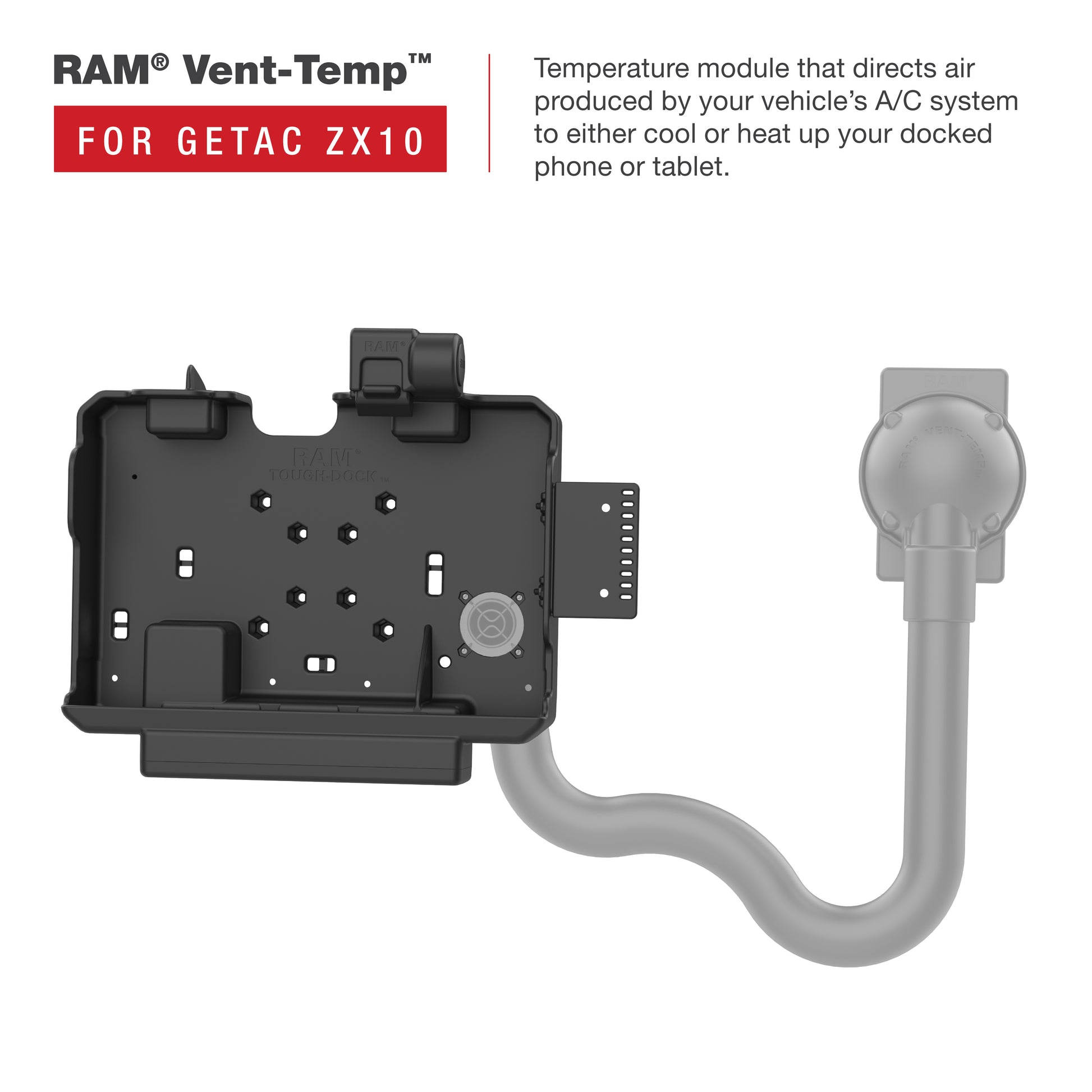

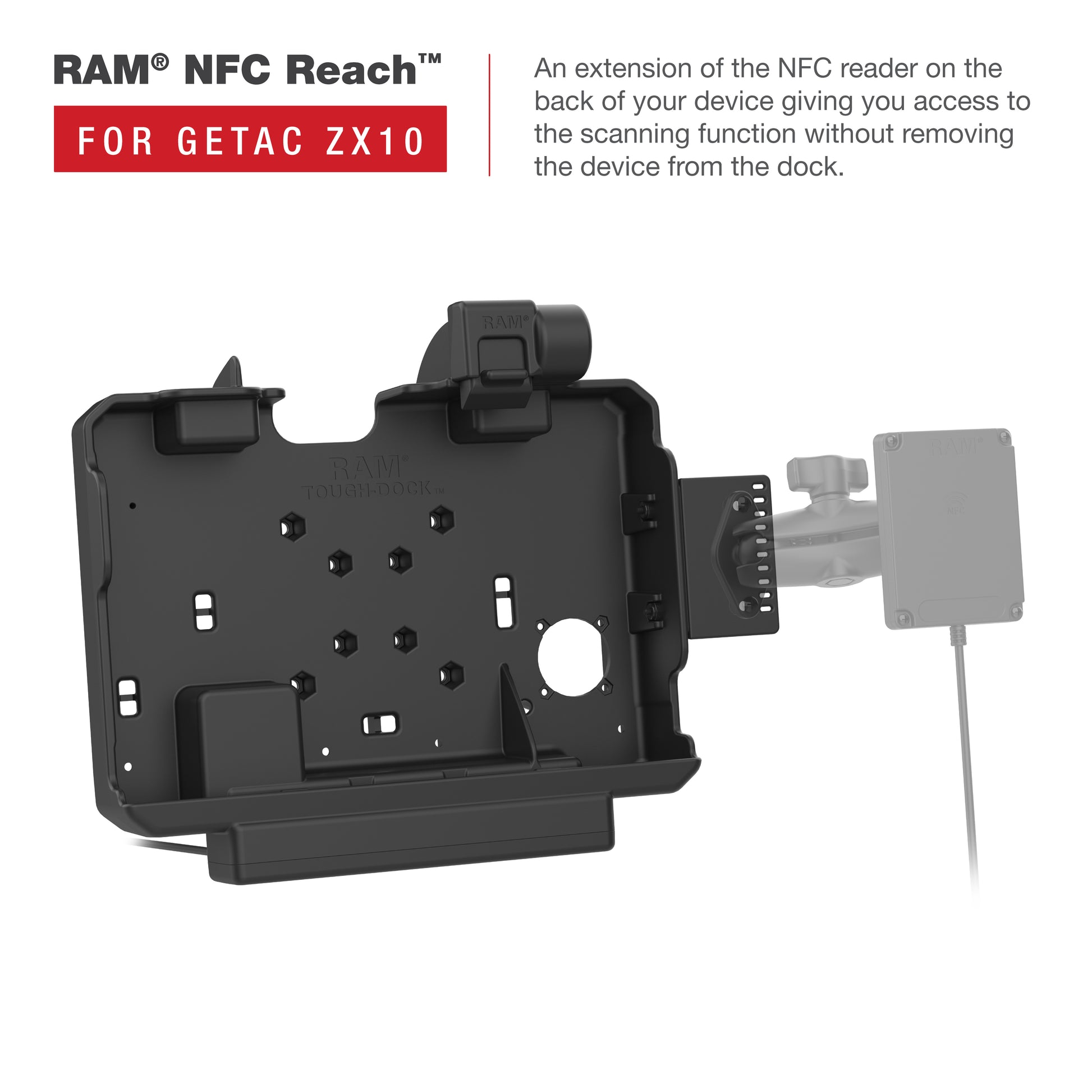

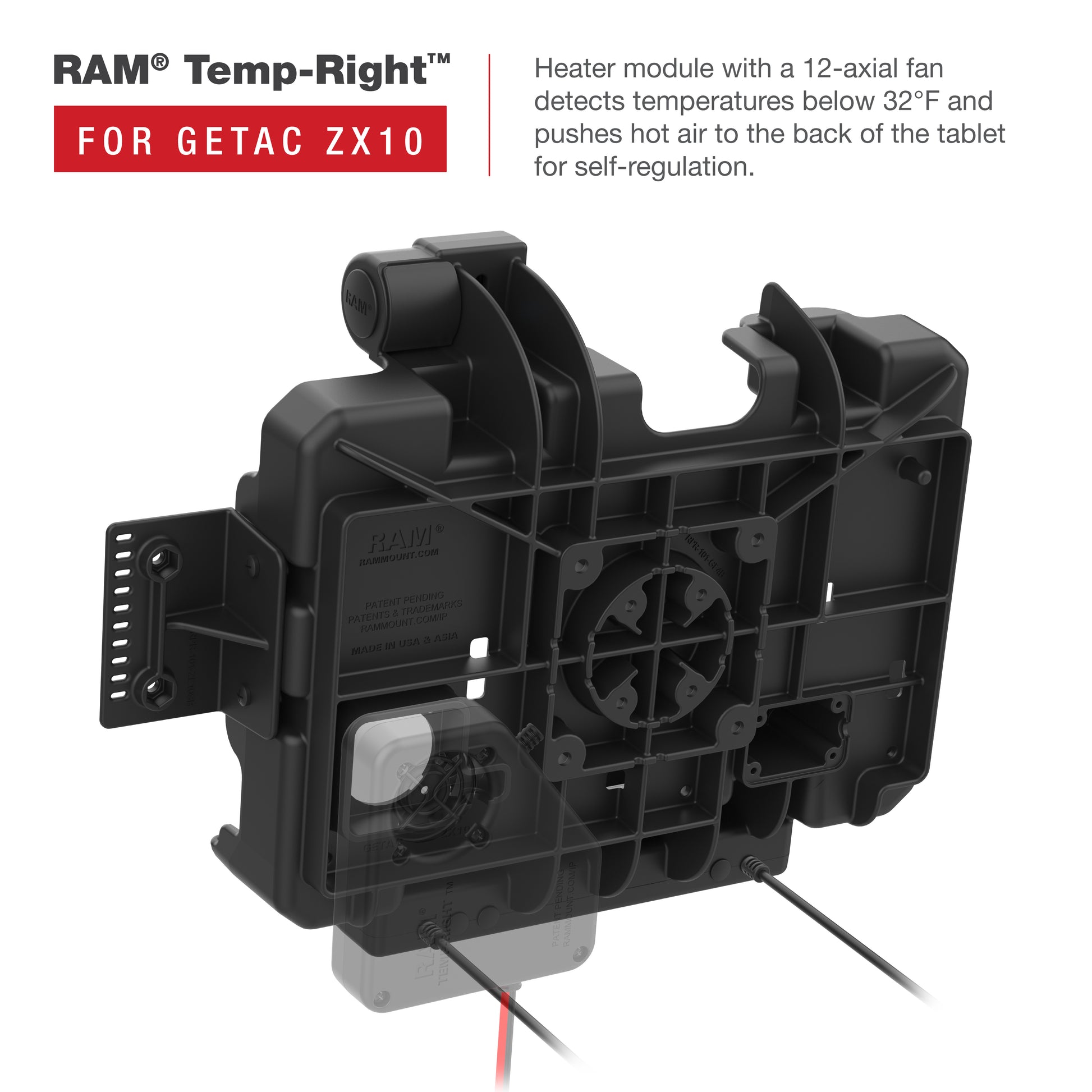

The RAM Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDU) allows you to secure the device and keep it charged through the pogo pin contacts while dockedpower is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM Temp-Right, Vent-Temp, RAM NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the Hard Carry Handle. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM 2-hole diamond bases for additional device mounting such as a phone or other handheld device.
Features
Features
- Form-fit power + data sync dock designed specifically for Getac ZX10 rugged tablet
- Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
- Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect a single input device via USB-A connector
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
- Form-fit power + data sync dock designed specifically for Getac ZX10 rugged tablet
- Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
- Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect a single input device via USB-A connector
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 2.15 lb
- Hardware Included: (1) Side bracket for accessory mounting and strain relief | (4) #8-32 x 5/8” Machine Screws | (2) #8-32 x 1/2” Machine Screws | (6) #8-32 Nylock Nuts | (4) #10-32 x 5/8” Machine Screws | (4) #10-24 Nylock Nuts | ()1 Cable Clamp | (2) Large Cable Ties | (8) Small Cable Ties
- Hole Pattern: 75 x 75mm VESA | 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Output Voltage: 19VDC
- Input Connector: 5.5mm DC Connector
- Input Cable Length: 1 Meter
- Output Connector: (1) USB 2.0 Type A
- Output Cable Length: 240mm
- Peripheral Output: 500mAh
- Certifications: FCC, IC, CE, UKCA, WEEE, RoHS
Package Content
Package Content
- 1 x RAM® Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDU)
