RAM® Powered Dock for Honeywell ScanPal EDA10A (RAM-HOL-HON11PU)
RAM® Powered Dock for Honeywell ScanPal EDA10A (RAM-HOL-HON11PU)
SKU:RAM-HOL-HON11PU
Couldn't load pickup availability

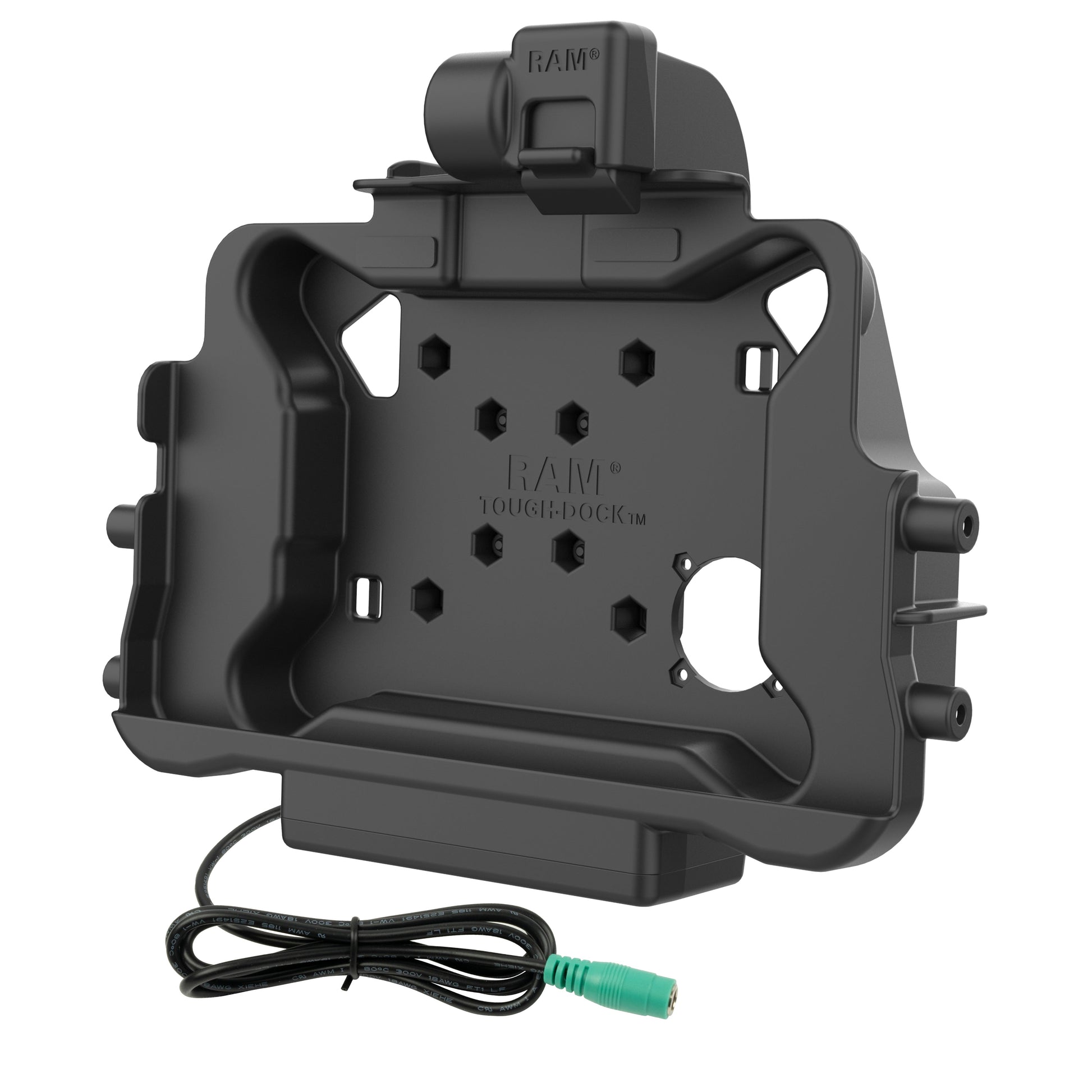

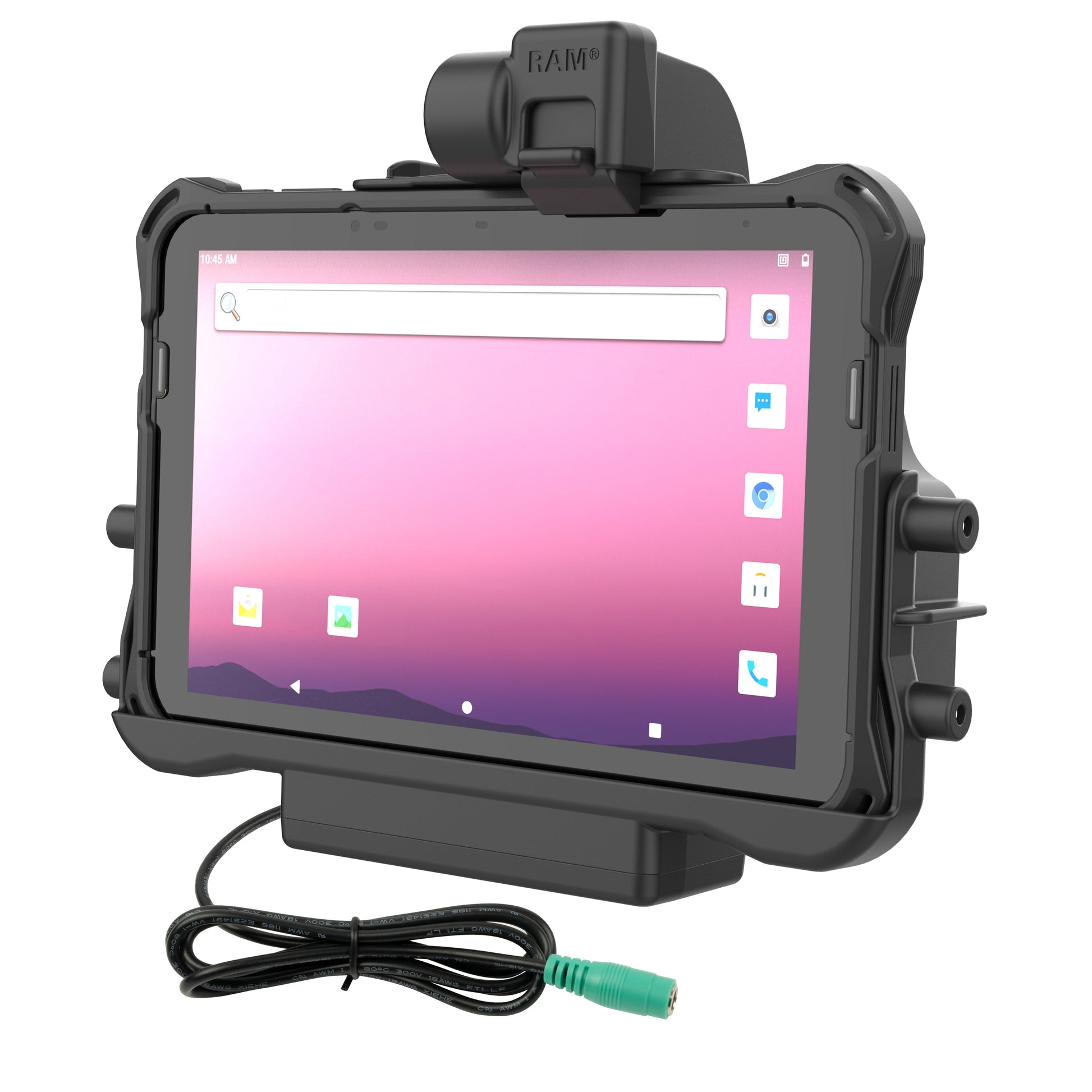

The RAM Powered Dock for Honeywell ScanPal EDA10A (RAM-HOL-HON11PU) features a form-fit design specifically for the Honeywell ScanPal EDA10A tablet with the OEM protective boot. This powered holder allows you to keep the device charged through the pogo pin contacts when the device is dockedpower is provided by connecting to the dock's 5.5mm DC power jack. It is compatible with the OEM hand-strap accessory and requires that the protective boot is installed for a secure fit. Take your solution a step further with a variety of compatible RAM accessories, such as the RAM NFC Extender and RAM Vent-Temp. This tablet holder includes a 4-hole AMPS and 75mm x 75mm VESA pattern on the back as connection points for attaching a double socket arm to complete your mounting solution. Secure any peripheral accessories or devices directly to the dock by mounting them to one of the two built-in 2-hole mounting locations compatible with the RAM 2-hole diamond base.
Features
Features
- Spring-loaded powered dock featuring GDS® Technology™ with charging capabilities for the ScanPal™ EDA10A tablet (protective boot required)
- When connected to a power source via 5.5 DC Barrel connector, integrated pogo pins provide power to the device
- Compatible with OEM handstrap, RAM® NFC Extender, and RAM® Vent-Temp™

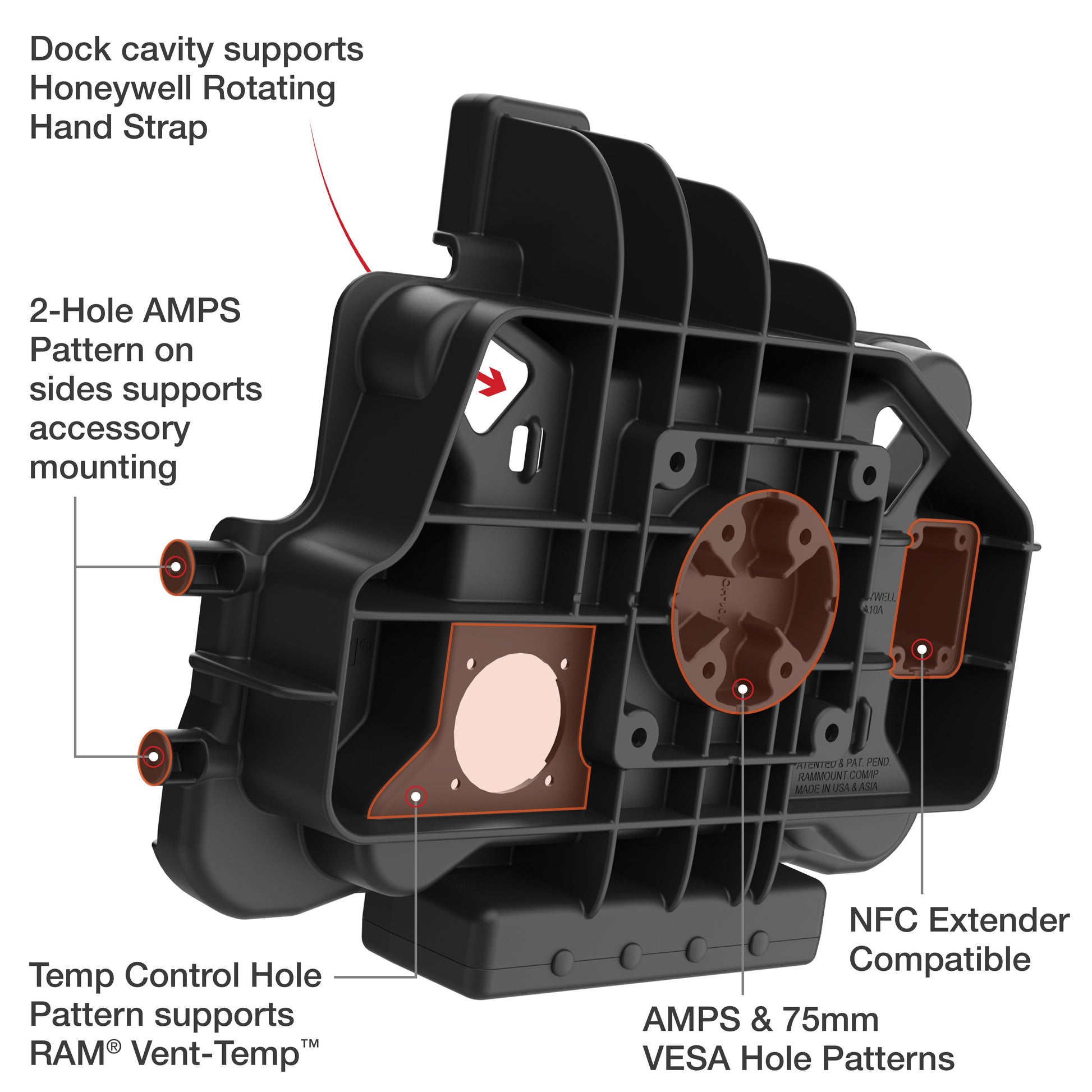

- Two built-in 2-hole mounting locations for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 1.66 lb
- Hardware Included: (6) #8-32 x 5/8” Machine Screws | (6) #8-32 Nylock Nuts | (4) #10-24 x 5/8” Machine Screws | (4) #10-24 Nylock Nuts | (1) Cable Clamp & Zip Tie Kit

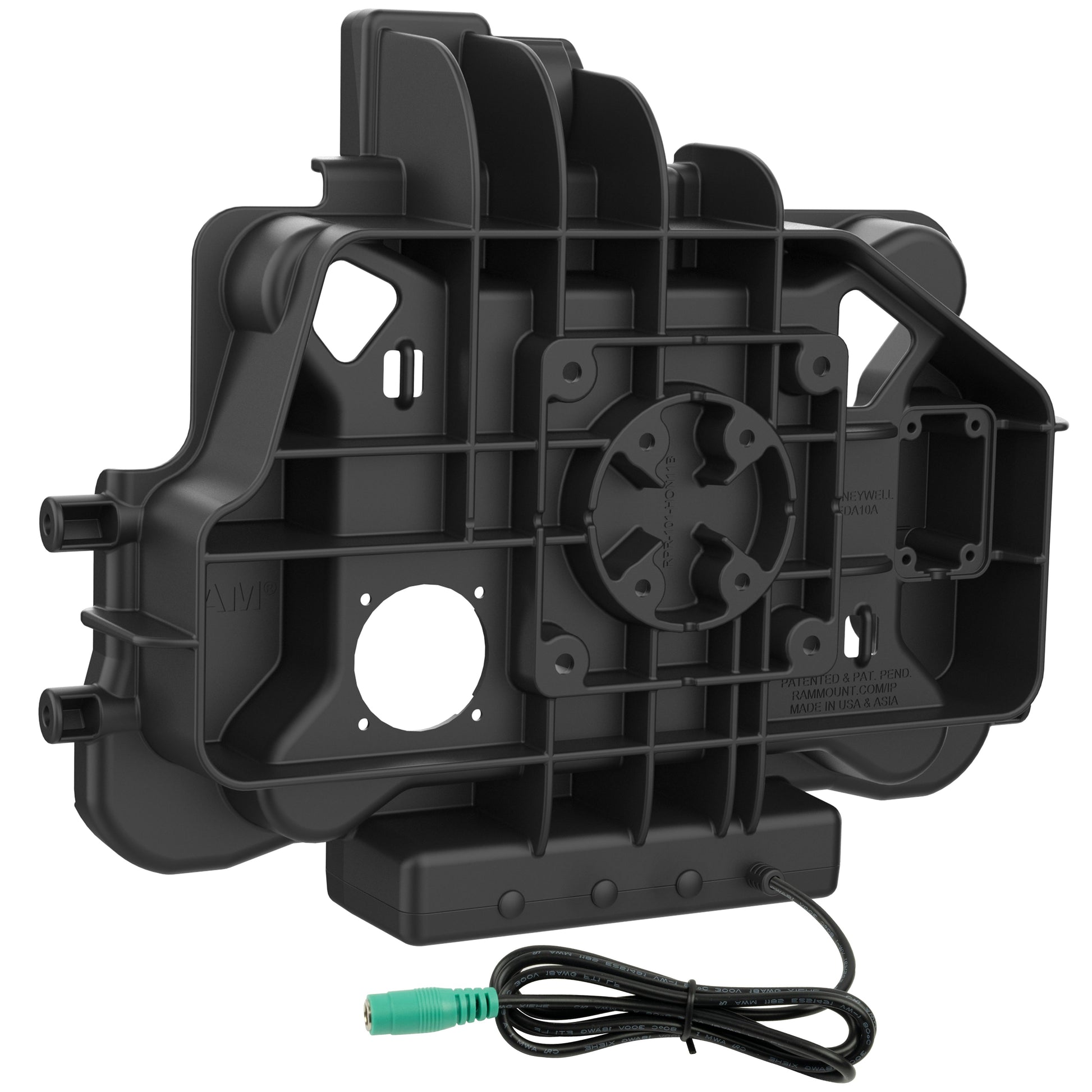

- Hole Pattern: 75 x 75mm VESA | 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Input Voltage: 5 VDC
- Input Connector: 5.5mm DC Connector
- Input Cable Length: 1 Meter
- Certifications: FCC, CE, RoHS, WEEE
Package Content
Package Content
- 1 x RAM® Powered Dock for Honeywell ScanPal EDA10A (RAM-HOL-HON11PU)
