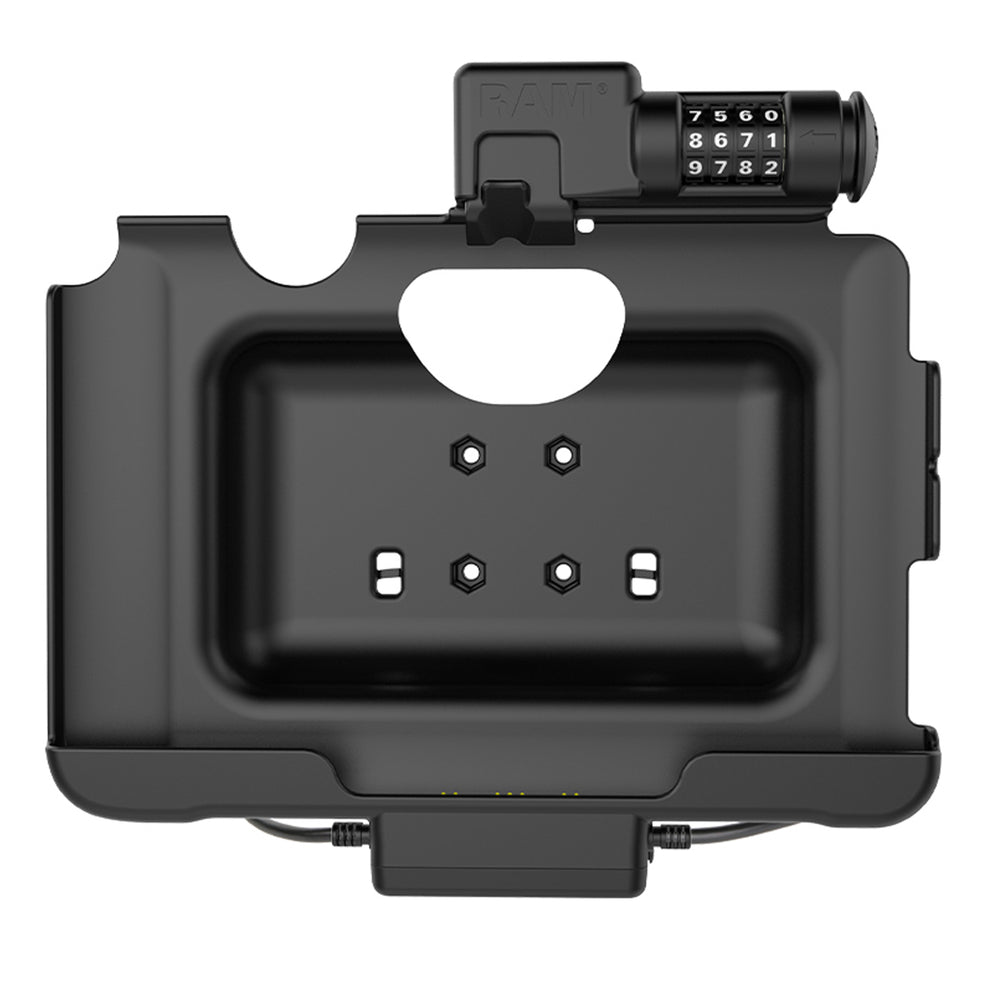

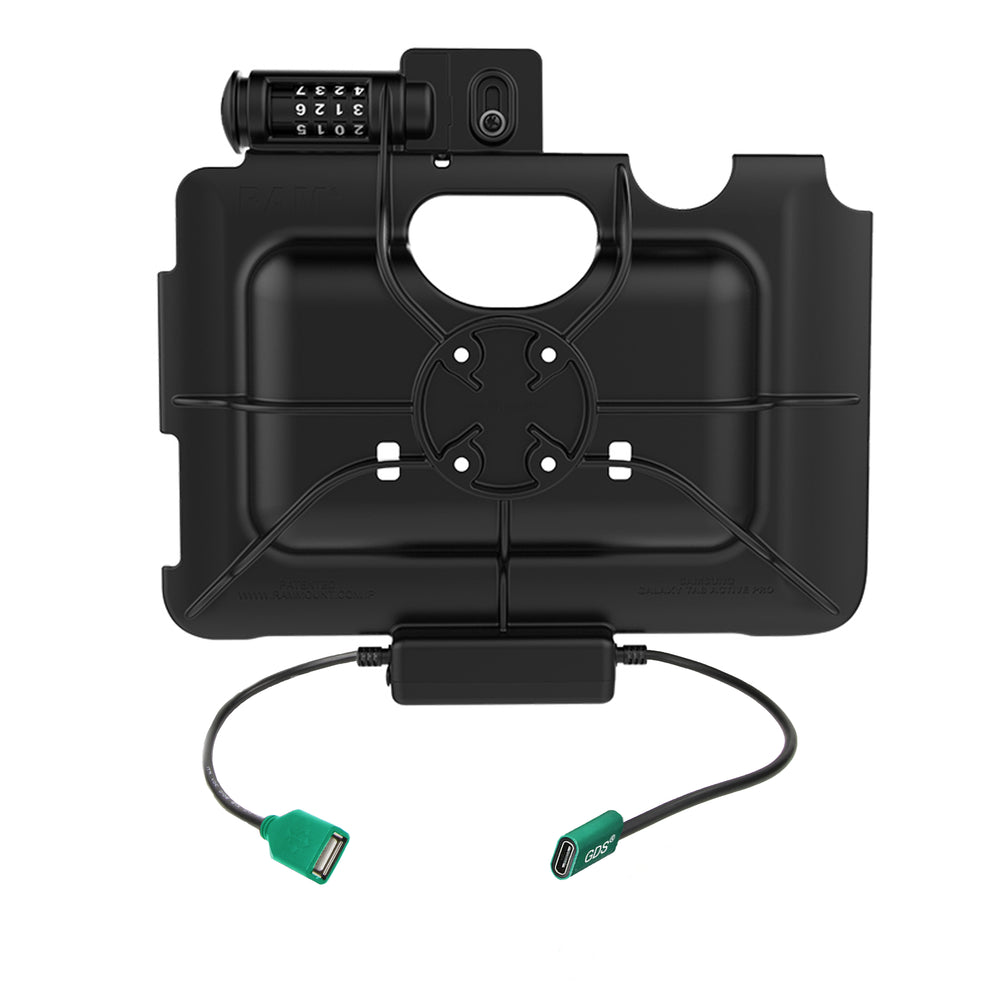

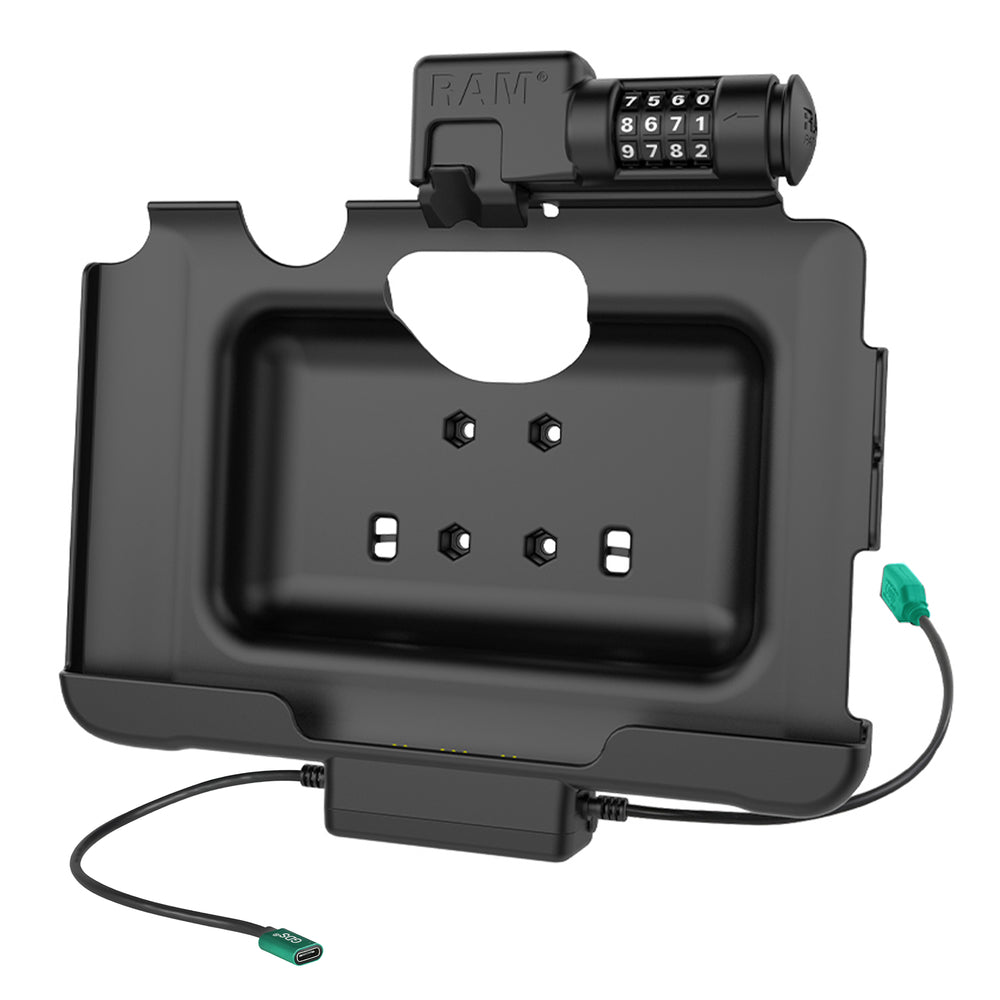

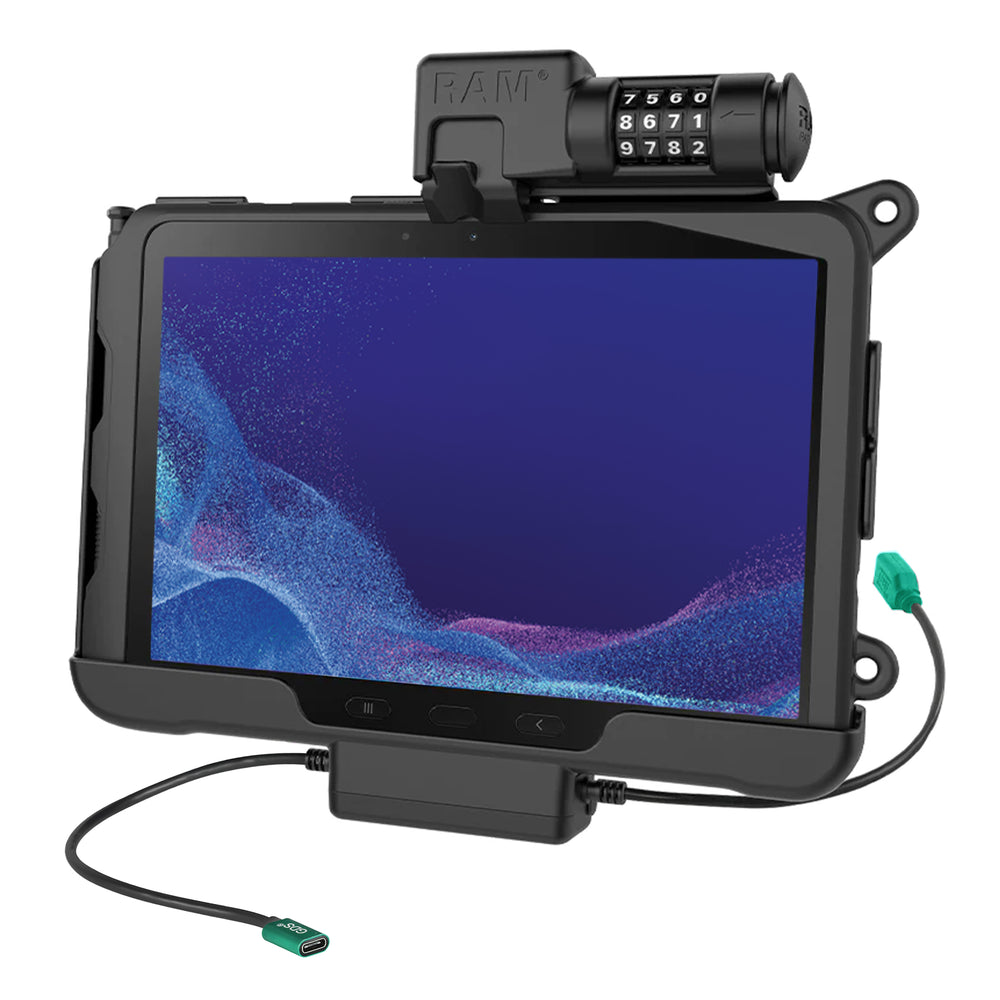

RAM® Combo-Locking Power + Data Dock for Samsung Tab Active4 Pro (RAM-HOL-SAM57CPCL-1AU)
RAM® Combo-Locking Power + Data Dock for Samsung Tab Active4 Pro (RAM-HOL-SAM57CPCL-1AU)
SKU:RAM-HOL-SAM57CPCL-1AU

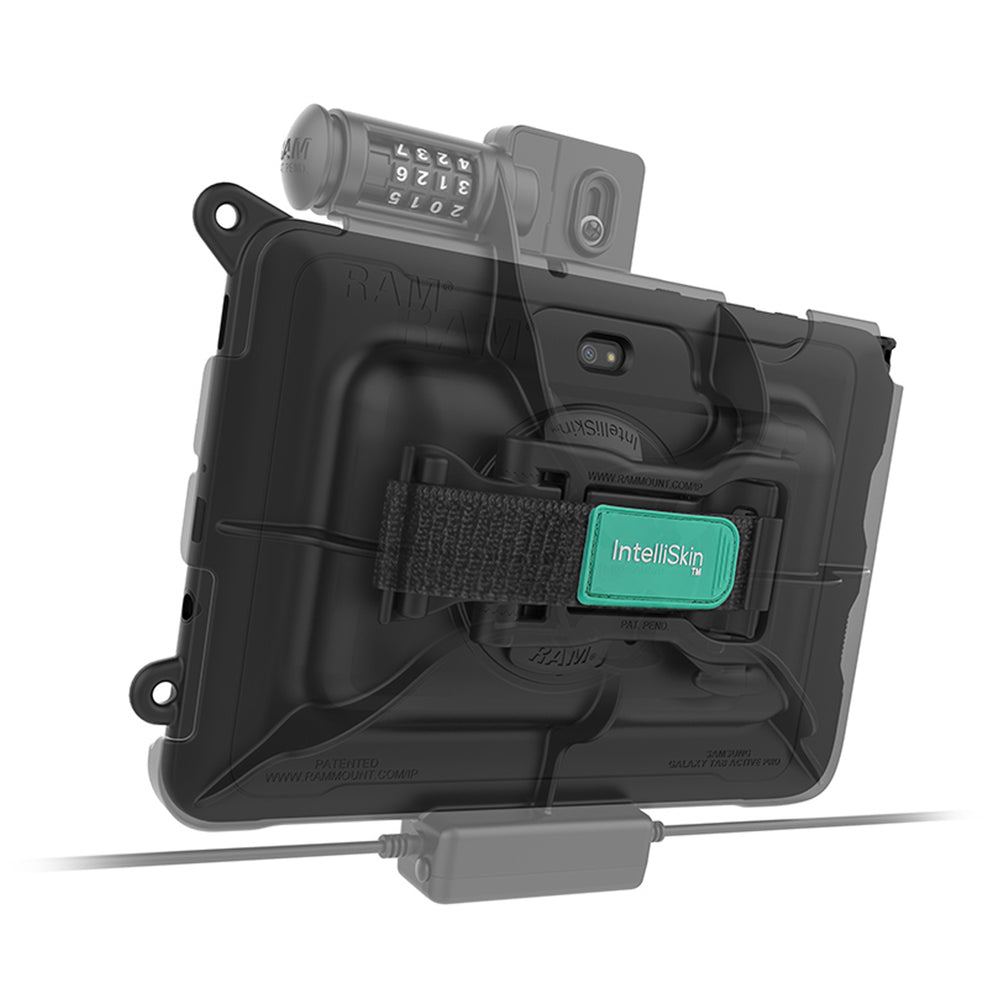

This power cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that€™s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included are the USB Type-A female pigtail, cable clamp, and zip ties.
Features
Features
- Combination locking powered dock supports the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector

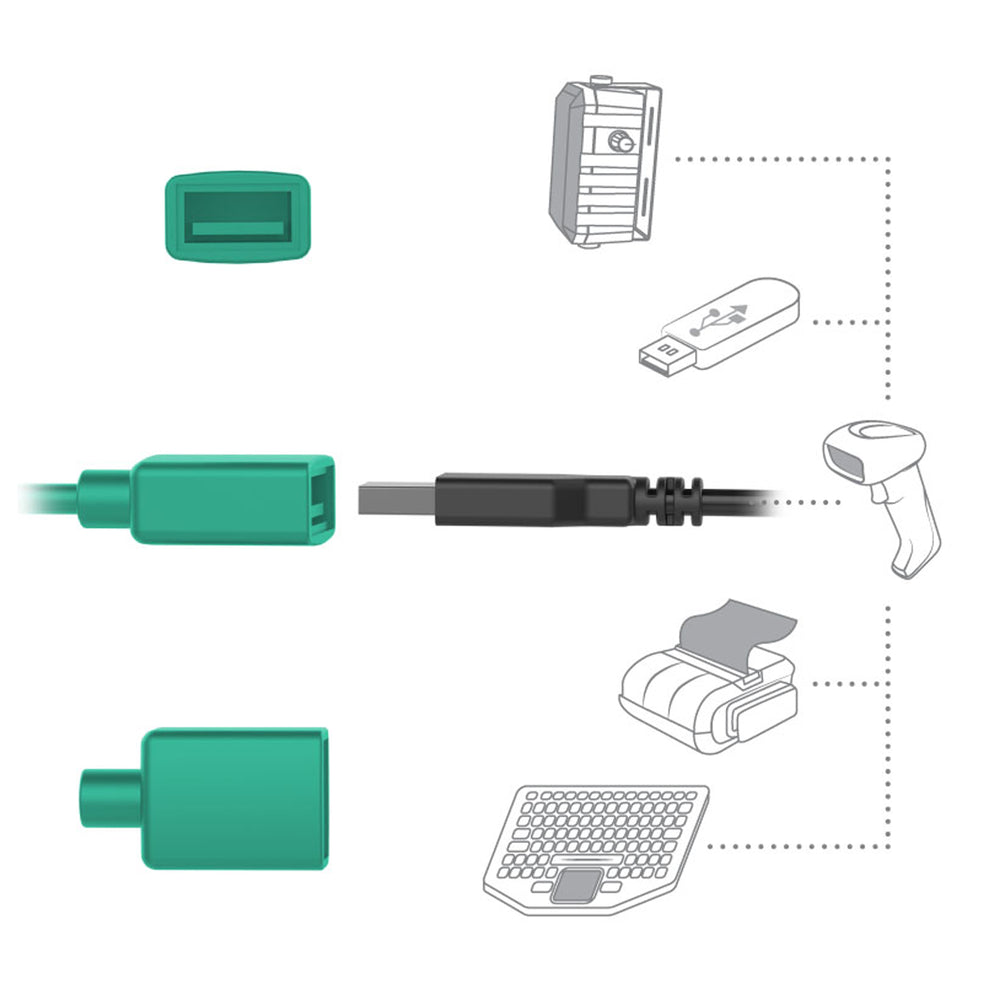

- Power is delivered via a USB-C connector; connect a single input device via a USB-A connector
- RAM® Mounts Compatible™ with AMPS hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Materials: High strength composite
- Packaging Type: Poly Bag
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 250mm
- Output Connector: USB 1.1 Type A
- Output Cable Length: 250mm
- Peripheral Output: 500mAh
- Transfer Speed: 12Mbps
- Warranty: 3 year warranty
- Weight: 1.12 lb
- Additional Information: This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options.
Compatibility
Compatibility
- Samsung: Tab Active Pro, Tab Active4 Pro
Product Guides
Product Guides

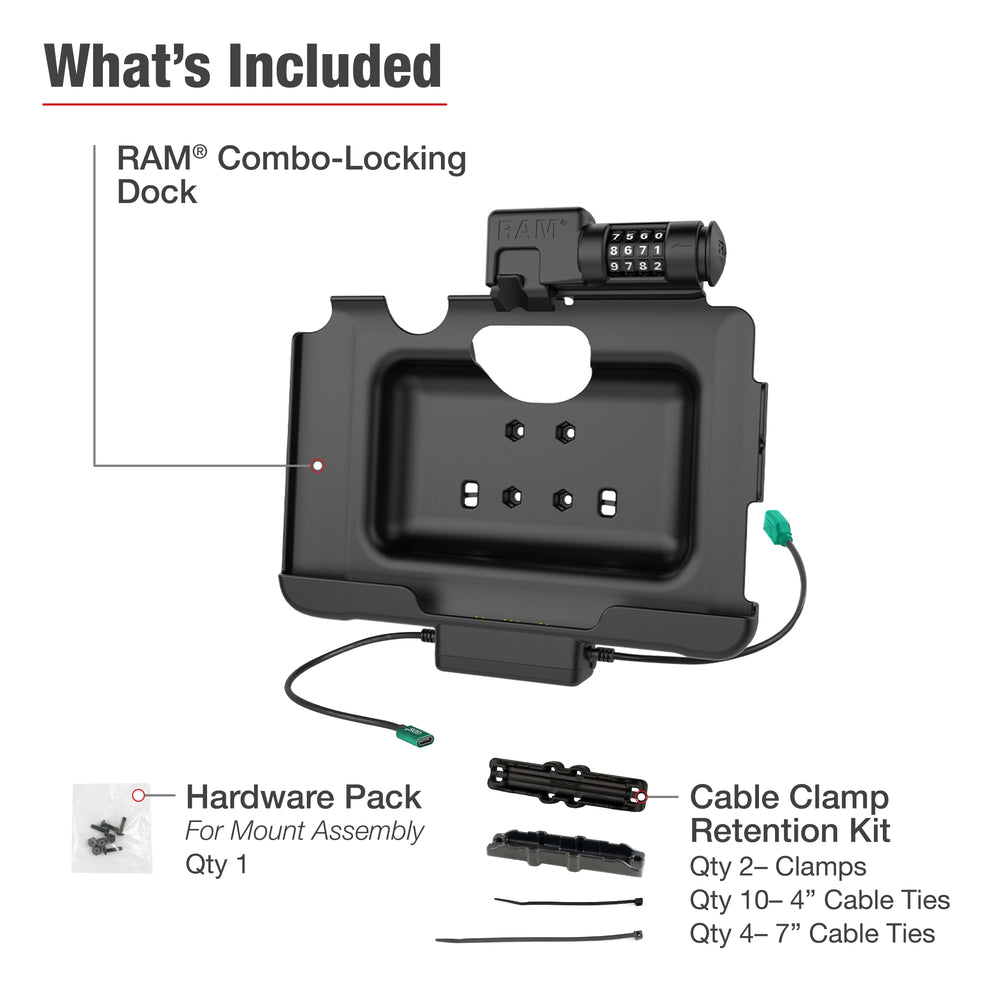

Package Content
Package Content
- 1 x RAM® Combo-Locking Power + Data Dock for Samsung Tab Active4 Pro (RAM-HOL-SAM57CPCL-1AU)
