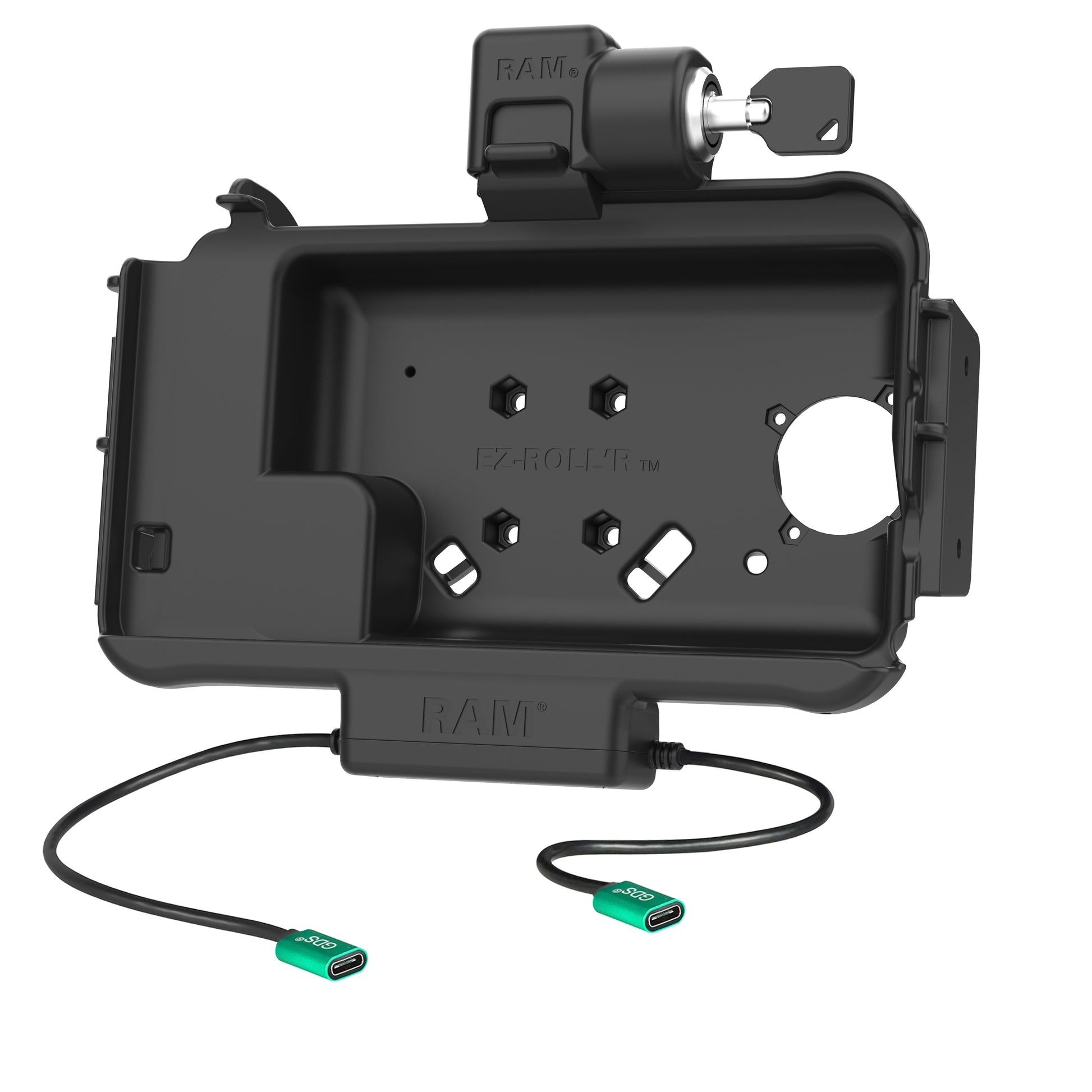

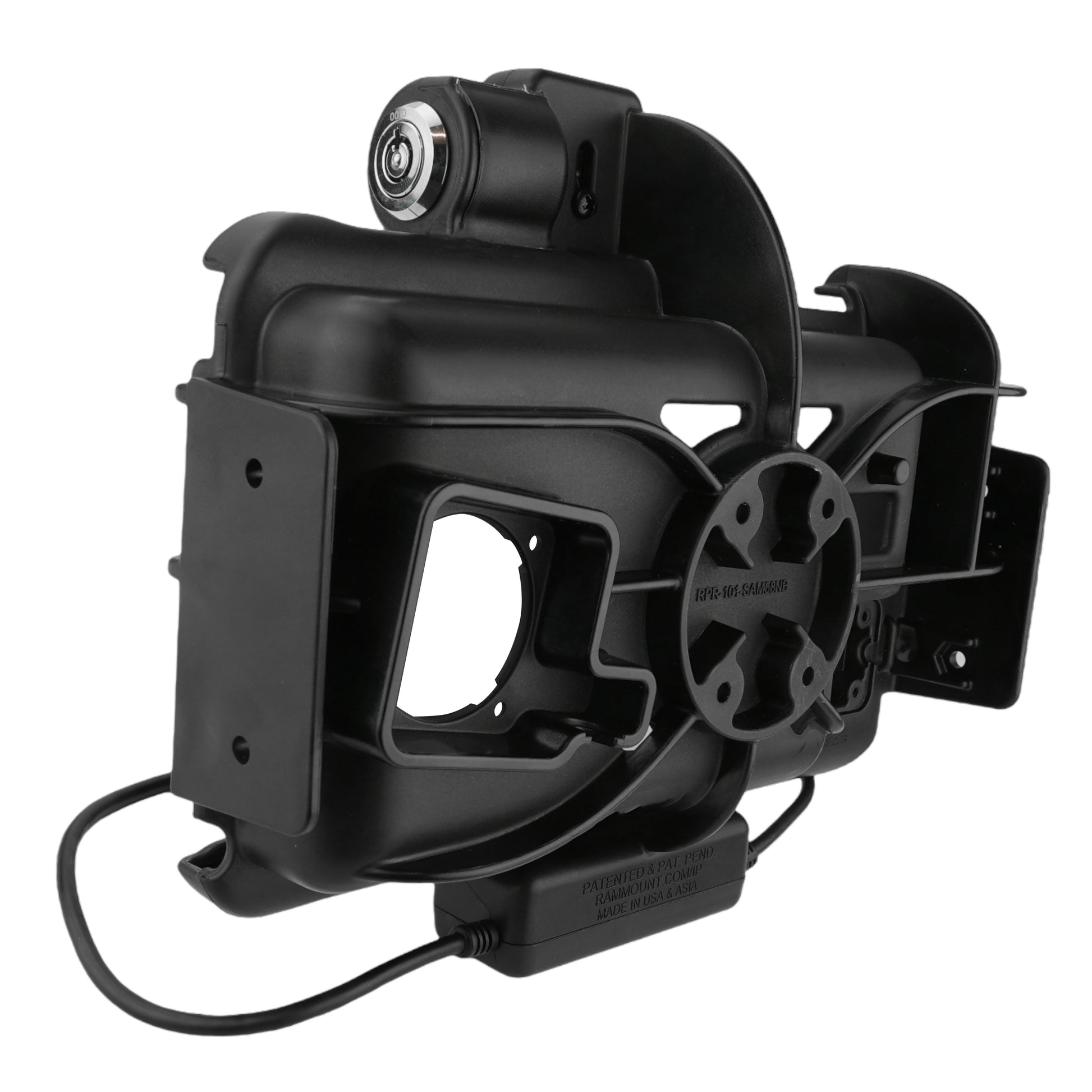

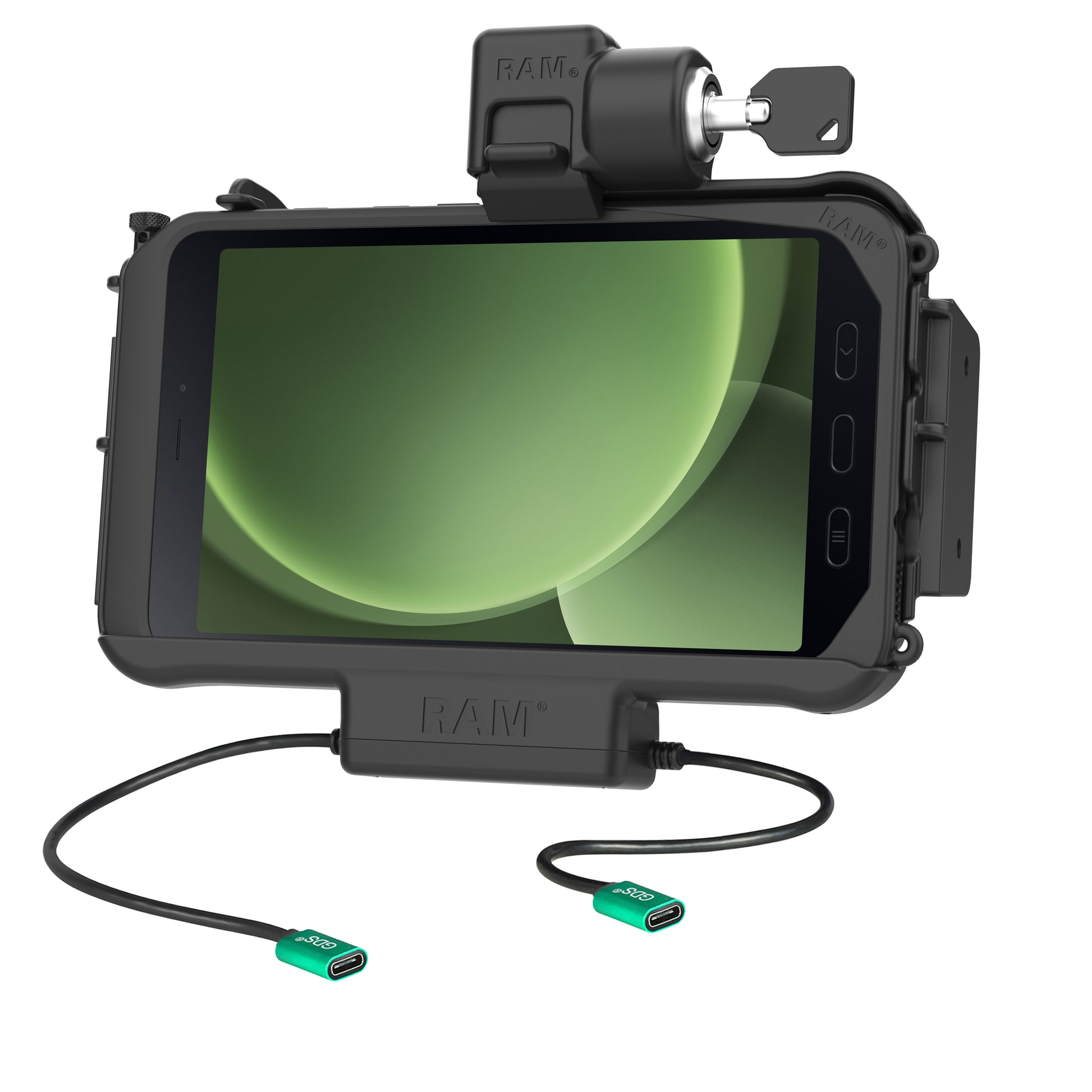

RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLN-CU)

RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLN-CU)

SKU:RAM-HOL-SAM58CPKLN-CU

Regular price $338.00 AUD
Regular price $0.00 AUD Sale price $338.00 AUD
Sale Sold out
Tax included.

The RAM Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.

Features

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB Type-C cable

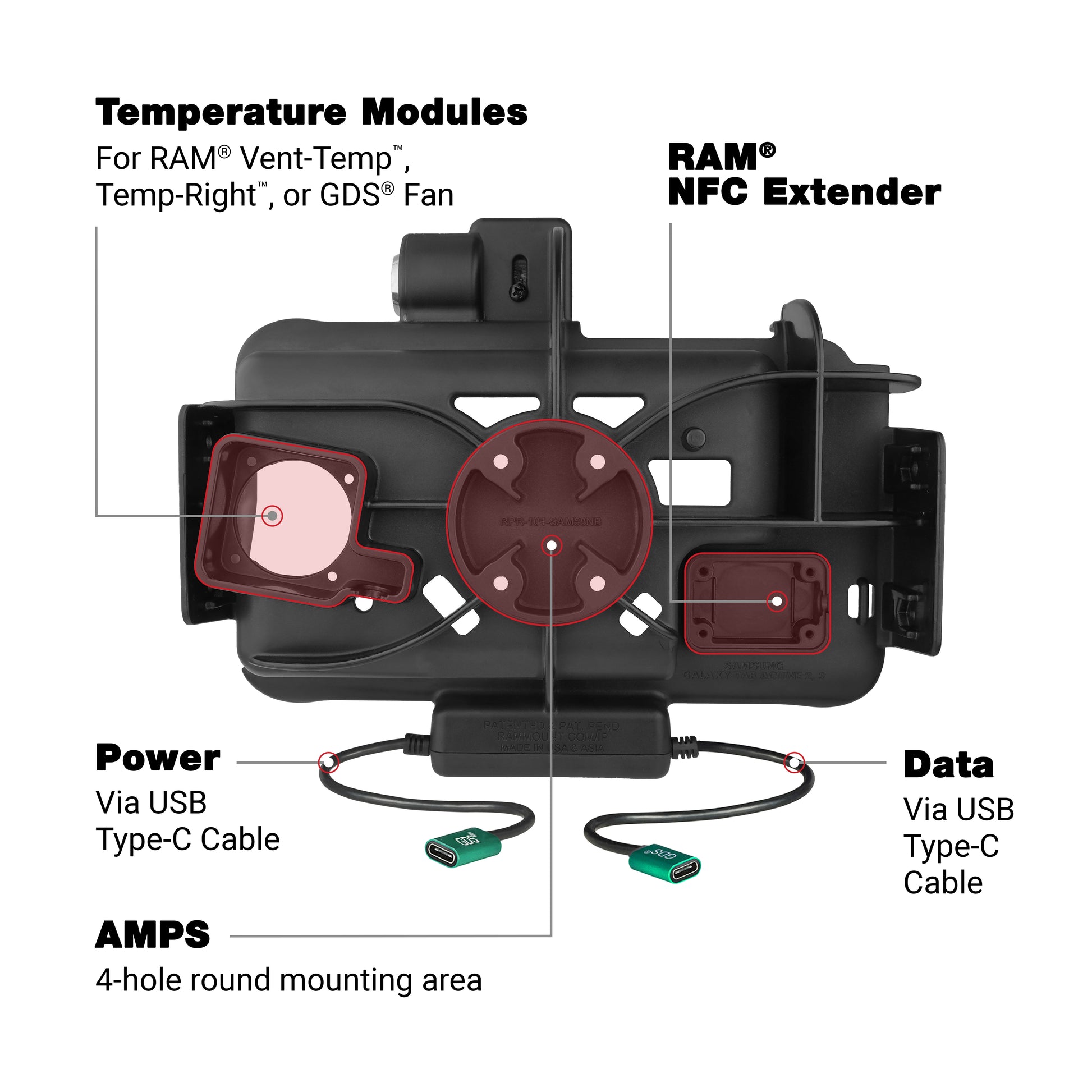

  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Connect one additional peripheral via USB Type-C
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty

Tech Specs

  • Product Weight: 1.09 lb
  • Hardware Included: (2) Keys | (4) #8-32 x 5/8" Machine Screws | (4) #8-32 Nylock Nuts | (2) Cable Clamps | (4) Large Cable Ties | (10) Small Cable Ties
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 215mm
  • Output Connector: USB Type-C Female
  • Output Cable Length: 215mm
  • Transfer Speed: 480Mbps

Package Content

  • 1 x RAM® Locking USB-C Modular Dock + USB-C Data for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLN-CU)
