RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & 3 (RAM-HOL-SAM60CPN-1AU)

RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & 3 (RAM-HOL-SAM60CPN-1AU)

SKU:RAM-HOL-SAM60CPN-1AU

Regular price $193.00 AUD
Regular price Sale price $193.00 AUD
Sale Sold out
Tax included.

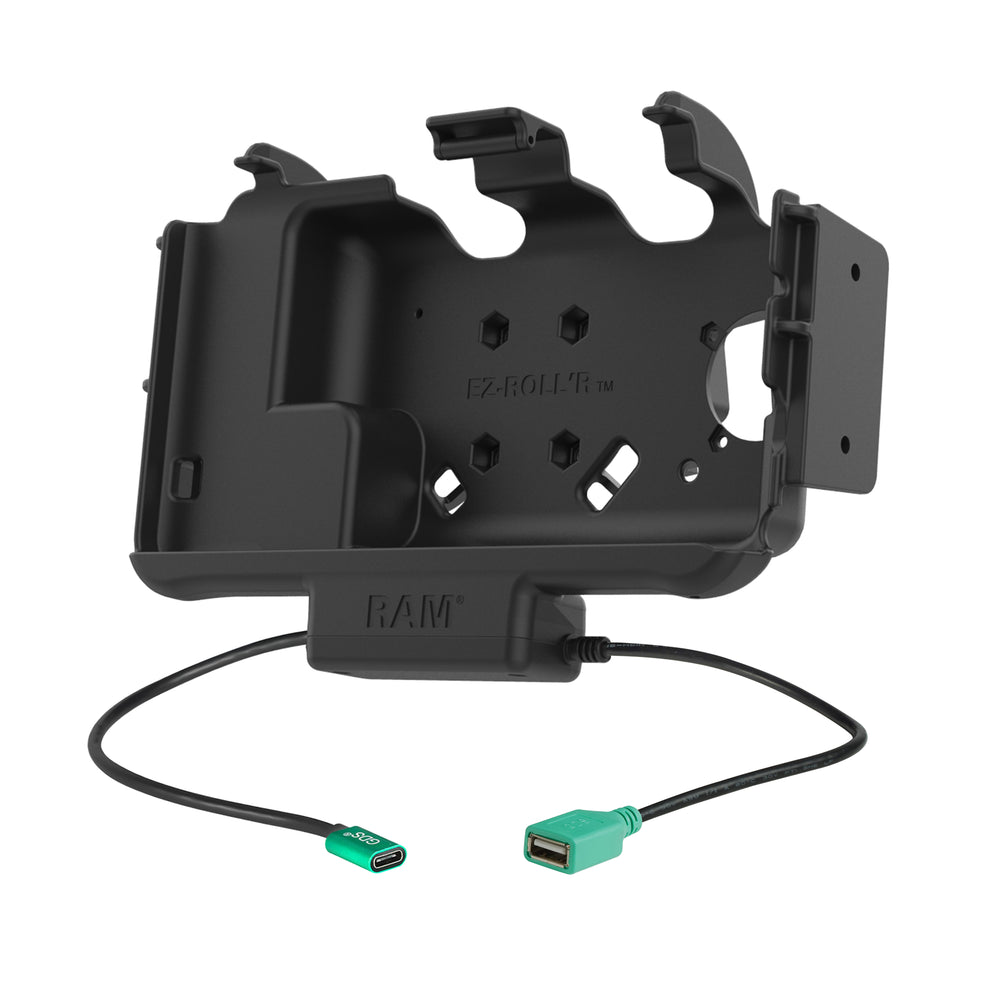

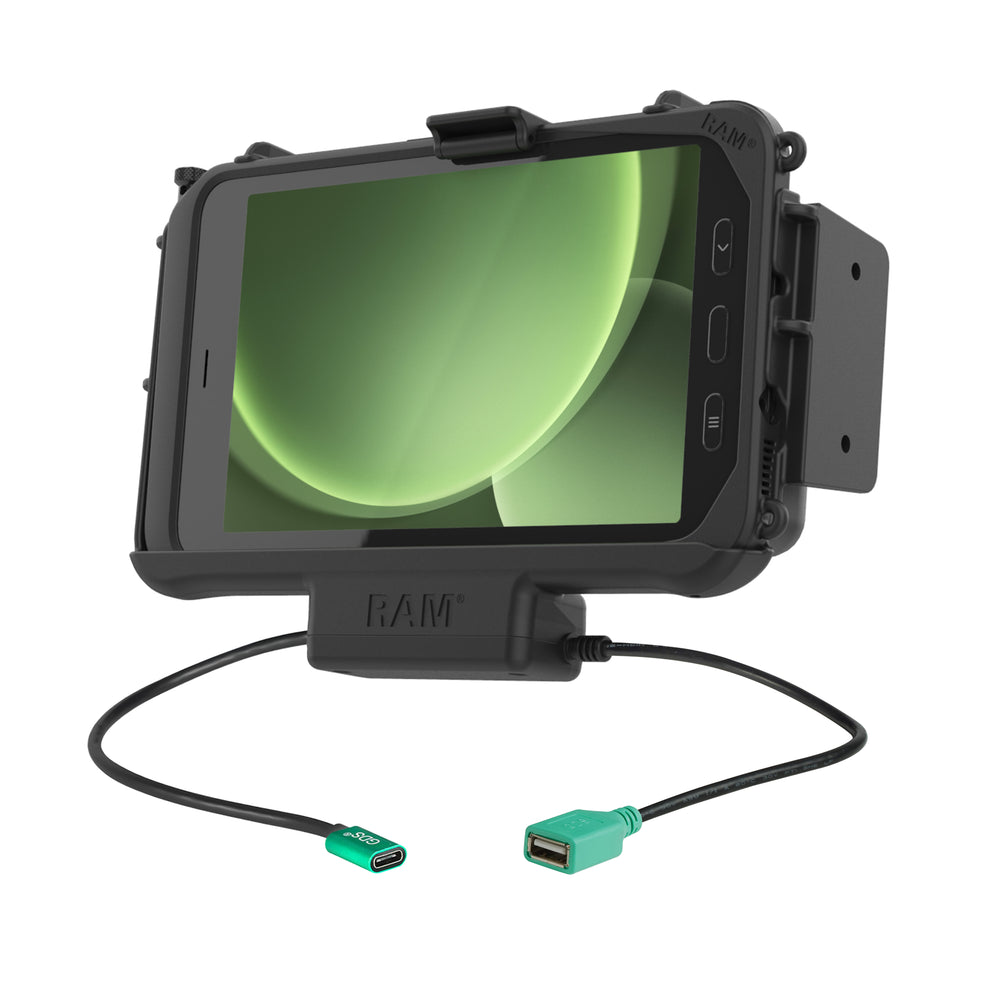

The RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CPN-1AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included are the USB-C female pigtail, cable clamp, and zip ties.

Features

  • EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection

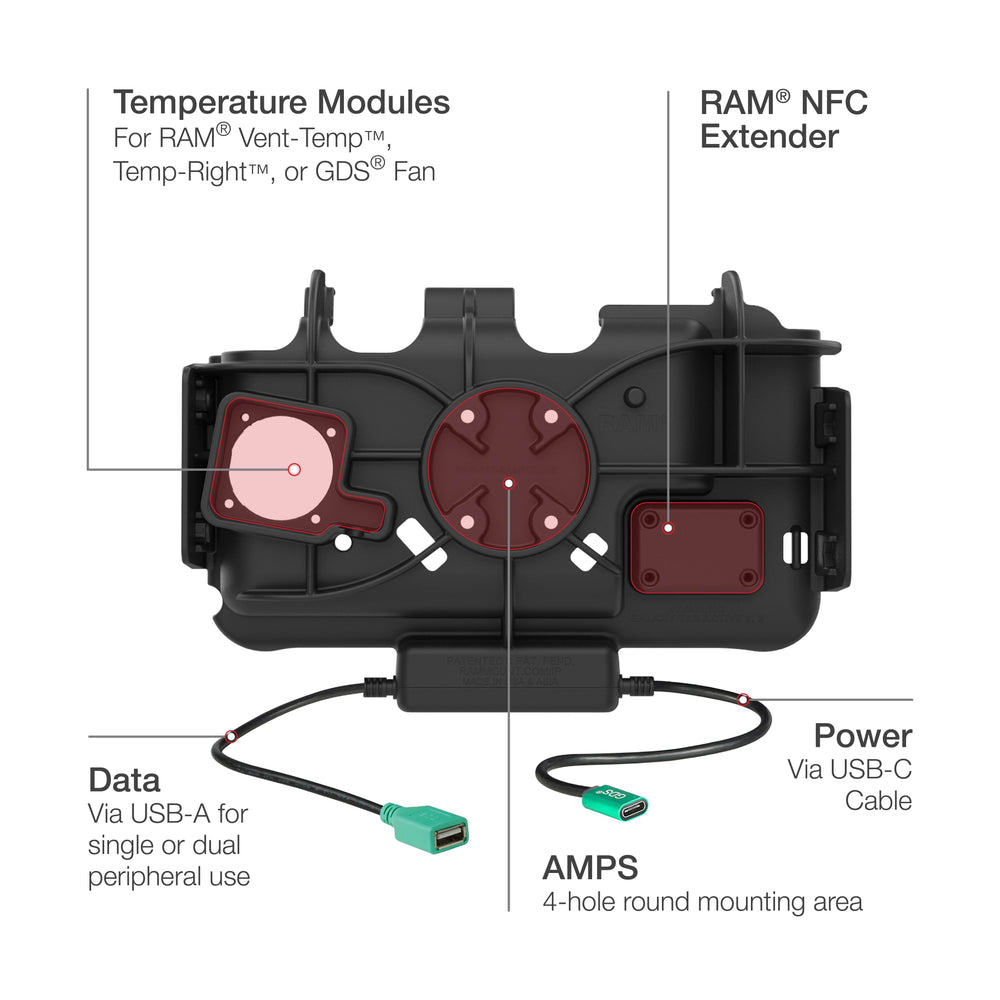

  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Power delivered via a USB-C connector; connect a single input device via a USB-A connector
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty

Tech Specs

  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 250mm
  • Output Connector: USB 1.1 Type A
  • Output Cable Length: 250mm
  • Peripheral Output: 500mAh
  • Transfer Speed: 12Mbps
  • Warranty: 3 year warranty
  • Weight: 0.95 lb

Compatibility

  • Samsung: Tab Active5, Tab Active3

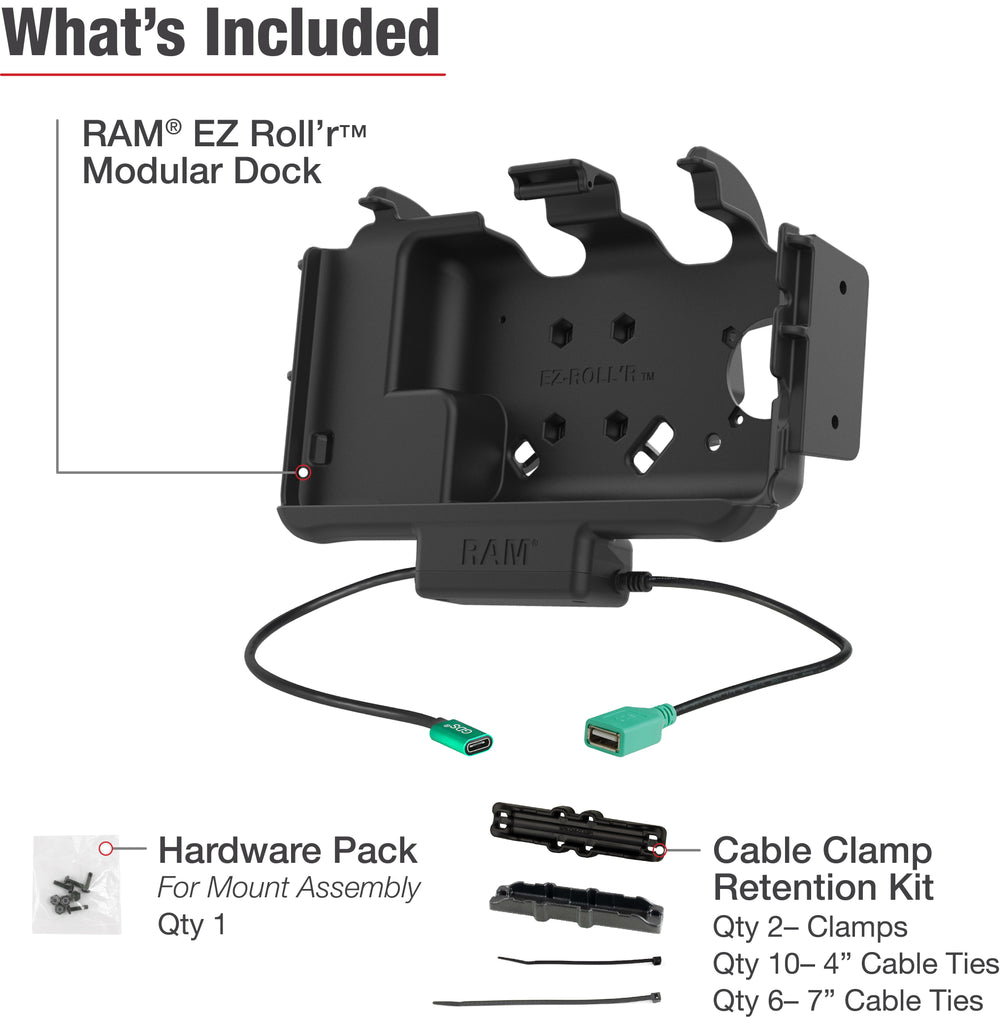

Package Content

  • 1 x RAM® EZ-Roll'r™ Modular Power + Single USB Dock Samsung Tab Active5 & 3 (RAM-HOL-SAM60CPN-1AU)
