RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PD2NLLU)
RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PD2NLLU)
SKU:RAM-HOL-ZE21PD2NLLU
Couldn't load pickup availability

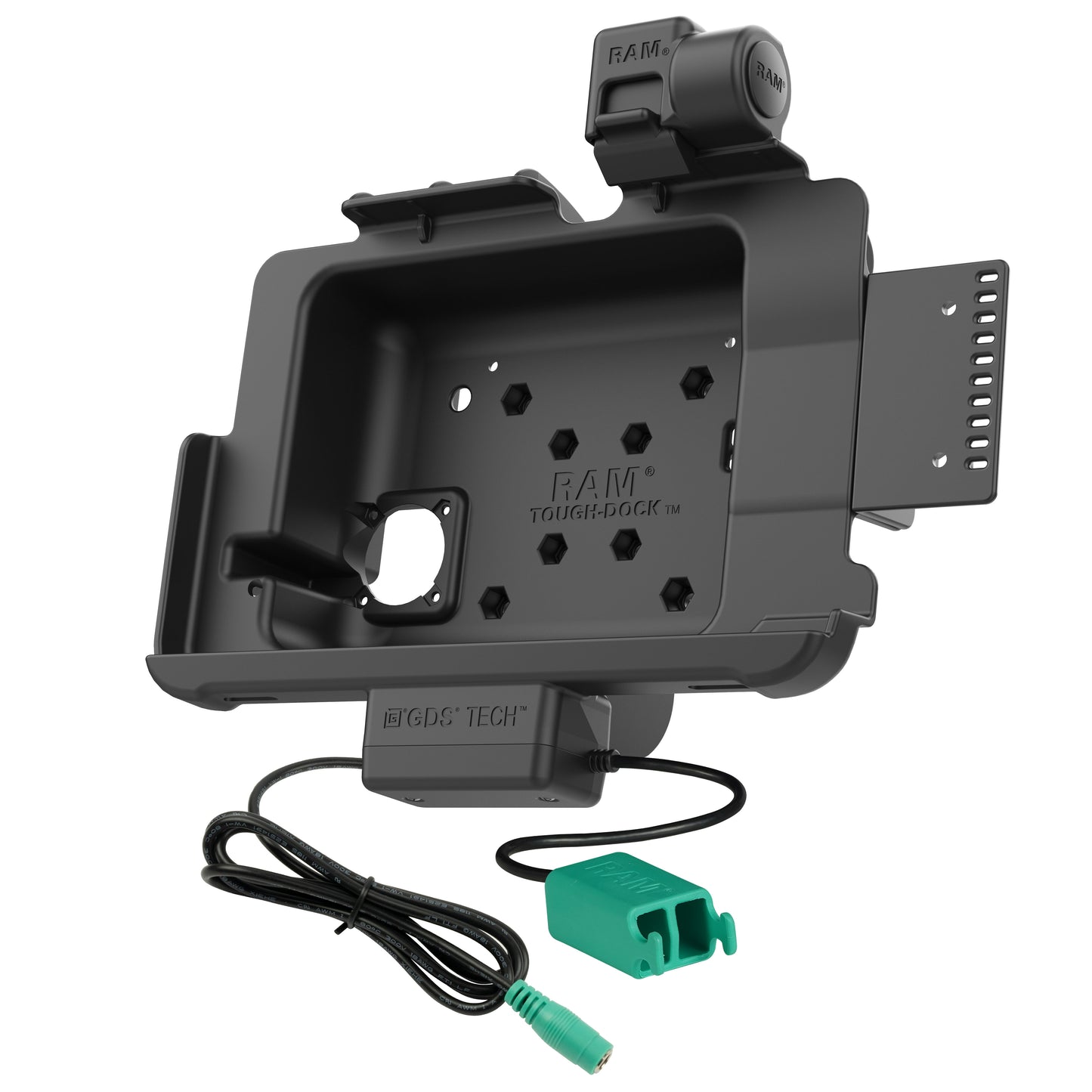

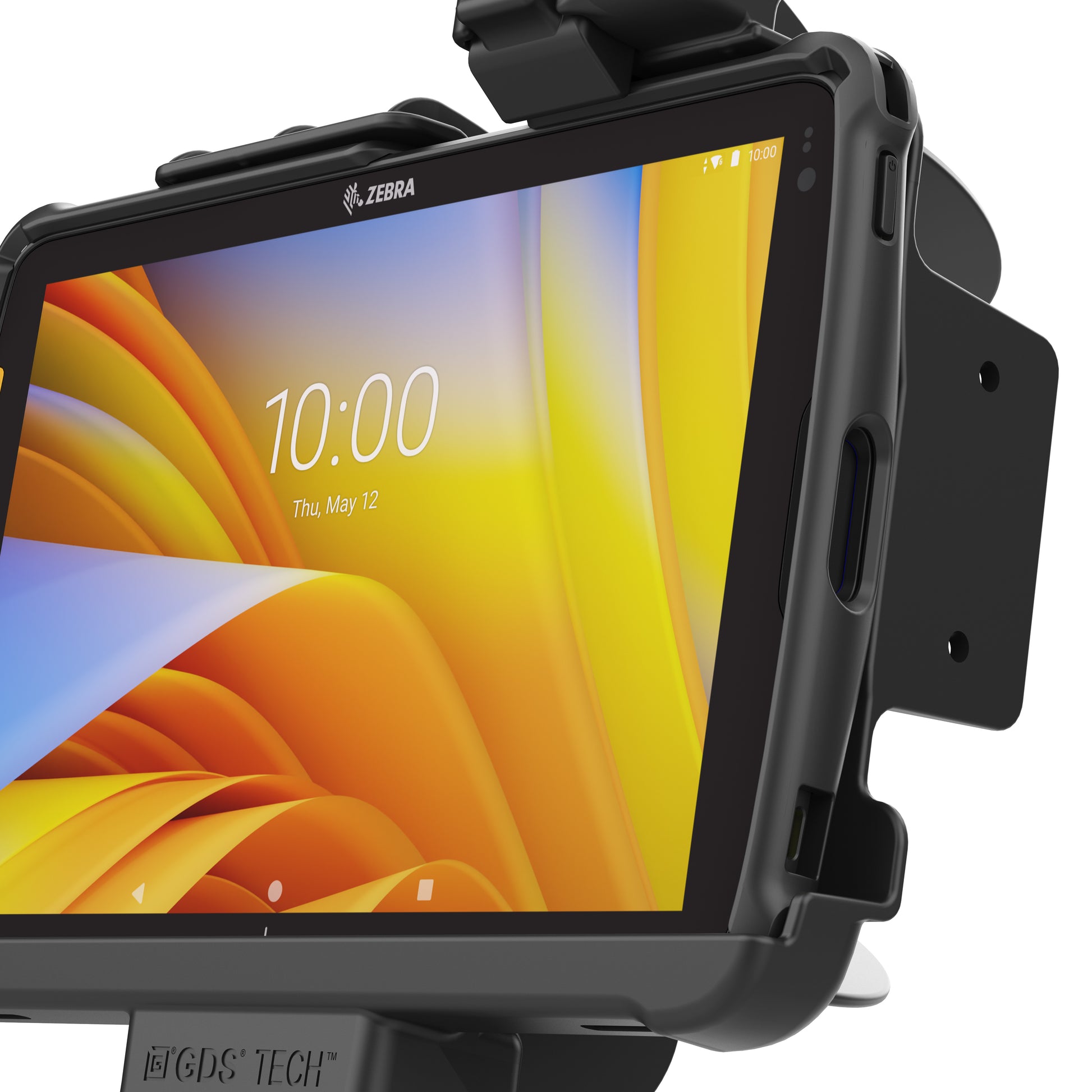

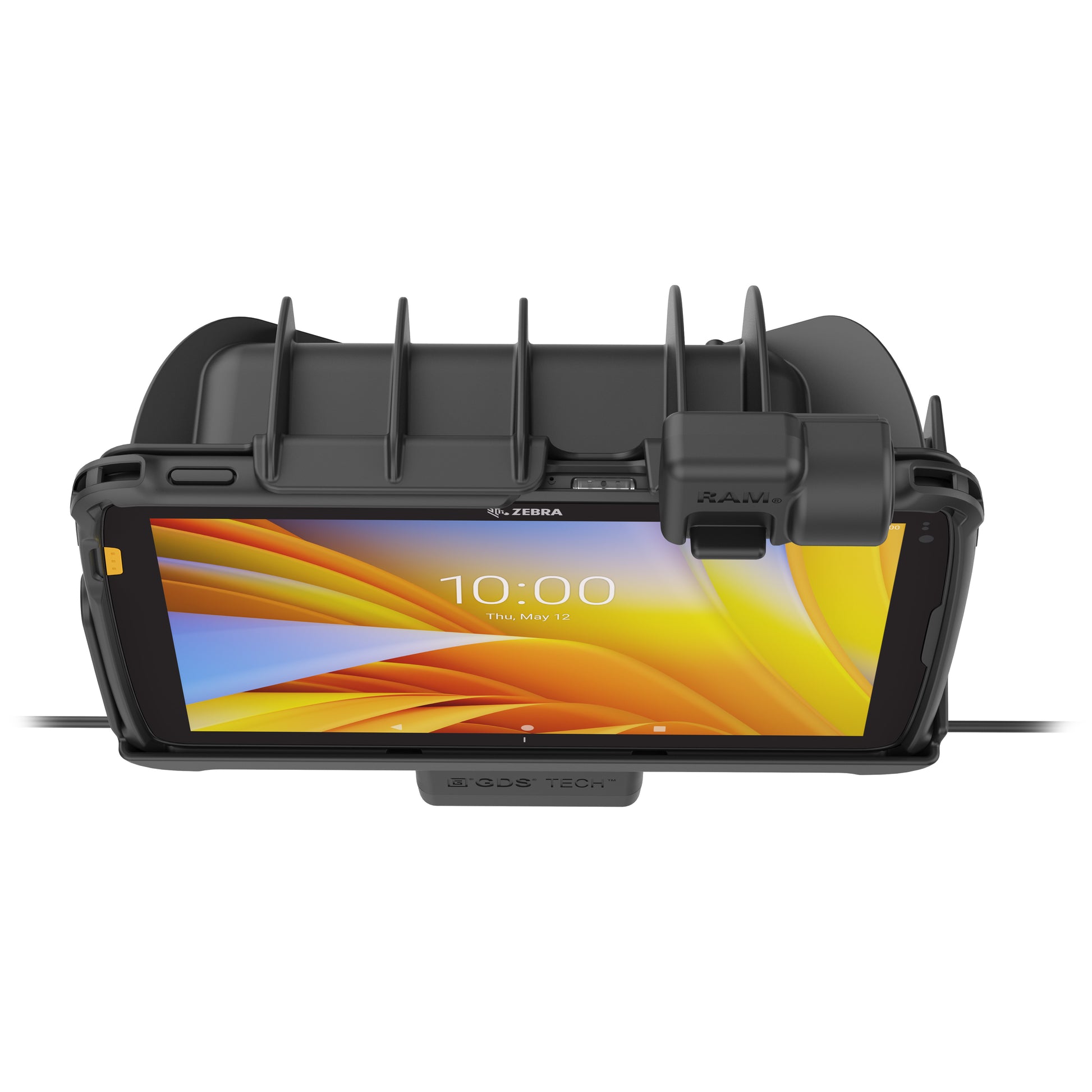

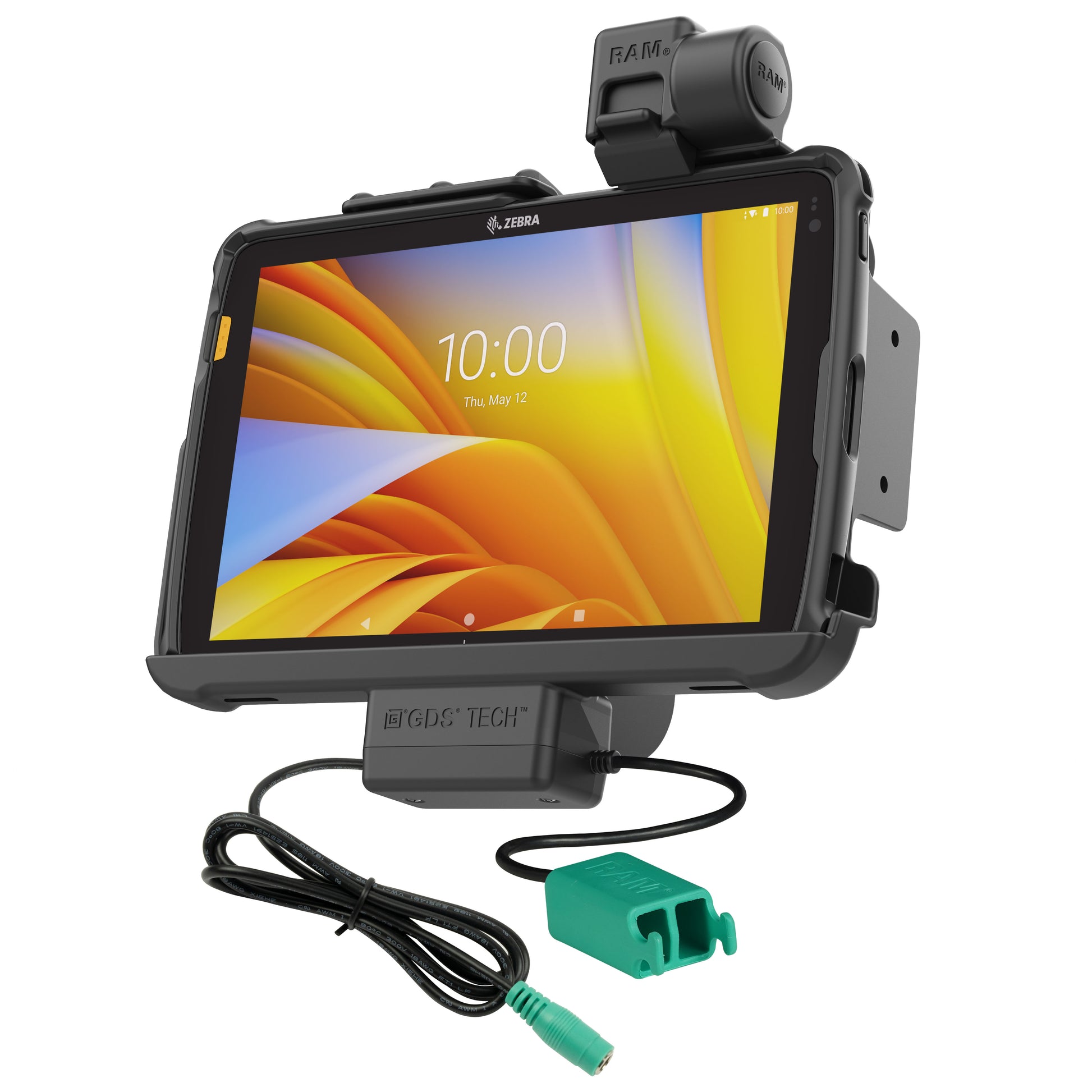

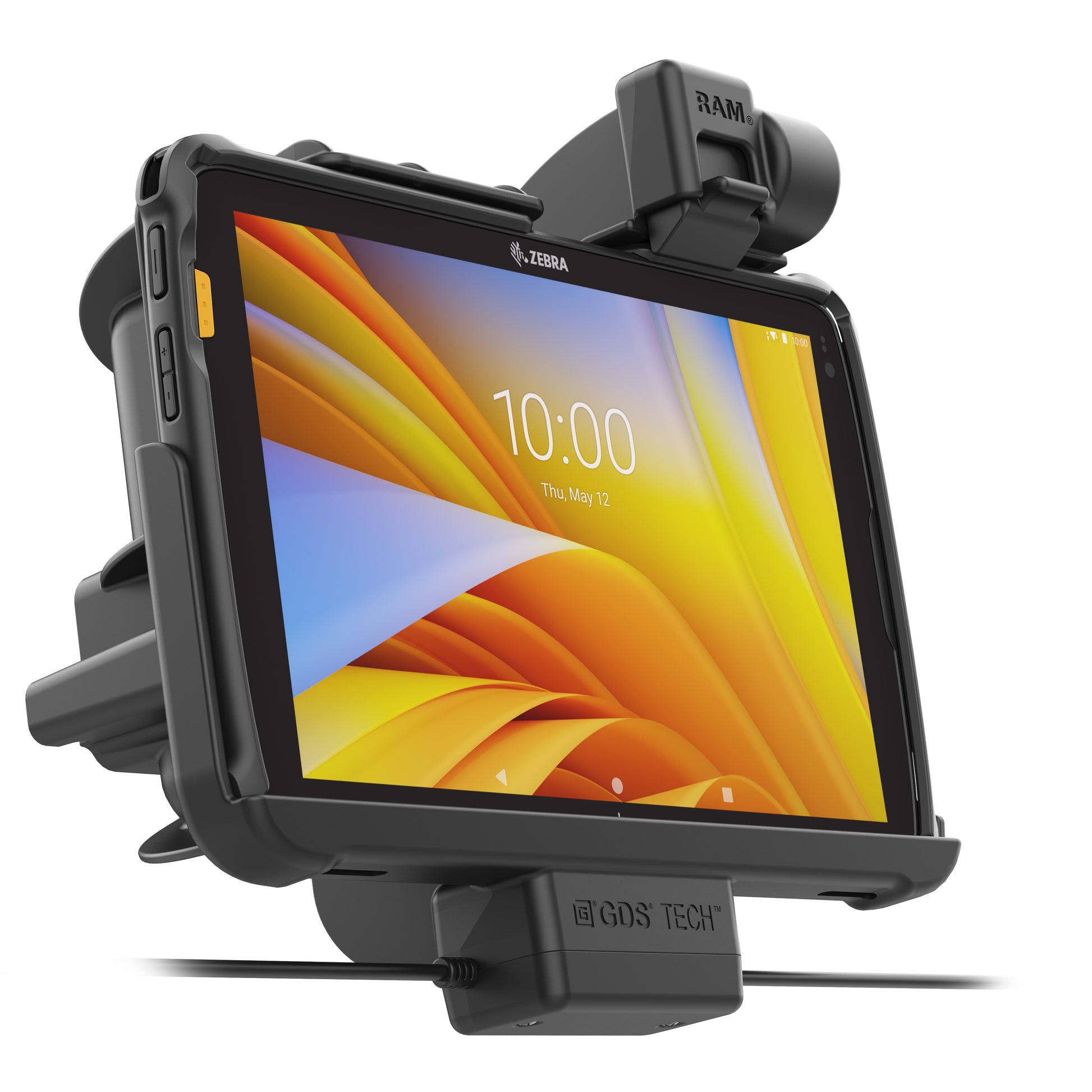

The RAM Tough-Dock Power + Dual USB with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
Features
Features
- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals

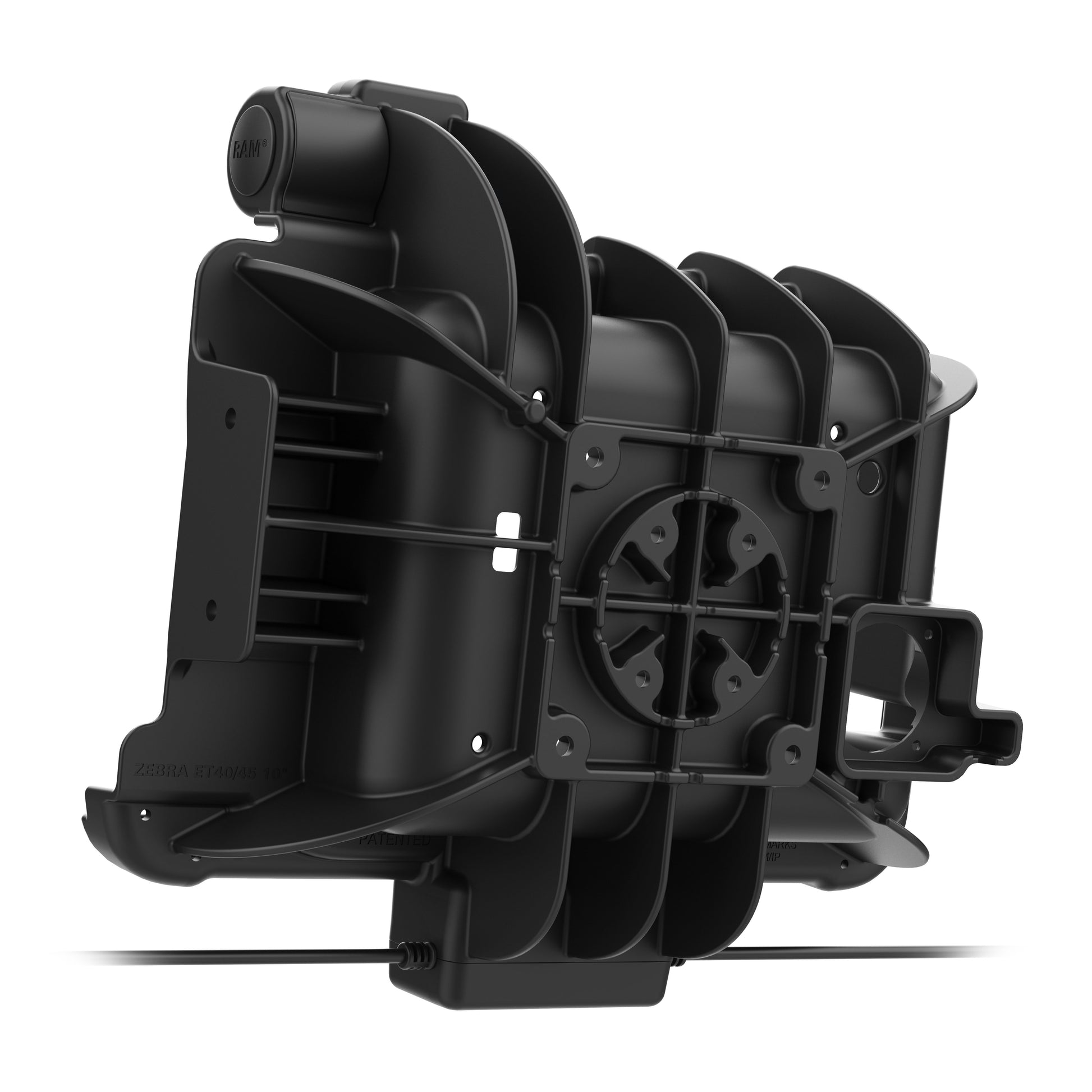

- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 1.66 lb
- Hardware Included: (1) Side bracket for accessory mounting | (4) #8-32 x 5/8” Machine Screws | (2) #8-32 x 1/2” Machine Screws | (6) #8-32 Nylock Nuts | (4) #10-24 x 5/8” Machine Screws | (4) #10-24 Nylock Nuts | (2) Small Cable Ties
- Hole Pattern: 75 x 75mm VESA | 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Input Connector: 5.5mm DC Connector
- Input Cable Length: 1 Meter
- Output Connector: (2) USB 2.0 Type A
- Output Cable Length: 250mm
- Peripheral Output: 900mAh (per port)
- Transfer Speed: 12Mbps
- Certifications: RoHS | WEEE | FCC | CE | ICES | UKCA
Package Content
Package Content
- 1 x RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10" Tablet (RAM-HOL-ZE21PD2NLLU)
