• RAM Mounts Harvester iPad Mount
  • RAM Tab-Tite™ 10" Tablets Cradle (RAM-HOL-TAB-LGU)
  • RAM Tab-Tite™ 10" Tablets Cradle (RAM-HOL-TAB-LGU)
  • RAM D Size 2.25" Ball on Round Plate (RAM-D-254U)
  • RAM D Size Ball Short Length Socket Arm (RAM-D-201U-C)
  • RAM 3.68" Dia Round Plate with 2.25" Ball (RAM-D-202U)
1 6

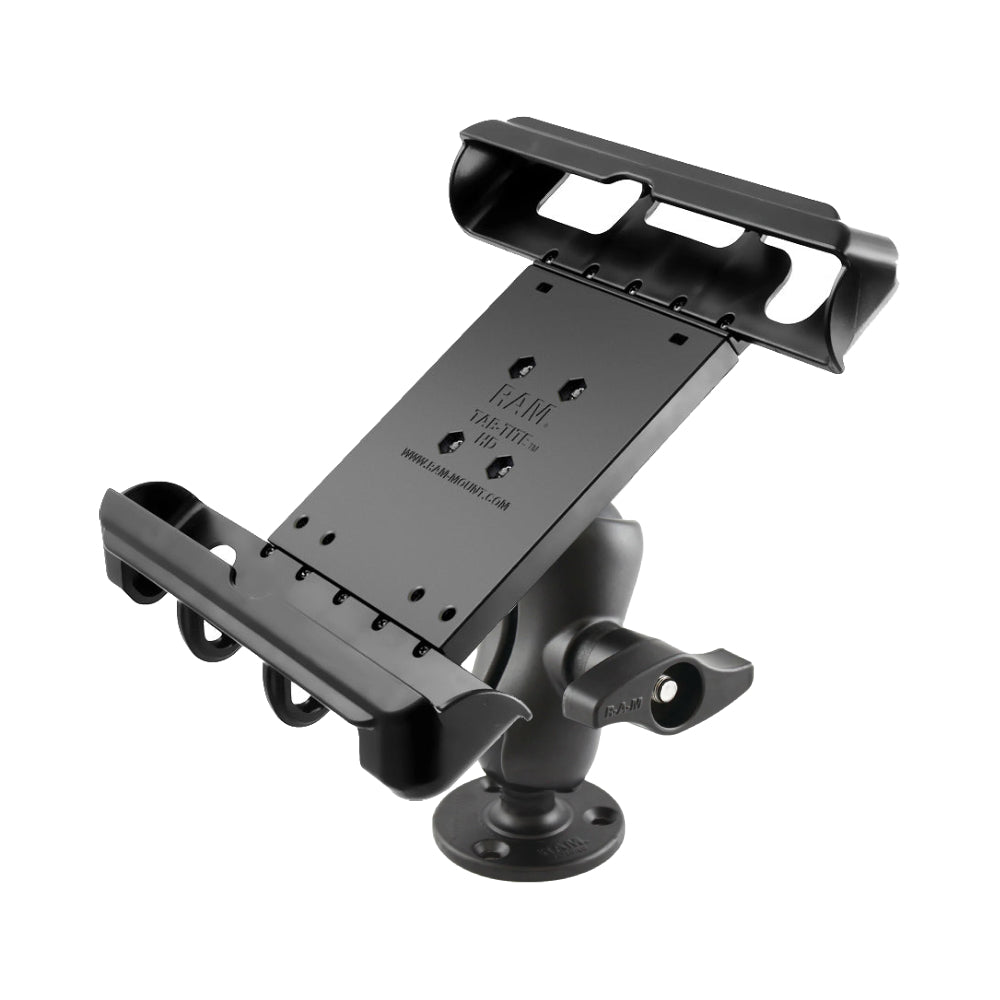

RAM® Mounts Harvester iPad Mount

RAM® Mounts Harvester iPad Mount

$277.50 AUD
$277.50 AUD
Sale Sold out
Taxes included.

In Stock - Available for Delivery

The RAM Mounts Harvester iPad Mount is a heavy-duty in-cab tablet mounting solution designed for harvesters, combines, tractors, sprayers, and agricultural machinery that require stable access to an iPad or compatible large tablet during field operations.

Built with genuine RAM Mounts D-Size components, this kit combines a drill-down round plate base, short double socket arm, D-Size AMPS plate, and RAM® Tab-Tite large tablet holder. The RAM-D-202U base provides a secure fixed mounting point on a suitable flat surface, while the RAM-D-201U-C short arm helps keep the tablet positioned close to the mounting point for a lower-profile installation. The RAM-D-254U AMPS plate connects the D-size mounting system to the RAM-HOL-TAB-LGU tablet holder, creating a strong and adjustable setup for compatible iPads and large tablets.

Designed for demanding agricultural cabins, this mount is ideal for GPS guidance, field mapping, yield monitoring, job management, telematics, farm management apps, route planning, and hands-free tablet visibility during long harvesting and fieldwork days. Before ordering, check your iPad or tablet dimensions, including any case, against the RAM-HOL-TAB-LGU holder fit range.

This bundle includes genuine RAM Mounts components curated by Mounts Australia.

Features

  • Heavy-duty iPad and tablet mount for harvesters, combines, tractors, and agricultural machinery
  • Compatible kit using RAM D Size 2.25" ball-and-socket components
  • Drill-down round plate base for secure installation on suitable flat surfaces
  • Short D-size double socket arm for a strong, lower-profile mounting setup
  • RAM Tab-Tite holder supports compatible large tablets and selected iPad models
  • AMPS plate connects the D-size arm to the tablet holder
  • Adjustable positioning for improved screen visibility and operator access
  • Suitable for GPS guidance, yield monitoring, field mapping, and telematics
  • Spring-loaded tablet holder allows easy device loading and removal
  • Recommended for rugged farm cabins where vibration resistance and stable positioning are important

Tech Specs

  • iPad Mount Components: RAM-D-202U + RAM-D-201U-C + RAM-HOL-TAB-LGU + RAM-D-254U
  • Mounting Base: RAM-D-202U large round drill-down plate with ball
  • Base Plate Size: 3.68" diameter
  • Base Ball Size: D Size 2.25"
  • Arm: RAM-D-201U-C short double socket arm
  • Arm Ball Size: D Size 2.25"
  • Arm Dimensions:
    • Overall Length: 5.1"
    • Socket-to-Socket Length: 3.6"
  • Holder Adaptor: RAM-D-254U round AMPS plate with D Size ball
  • AMPS Plate Size: 2.5" diameter
  • AMPS Hole Pattern: 4-hole AMPS: 1.181" x 1.496"
  • Tablet Holder: RAM-HOL-TAB-LGU Tab-Tite universal holder for large tablets
  • Holder Dimensions:
    • Height Range: 8.5"–11.75"
    • Width Range: 7.75"–8.25"
    • Depth Range: 0.56"–1.1"
  • Holder Hole Pattern: 4-hole AMPS: 1.181" x 1.496"
  • Weight Capacity:
    • Standard Use: 6 lb
    • Heavy-Duty Use: 5 lb
  • Materials:
    • Marine-grade aluminium
    • High-strength composite
    • Stainless steel hardware

Package Content

Components

Recommended Use

Ideal for harvesters, combines, tractors, sprayers, loaders, and agricultural machinery cabins that require a stable iPad or tablet mount for GPS guidance and daily field workflows. Commonly used for precision agriculture apps, field mapping, yield monitoring, telematics, job management, route planning, fleet communication, farm records, and hands-free tablet access in heavy-duty farming environments.
