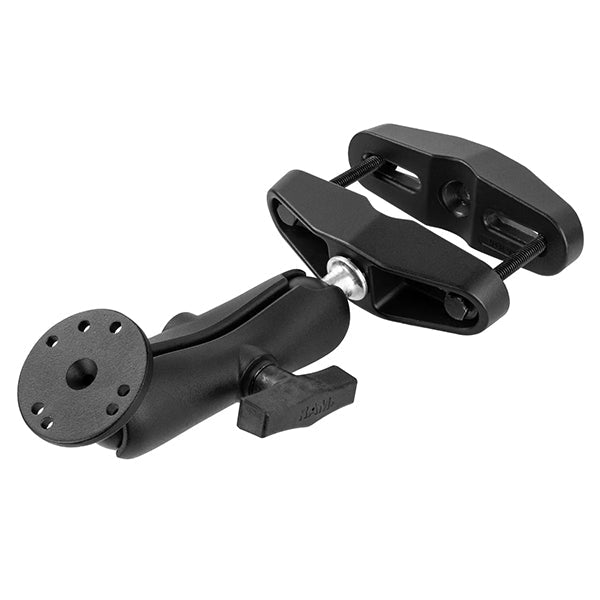

RAM Universal Post Clamp Mount with Round Plate - C Size Medium Arm (RAM-101U-247)
RAM Universal Post Clamp Mount with Round Plate - C Size Medium Arm (RAM-101U-247)
SKU:RAM-101U-247
The RAM Universal Post Clamp Mount with Round Plate - C Size Medium Arm (RAM-101U-247) is a mounting solution designed to secure large handheld devices to forklifts. This kit consists of one (1) double socket C size medium arm, one (1) round plate with C size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.
- 2.5" round plate connects to RAM device holders containing the universal AMPS hole pattern
- Includes 4" clamping base for posts and a medium length, C size RAM®double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
CLAMP RANGE :
1.75" - 4" width
SOCKET TO SOCKET LENGTH :
4.66"
HOLE PATTERN :
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL SIZE :
C Size (1.5")
WEIGHT CAPACITY :
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS :
Marine-grade aluminum
