RAM® Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U)

RAM® Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U)

SKU:RAP-101-PV4-NK-MAG88U

Regular price $142.00 AUD
Regular price Sale price $142.00 AUD
Sale Sold out
Tax included.

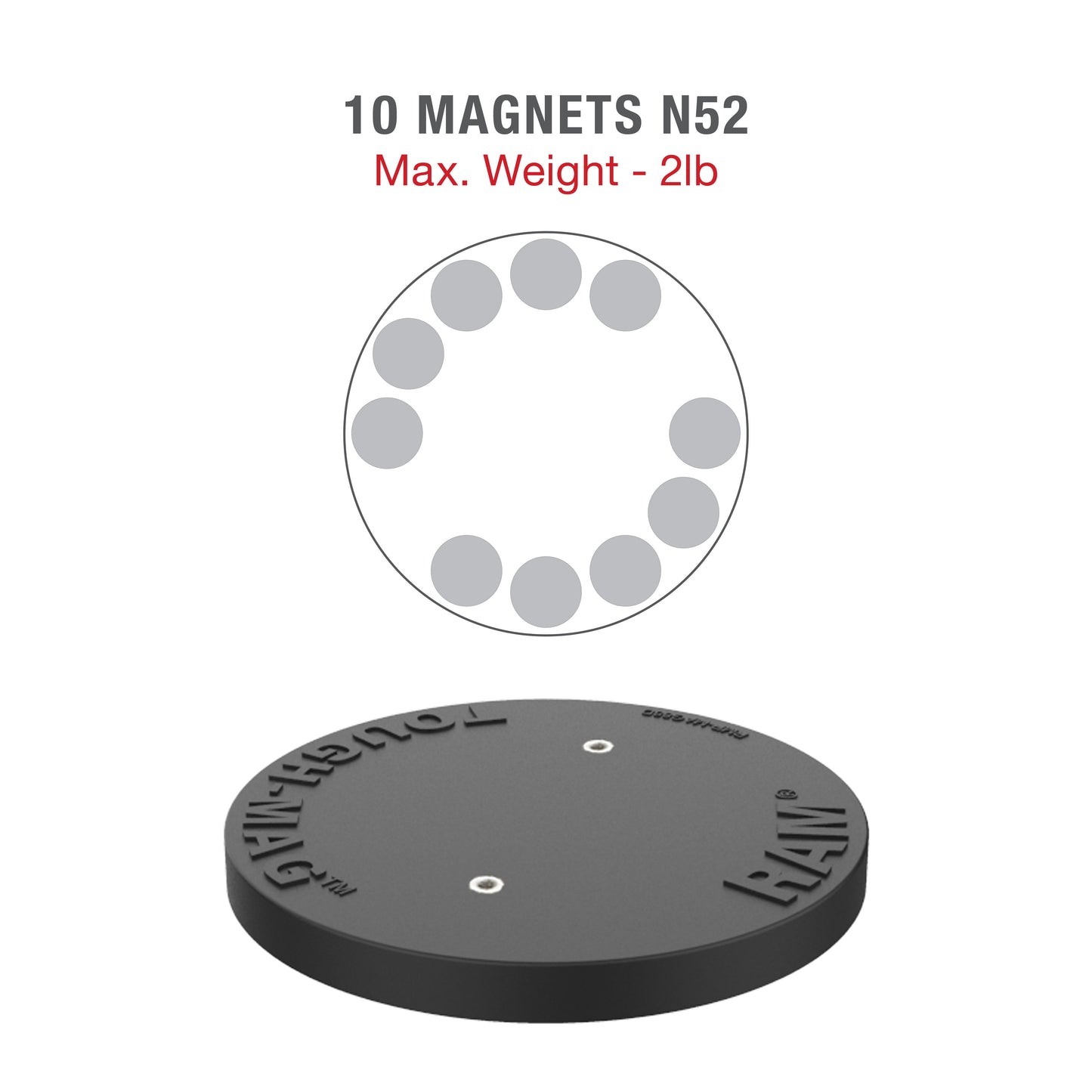

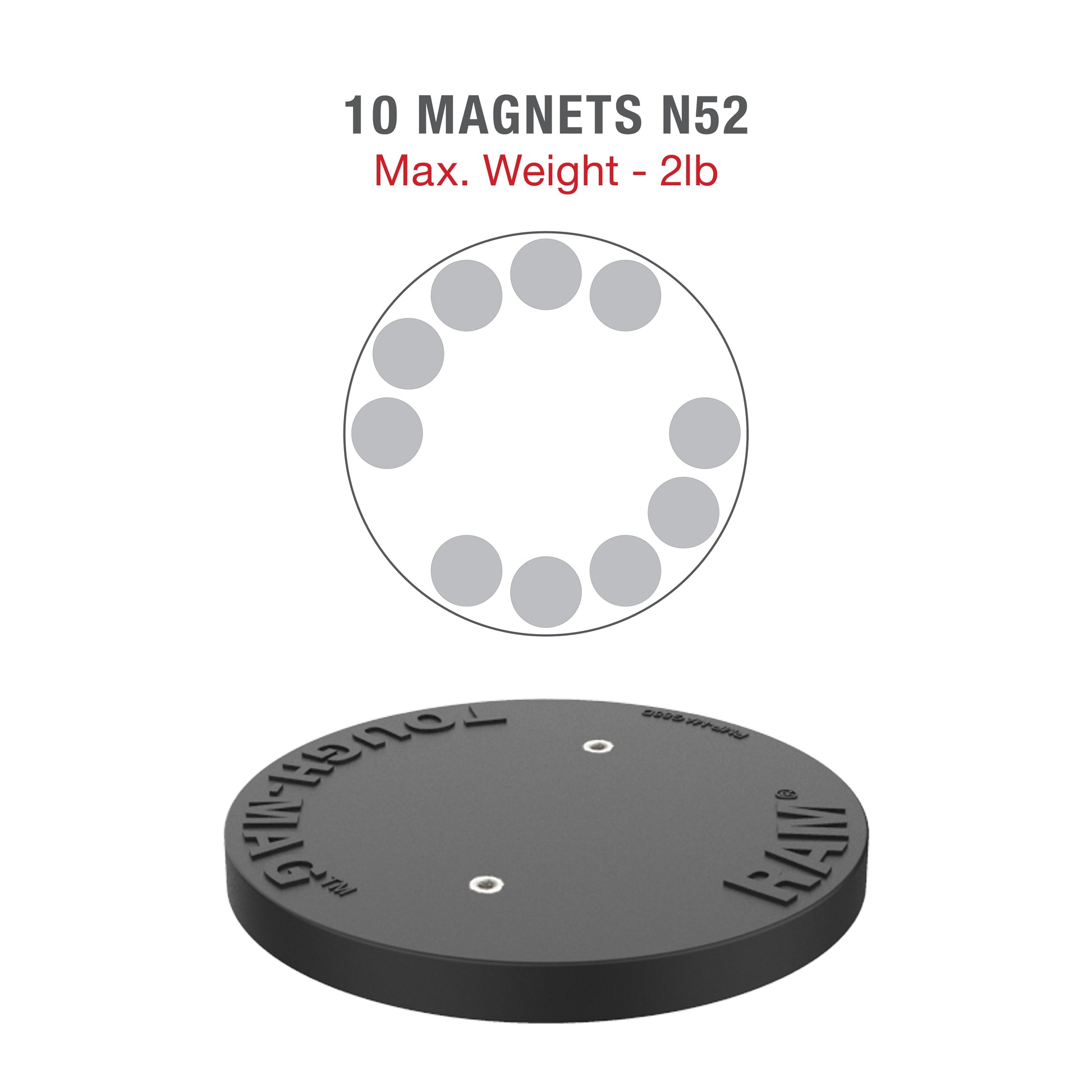

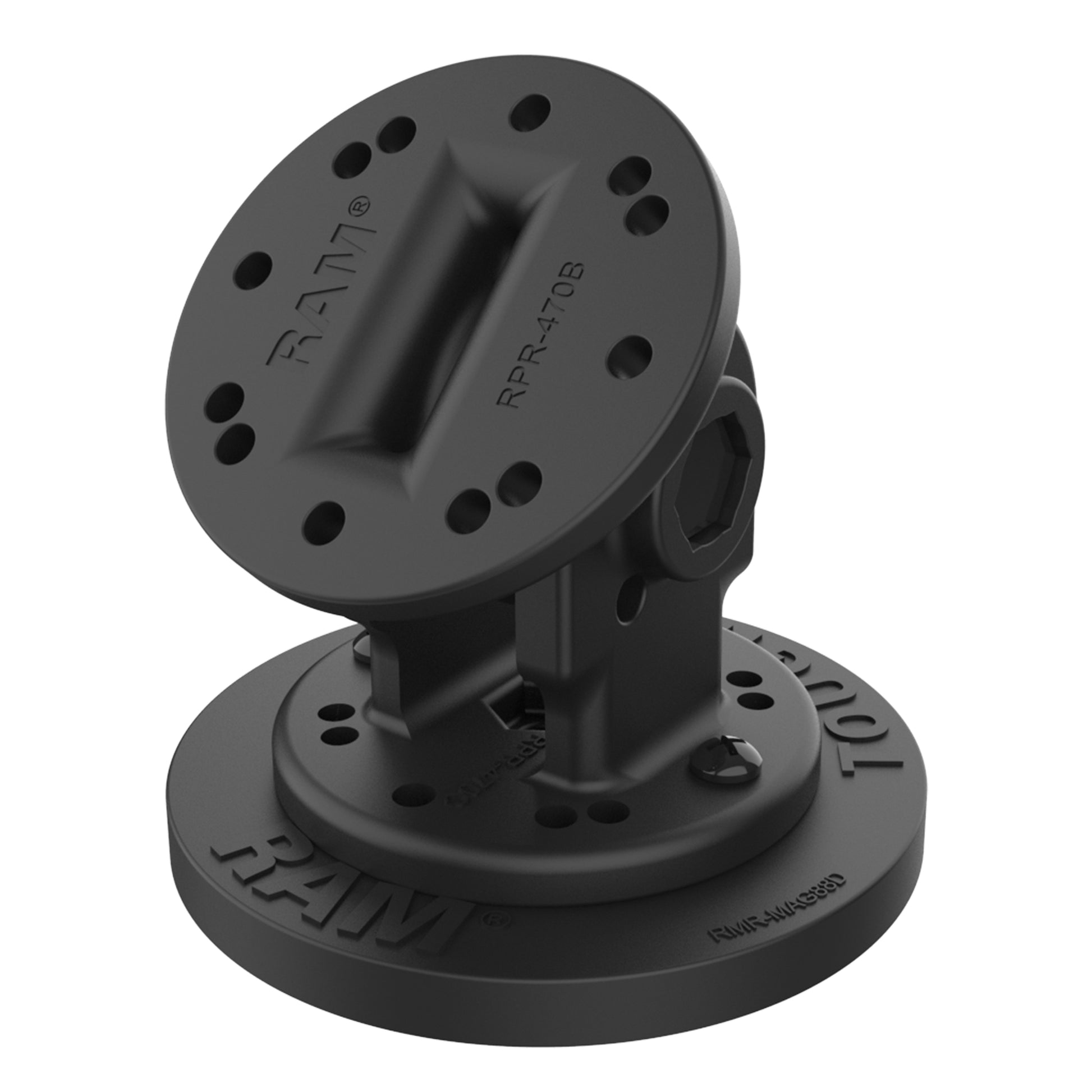

The RAM Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U) is a low-profile, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock while the other end features the RAM Tough-Mag magnetic base. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments. The RAM Tough-Mag base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Features

  • Low-profile, magnetic mounting solution for heavy-duty environments

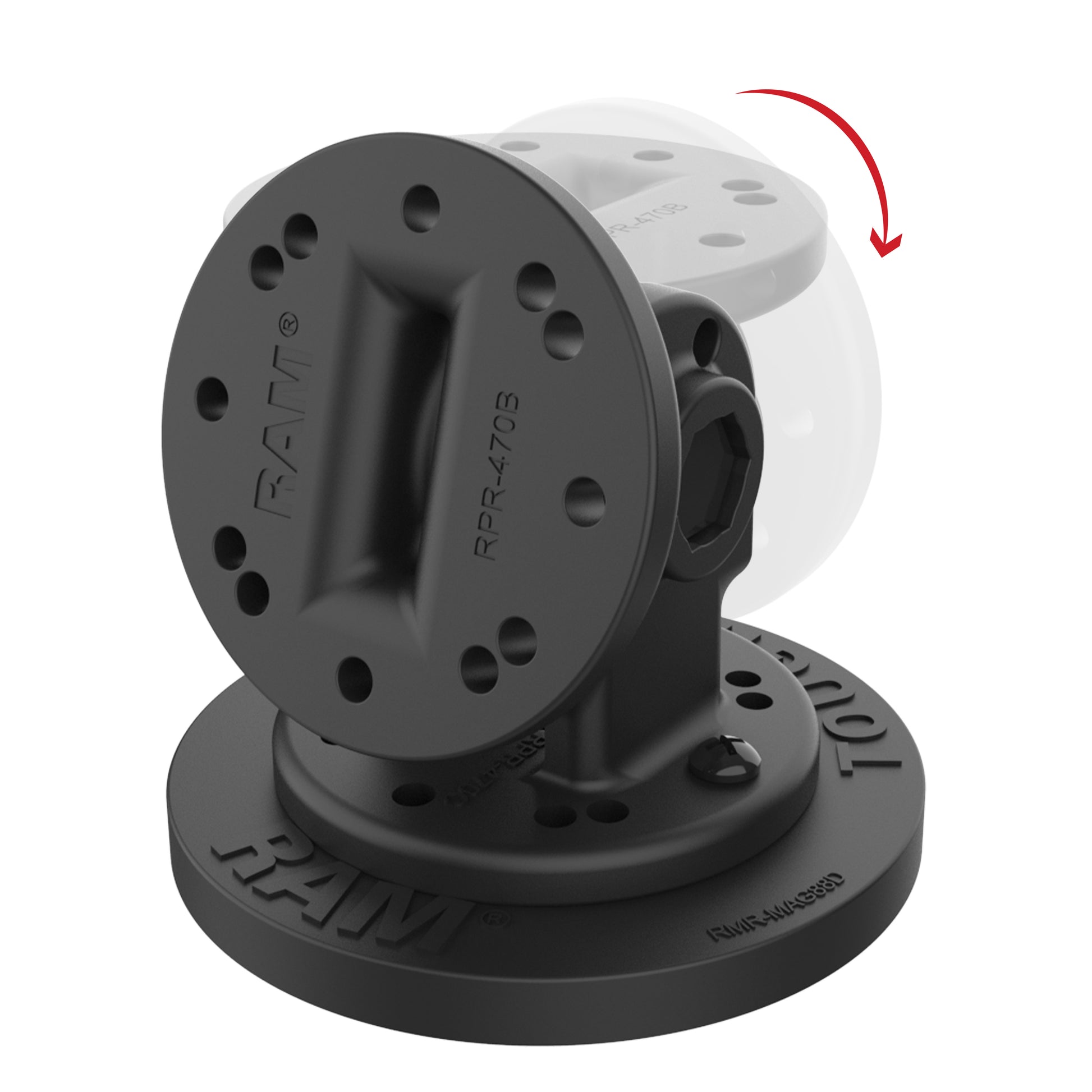

  • Single articulation joint pivots up to 180-degrees; barrel nut provide tamper resistance

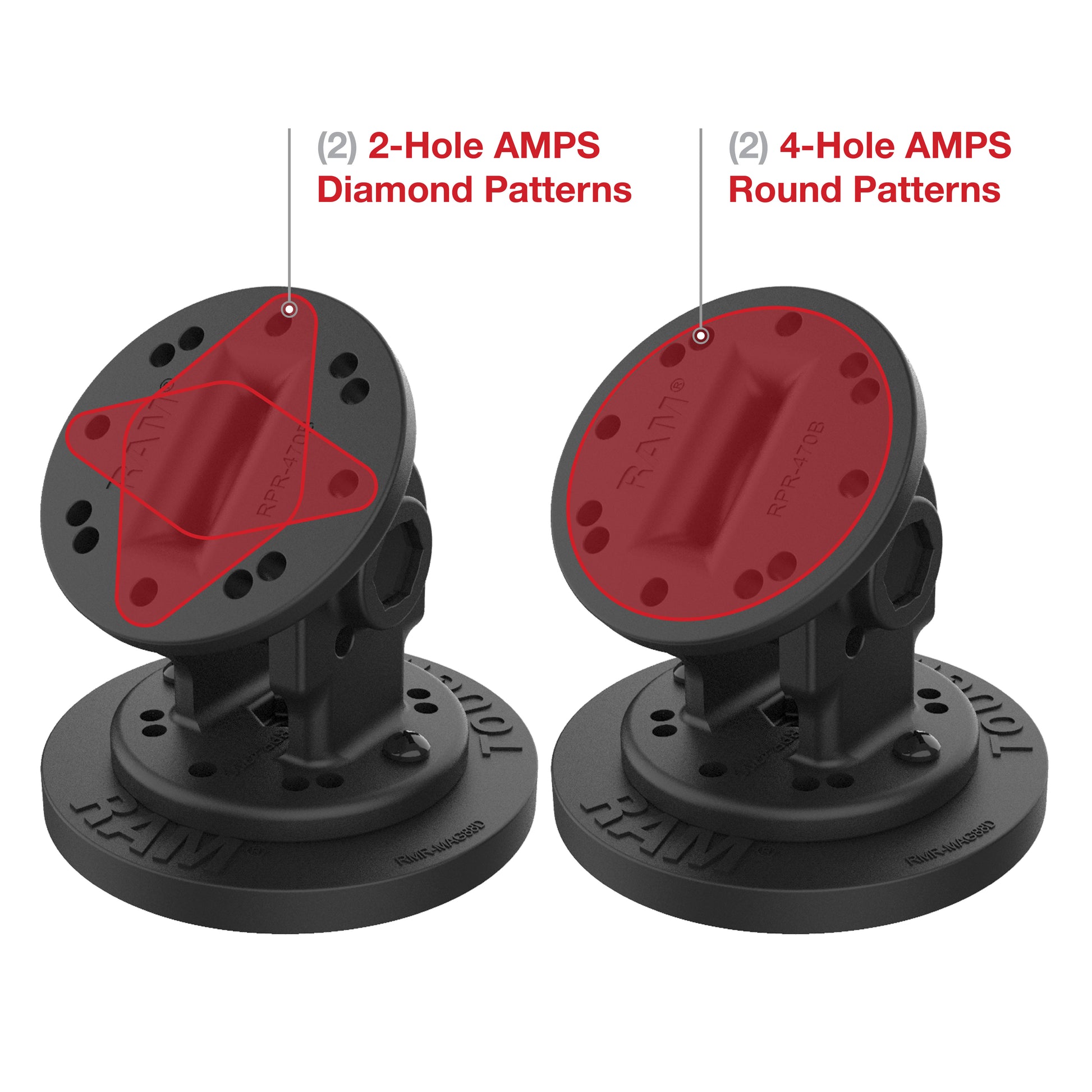

  • One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Tech Specs

  • Product Weight: 0.67 lb

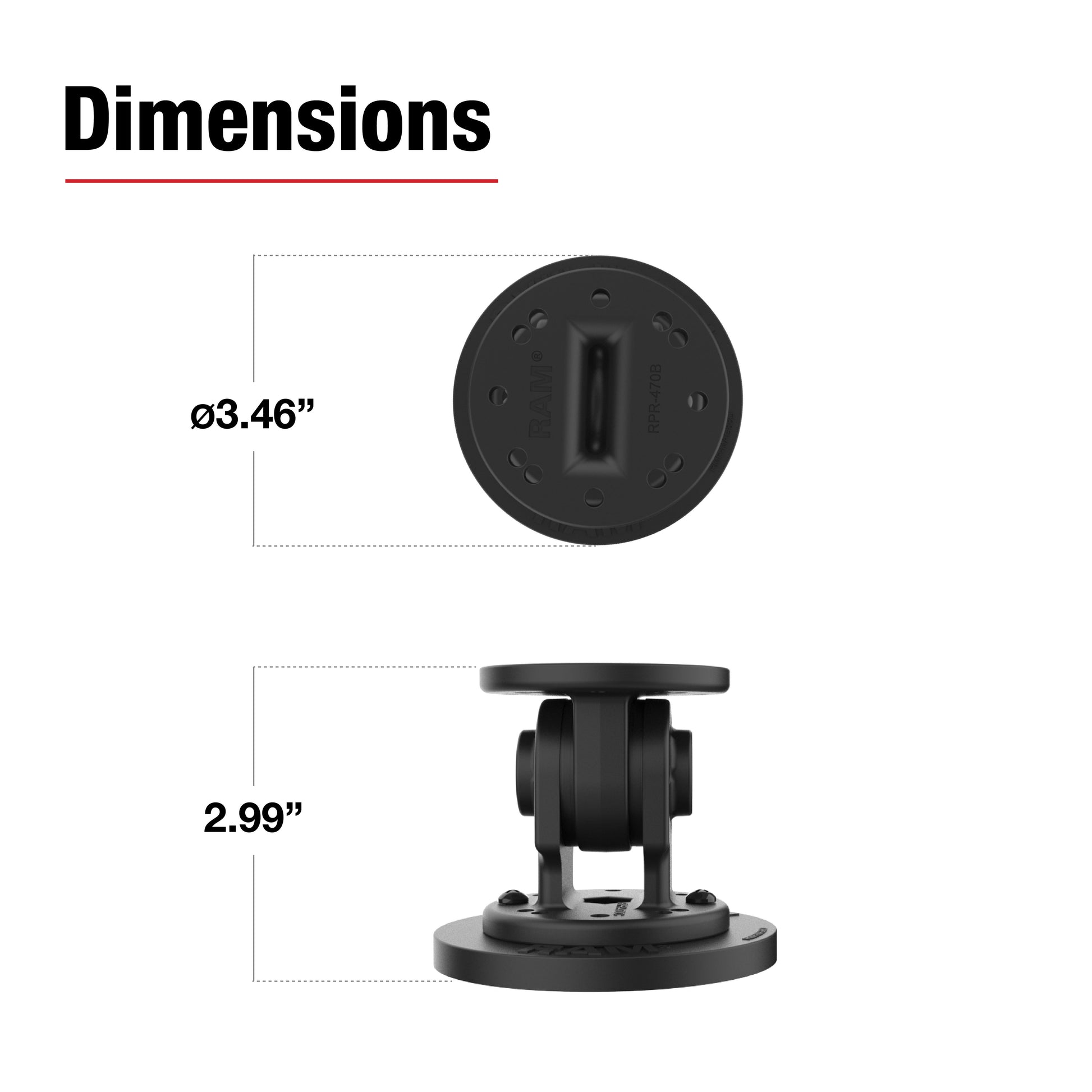

  • Product Dimensions: Overall Height: 2.99"
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496" | 2-Hole AMPS: 1.912"
  • Plate Size: Top Plate: 2.5" Diameter | Magnetic Base: 3.46" Diameter
  • Materials: High strength composite
  • Packaging Type: Poly Bag

Package Content

  • 1 x RAM® Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U)
