RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount (RAM-B-166-UN14W-1)

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount (RAM-B-166-UN14W-1)

RAM-B-166-UN14W-1

$308.00 AUD
$308.00 AUD
Sale Sold out
Tax included.

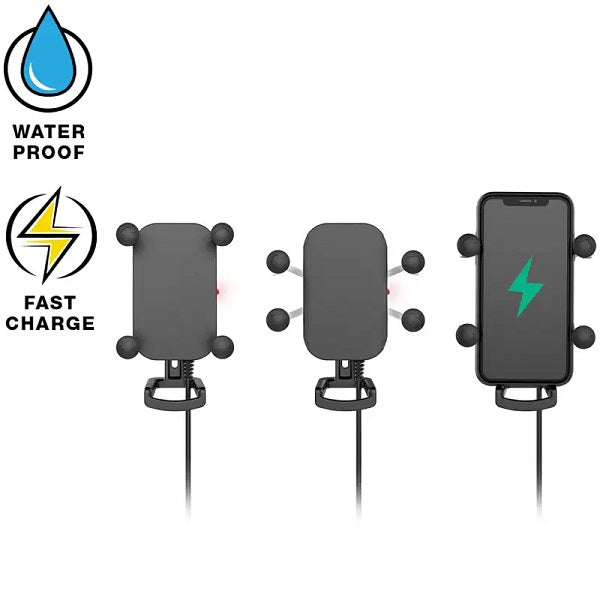

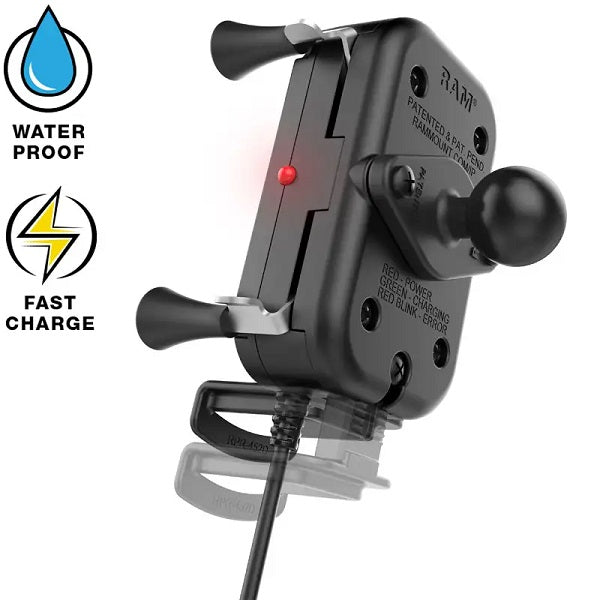

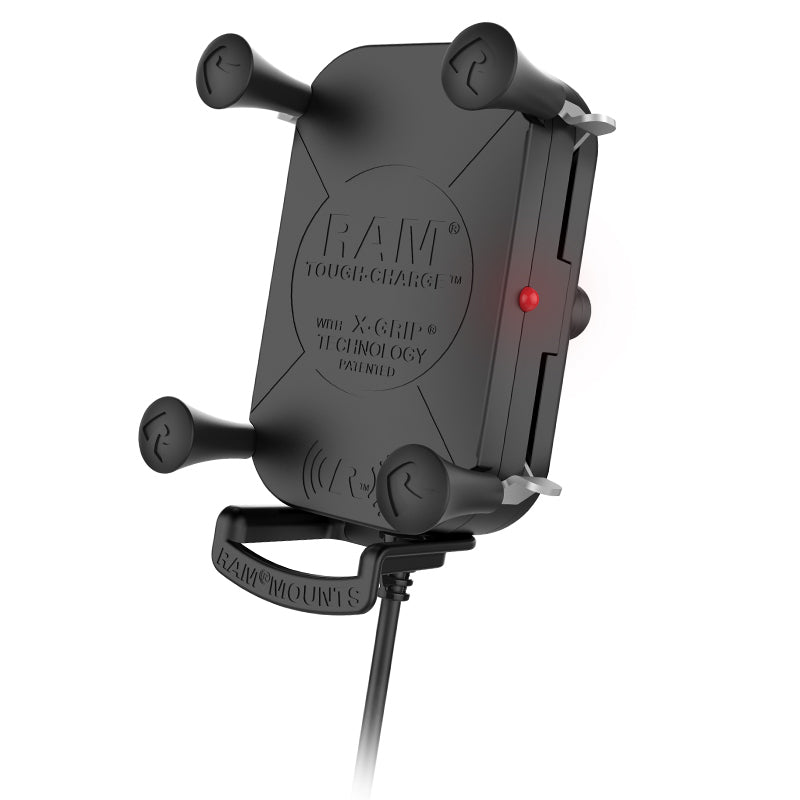

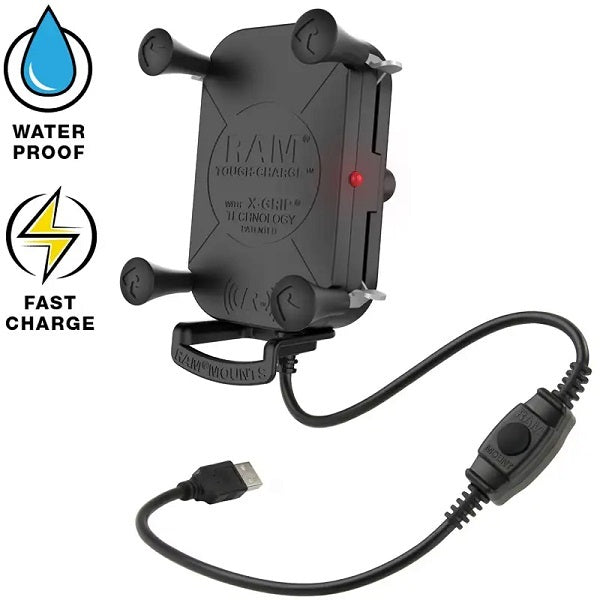

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi-compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless suction cup kit includes a B-size diamond base featuring a 1” rubber ball, medium-length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

  • Waterproof Qi-compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output
  • Kit for vehicles includes a wireless charging cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
  • Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by a lifetime warranty, RAM® electronics backed by a 1-year warranty with proof of purchase required

Features & Specs:
  • Holder Dimension Height Range: 5.625" - 6.625"
  • Holder Dimension Max Width: 3.125"
  • Holder Dimension Max Depth: .7"
  • Suction Size: 3.3" Diameter
  • Socket-to-Socket Length: 3"
  • Ball/Socket Size: B Size (1")
  • Weight Capacity Standard Use: 2 lbs
  • Weight Capacity Heavy-Duty Use: 1 lb
  • Materials: Marine-grade aluminum, High strength composite, Stainless steel
  • Input Power: 5V-2A; 9V-1.67A
  • Output: 15W
  • Conversion Efficiency: 85% Max
  • Maximum Case Thickness: 6mm
  • Working Frequency: 110-205KHZ
  • Product Standard: WPC v.1.2.4
  • Qi Compatible
  • Compatible with QC2.0/QC3.0 power supplies
  • Connector Type: USB Type-A Male
  • Input Cable Length: 20" with optional 1.2M extension cable
  • Compliance: Over-current protection short circuit protection and over-temperature protection
  • Certifications: FCC, IC, KC, CE, e-Mark, WEEE, RCM, and RoHS Compliant
  • Weight: 1.65 lbs.
  • Warranty Status: 1 year warranty
  • Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities such as the Apple iPhone 7 or Samsung Galaxy S5.

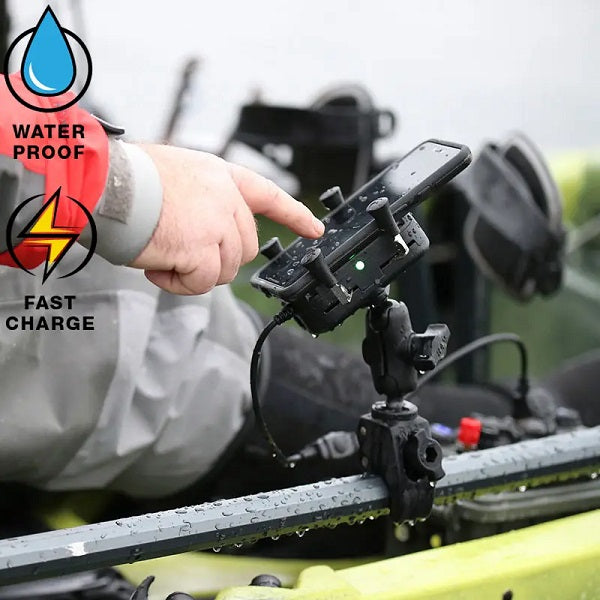

Additional Information: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void the warranty.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

The size of the case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.

This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standards today up to 15W.

Package Content:

  • 1 x RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount (RAM-B-166-UN14W-1)
Compatibility:
  • Apple: iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max
  • Blackberry: Evolve X
  • Blackview: BV9900, BV9900 Pro
  • Google: Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL
  • Huawei: Mate 20 Pro, P30 Pro
  • LG: G6, G6+, G7 ThinQ, G8 ThinQ, G8S ThinQ, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ
  • Nokia: 8 Sirocco, 9 PureView
  • Razer: Phone 2
  • Samsung: Galaxy Note 5, Galaxy Note 8, Galaxy Note 9, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note20, Galaxy Note20 Ultra, Galaxy S10, Galaxy S10 5G, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 Ultra 5G, Galaxy S6, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8, Galaxy S8+, Galaxy S8 Active, Galaxy S9, Galaxy S9+
  • Sony: Xperia XZ2, Xperia XZ2 Compact, Xperia XZ3
  • Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3
  • ZTE: Axon 10 Pro, Axon 9 Pro
