Tough-Dock Powere Dual USB Data Zebra ET4x 8" Tablet
Tough-Dock Powere Dual USB Data Zebra ET4x 8" Tablet
SKU:RAM-HOL-ZE20PD2U

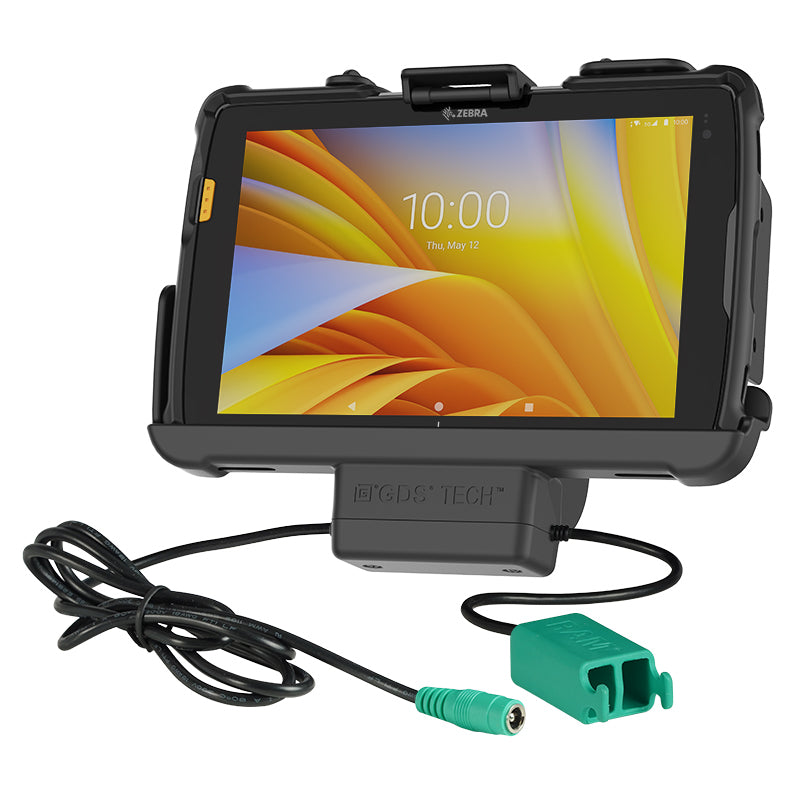

Featuring data and charging capabilities, the RAM® Tough-Dock™ for Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
Features
Features
- RAM® Tough-Dock™ with EZ-Roll'r™ design with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with Rugged Frame via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Hole Pattern: 75 x 75mm VESA
- 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Input Connector: 5.5mm DC Connector
- Input Cable Length: 1 Meter
- Output Connector: (2) USB 2.0 Type A
- Output Cable Length: 250mm
- Peripheral Output: 900mAh (per port)
- Transfer Speed: 12Mbps
- Certifications: RoHS, WEEE, FCC, CE, ICES, UKCA
- Warranty: 3 year warranty
- Weight: 1.27 lb
- Additional Information: To support the tablet without the Rugged Frame, see RAP-INSERT-ZE20U. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCK-ZE20PD2U.
Package Content
Package Content
- 1 x Tough-Dock Powere Dual USB Data Zebra ET4x 8" Tablet
